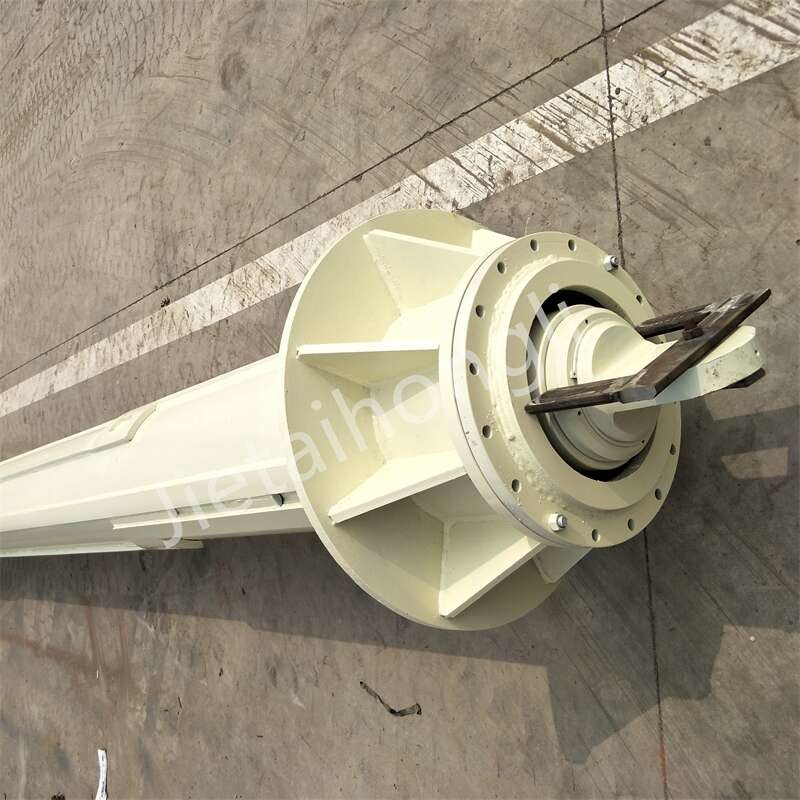

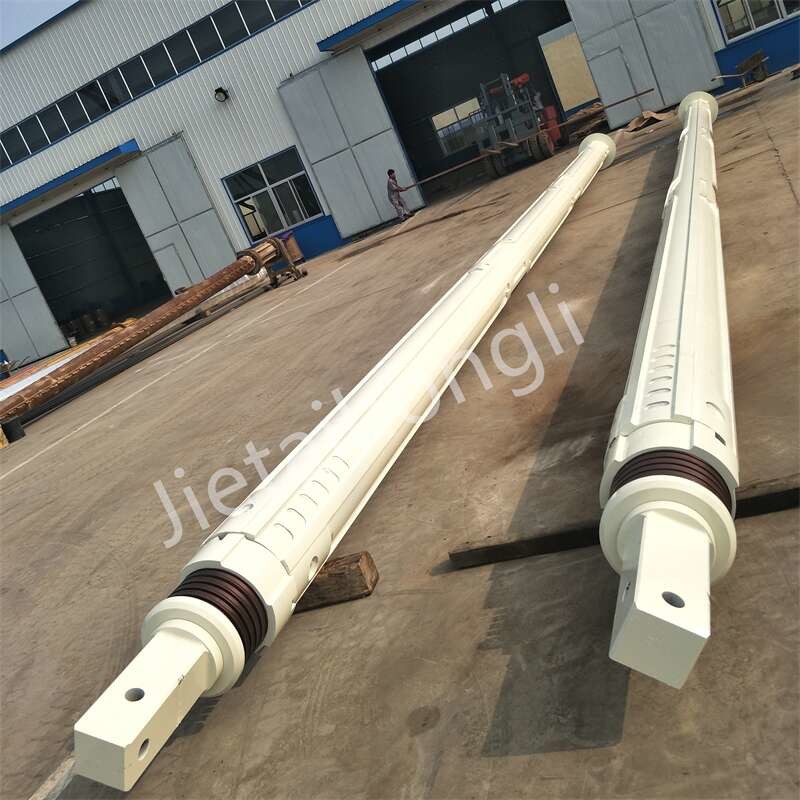

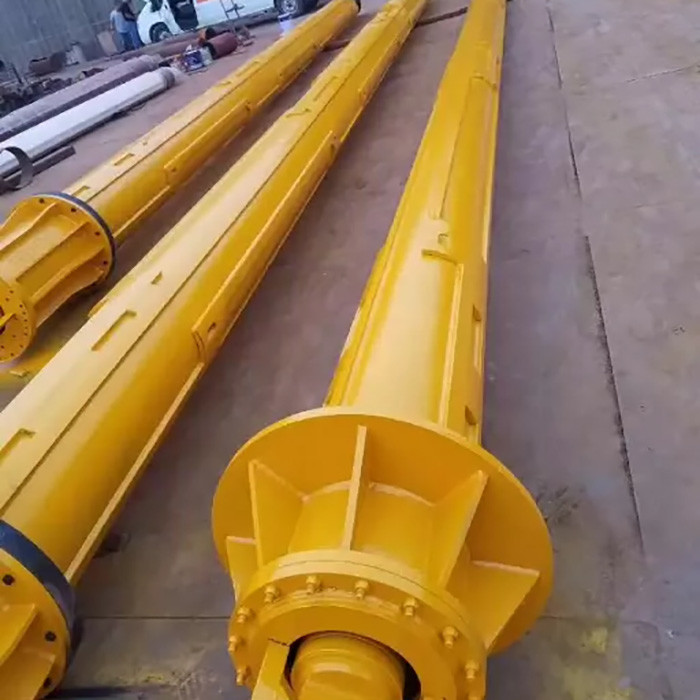

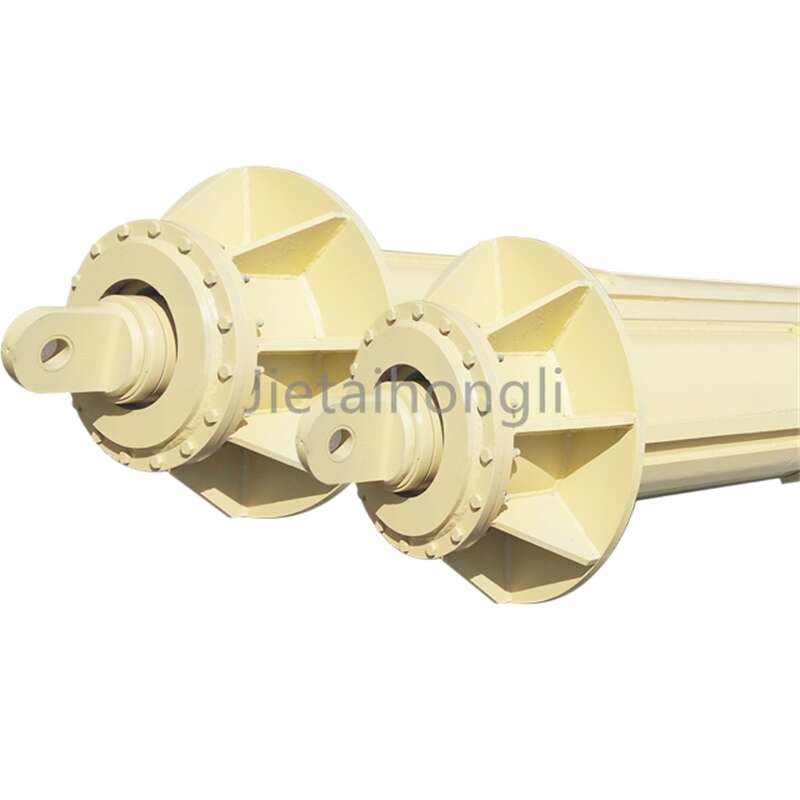

Soilmec, Bauer, Casagrande, Tescar Mechanical Mait Interlocking Kelly bar,Rotary Drilling Kelly Bar
Kelly bar is the key part of a drilling machine, and its quality directly affects the performance of the whole machine. The main purpose of kelly bar is to transfer the torque of rotary drive and crowd pressure of the crowd system to the drilling tool. Based on the rich manufacturing experience and by absorbing the advanced technology both at home and abroad, we can produce first-class kelly bar which can be compared favorably with the imported ones .
We can also provide kelly bar for BAUER, MAIT, IMT, SOILMEC, CASAGRANDE and other foreign brands rotary drilling rig.
Specification
| No. | Diammeter of The First | Sections | Sections | Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | Interlocking | 9-16 | 24-45 | 100 -120 | ||
| 2 | ¢342 | 3 | 4 | Interlocking | 9-16 | 24-45 | 100 -120 | |
| 3 | ¢355 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 100-120 | |
| 4 | ¢368 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 5 | ¢377 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 6 | ¢394 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 7 | ¢406 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 8 | ¢419 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 200-230 | |
| 9 | ¢440 / ¢445 | 3 | 4 | Interlocking | 9-16 | 24 – 58 | 220-260 | |
| 10 | ¢470 | 3 | 4 | Interlocking | 9-16 | 24 – 60 | 220-260 | |
| 11 | ¢482 | 3 | 4 | Interlocking | 9-16 | 24 - 60 | 220-260 | |
| 12 | ¢508 | 3 | 4 | Interlocking | 9-16 | 24 – 68 | 260-360 | |
| 13 | ¢530 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 320-400 |
| 14 | ¢540 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 92 | 320-400 |
| 15 | ¢580 / ¢575 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 360-420 |
| 16 | ¢630 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 102 | 400-500 |
FAQ
1.Are you Factory?
Ans: Yes,we foucs on manufactuer kelly bars for more than 17years old.Our factory locted in Shandong now,own two factories .
