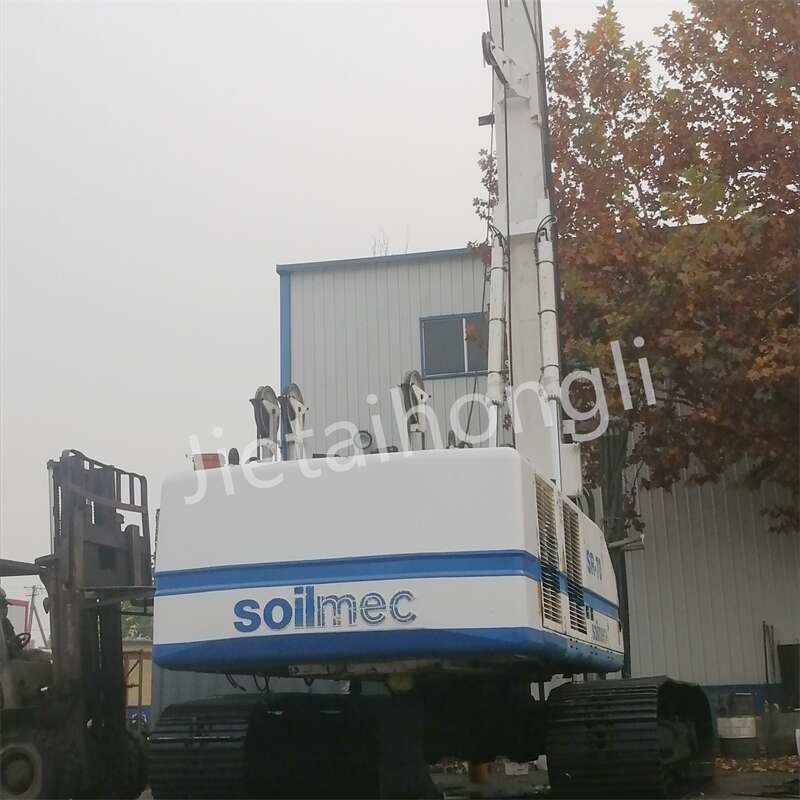

Used Piling Rig Soilmec SR70
Product Description
Specifications
Soilmec SR70 rotary piling rig:
1. high efficient working performance
2. reasonable price
3. top quality service
Soilmec SR70 hydraulic piling machine :
Beijing JIetaihongli we are specialized in selling new rotary drilling rigs, full-rotary drilling rigs and marketing various buckets, supply spare parts; also engages in evaluating and trading second-hand rotary drilling rigs.
MAIN FEATURES:
Carrier: Crawler Type undercarriage w/ expandable tracks
Undercarriage Footprint: Length – 18 ft. (5350 mm) x Width 14 ft. (4600 mm)(Extended)
Operating Weight: 120,000 – 130,000 lbs (60 - 65 Ton Class)
Torque: 126,000 lbft-ft (172 kNm)
Depth: 118 ft. (77 M)
Max. Diameter: 6 ft. (2500 mm)
Optimal Diameter: 36” - 60” (914 mm – 1524 mm)
Material: All
Crowd Pressure: 43,800 lbf. (195 kN)
Tower Height: 70 ft (21.2 Meters)
Technolcal Specifications:
Manufacturer Year:2007
Working Hours :7200
Original :Italy Soilmec
CAT base and engine
Operating weight (approx.) 65 t
Max. diameter 2500 mm
Max depth 77 m
Max torque 190 kNm
Attach with 1 sets of Interlocking kelly bars OD440 *4 *15m
