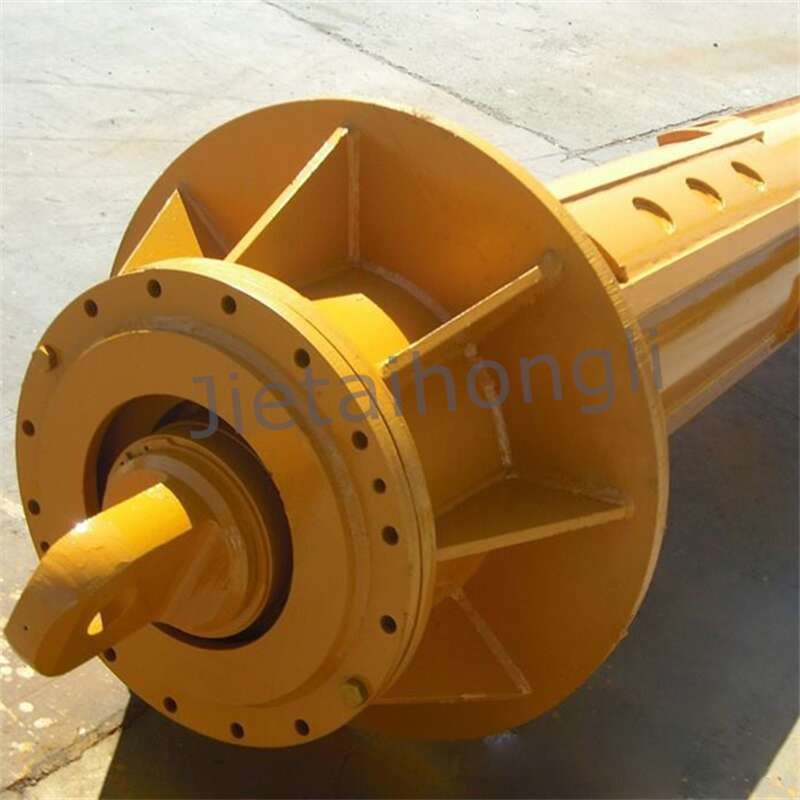

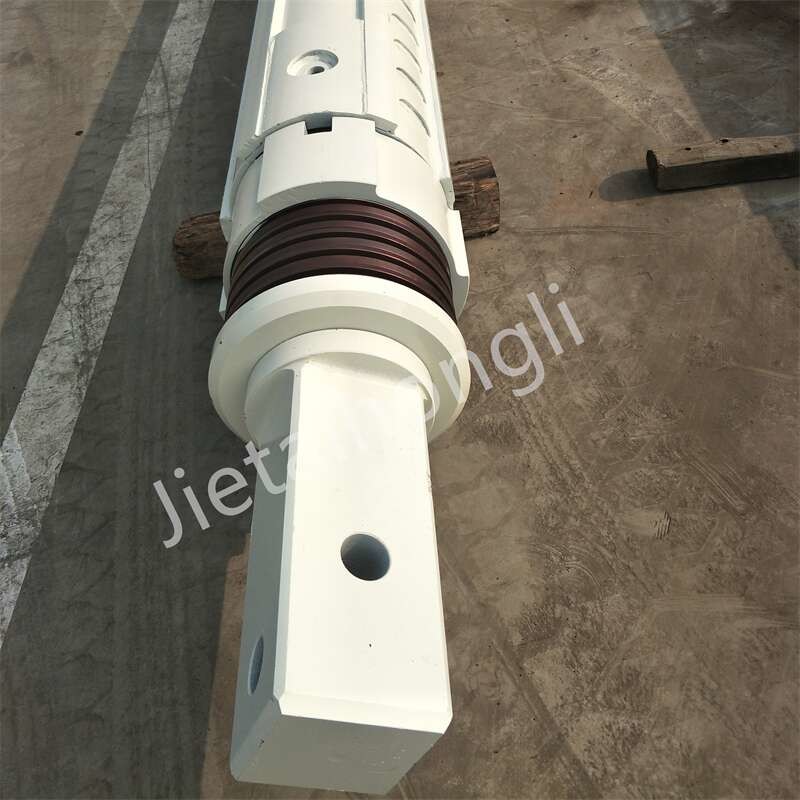

Rotary drilling rig Liebherr LB125 Liebherr LB170 piling rig parts interlock kellybar made by JTHL
let me interoduce our new products (big) multi interlock Kelly bar ,which especially use for hard rock layer construction,unique lock design ,which make this type Kelly bar more efficiency and lower mainterance rate rather than other Kelly bars.And this one have got patent certification .
Specification
| No. | Diammeter of The First | Sections | Sections | Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | Interlocking | 9-16 | 24-45 | 100 -120 | ||
| 2 | ¢342 | 3 | 4 | Interlocking | 9-16 | 24-45 | 100 -120 | |
| 3 | ¢355 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 100-120 | |
| 4 | ¢368 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 5 | ¢377 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 6 | ¢394 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 7 | ¢406 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 8 | ¢419 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 200-230 | |
| 9 | ¢440 / ¢445 | 3 | 4 | Interlocking | 9-16 | 24 – 58 | 220-260 | |
| 10 | ¢470 | 3 | 4 | Interlocking | 9-16 | 24 – 60 | 220-260 | |
| 11 | ¢482 | 3 | 4 | Interlocking | 9-16 | 24 - 60 | 220-260 | |
| 12 | ¢508 | 3 | 4 | Interlocking | 9-16 | 24 – 68 | 260-360 | |
| 13 | ¢530 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 320-400 |
| 14 | ¢540 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 92 | 320-400 |
| 15 | ¢580 / ¢575 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 360-420 |
| 16 | ¢630 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 102 | 400-500 |
FAQ
1.Are you Factory?
Ans: Yes,we foucs on manufactuer kelly bars for more than 17years old.Our factory locted in Shandong now,own two factories .
