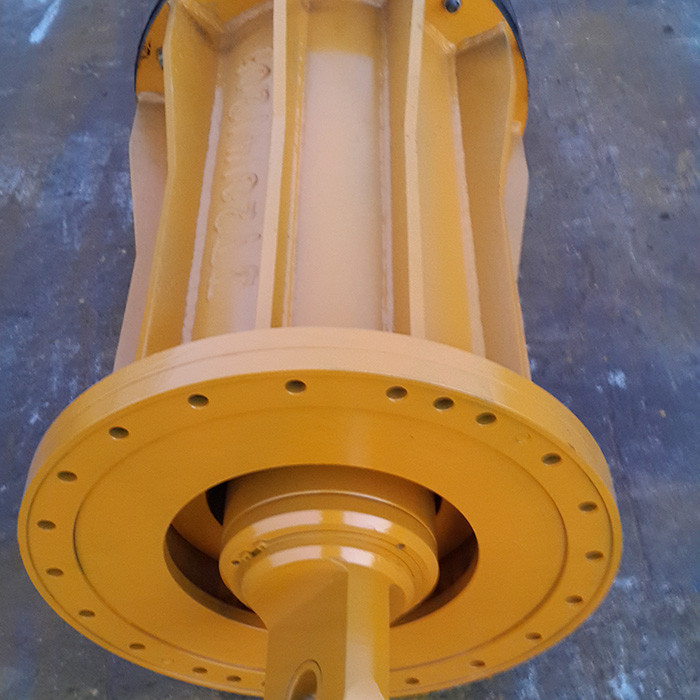

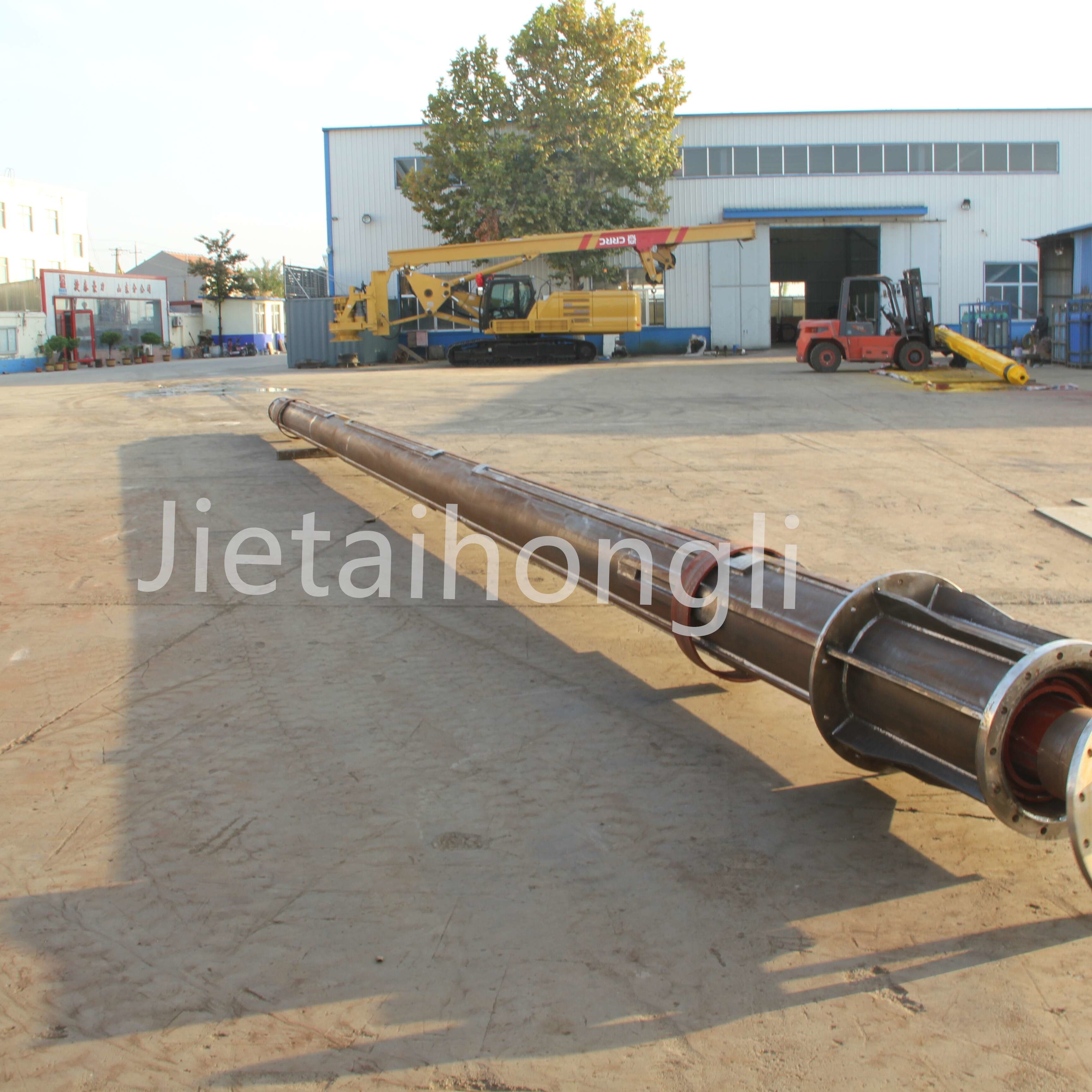

Kelly Bar Bauer/Soilmec/Sany/Casagrande Rotary Drilling Rig Kelly Bar High Quality
1. Material: Q345B or 35CrMo
2.Type: Interlocking kelly bar, friction kelly bar, combined interlocking and friction kelly bar, square kelly bar etc customized as per requirement
3.Application: Suit for international CFA rigs as Bauer, Soilmec, Mait, Casagrande etc other brand piling rigs;
4.Customer Feedback: Applied on various drilling rigs and highly praised by domestic and abroad customers

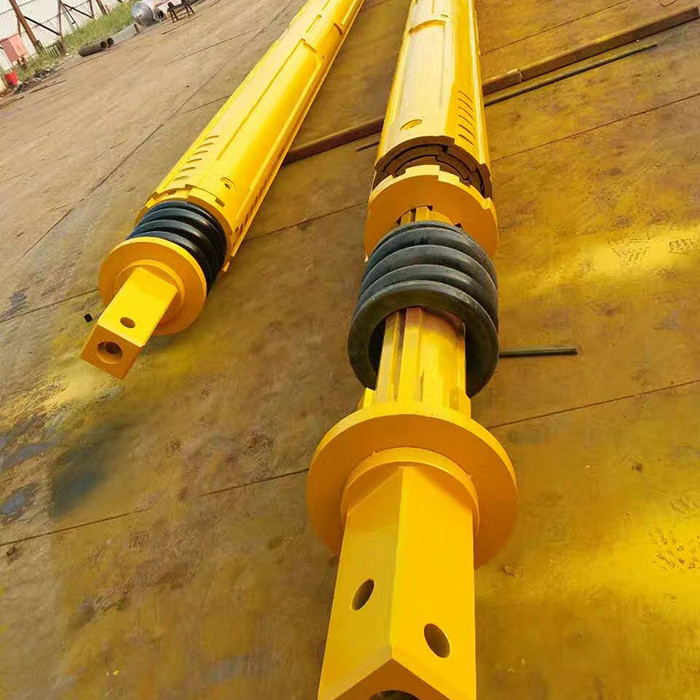

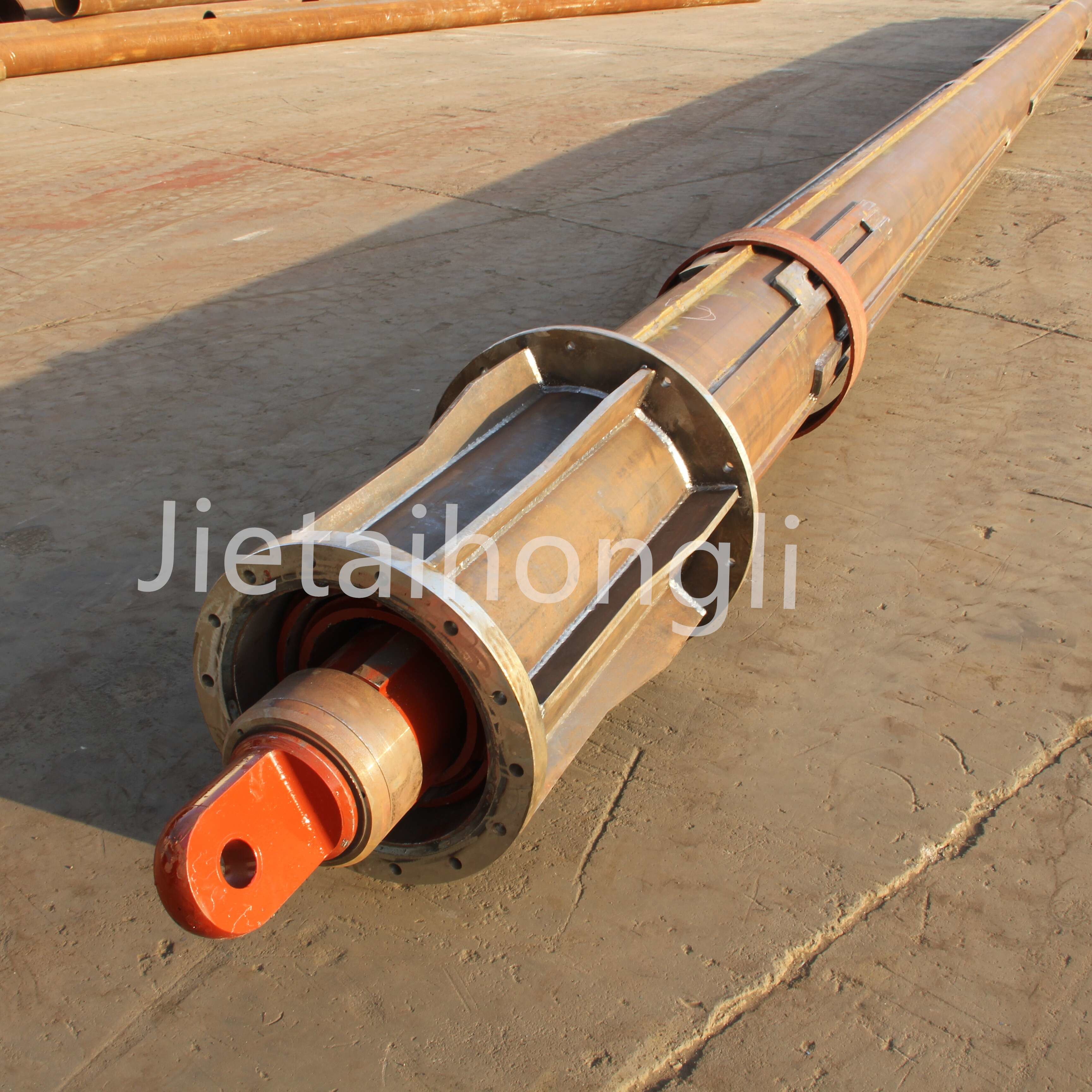

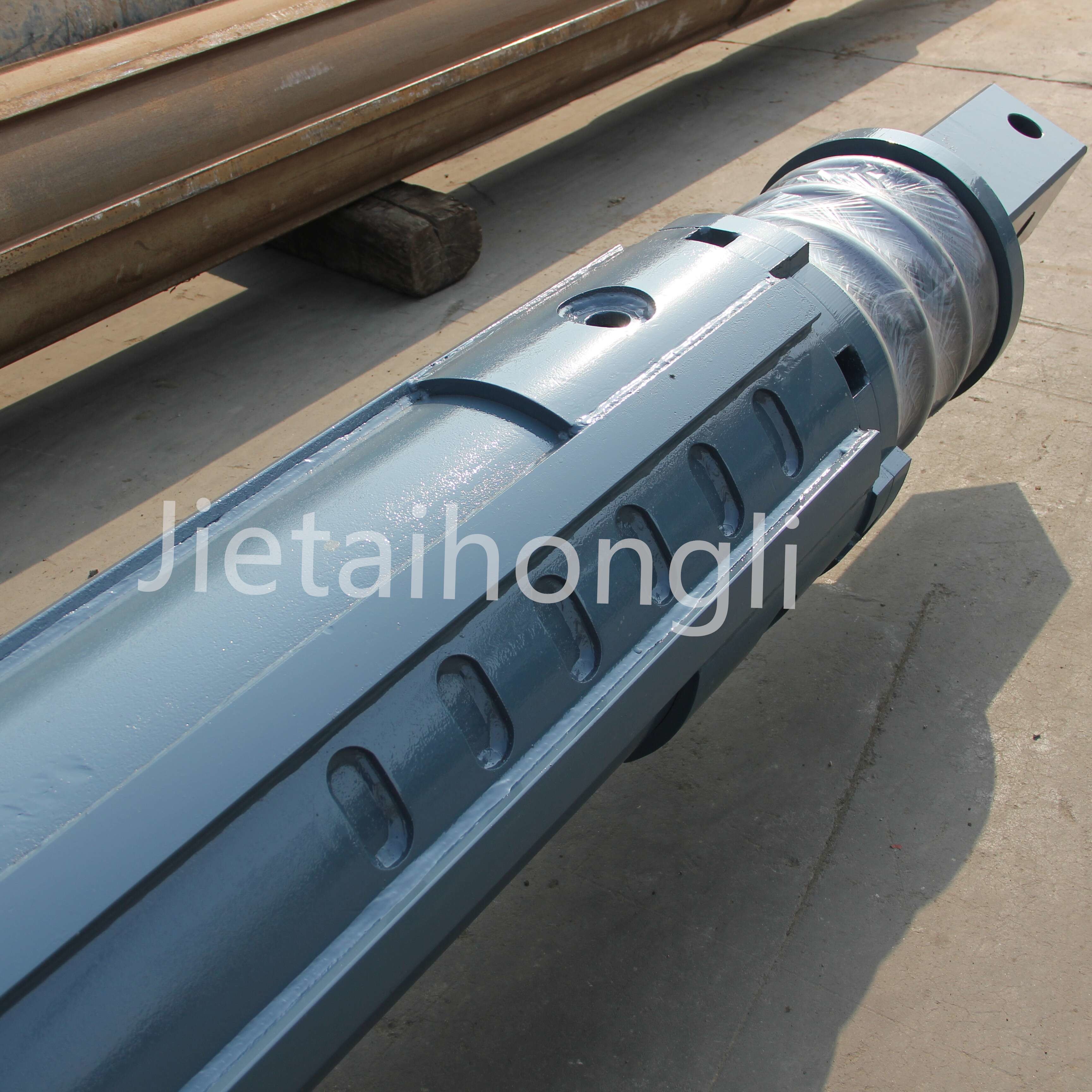

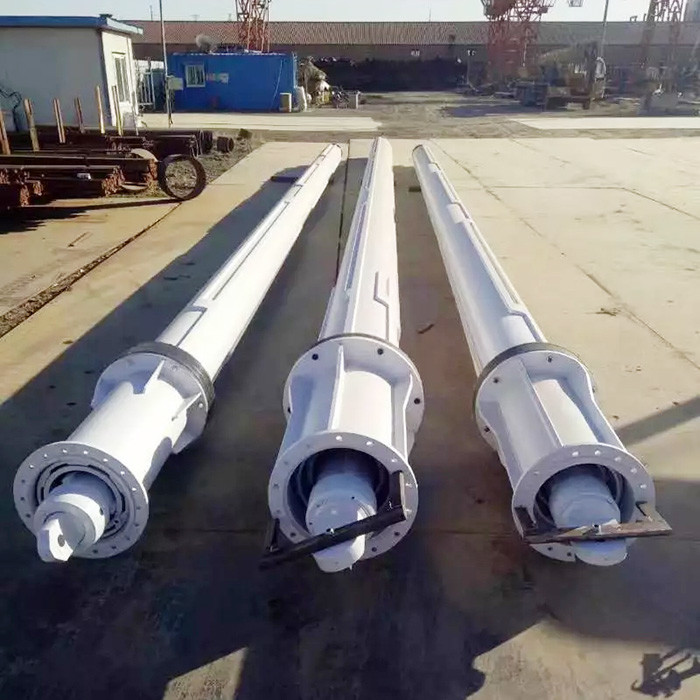

Interlocking kelly bar is of great pressure transmission and good anti-contortion perfomance. There are 3 rigid parts between drilling pipes to transfer greater pressure from embedding cylinder. And even at the hard geologic condition, it can transfer greater pressure and drill in. Stair key, organization transmission, the outside key are made by highly wear-resisting tempering steel. Interlocking Kelly Bar is applicable for soft fromations, (weak) weathered rock, hard strata construction.
|
No. |
OD |
Section |
Way of crowding |
Length of per section(m) |
Drill depth |
Torque |
||
| 1 | ¢299 | 3 | 4 |
(interlock-type) |
9-12 | 24-45 | 100 -120 | |
| 2 | ¢342 | 3 | 4 |
(interlock-type) |
9 - 12 | 24-45 | 100 -120 | |
| 3 | ¢355 | 3 | 4 |
(interlock-type) |
9 - 14 | 24 - 56 | 100-120 | |
| 4 | ¢368 | 3 | 4 |
(interlock-type) |
9 - 14 | 24 - 56 | 150-180 | |
| 5 | ¢377 | 3 | 4 |
(interlock-type) |
9 - 14 | 24 - 56 | 150-180 | |
| 6 | ¢394 | 3 | 4 |
(interlock-type) |
9 - 15 | 24 - 58 | 180-200 | |
| 7 | ¢406 | 3 | 4 |
(interlock-type) |
9 - 15 | 24 - 58 | 180-200 | |
| 8 | ¢419 | 3 | 4 |
(interlock-type) |
9 - 15 | 24 - 58 | 200-230 | |
| 9 | ¢440(445) | 3 | 4 |
(interlock-type) |
9 - 15 | 24 – 58 | 220-260 | |
| 10 |
¢470 (482) |
3 | 4 |
(interlock-type) |
9 - 16 | 24 – 60 | 220-260 | |
| 11 | ¢508 | 3 | 4 |
(interlock-type) |
9 – 18 | 24 – 68 | 260-360 | |
| 12 |
¢530 (540) |
3 | 4 | 5 |
(interlock-type) |
9 – 20 | 32 – 92 | 320-400 |
| 13 | ¢580(575) | 3 | 4 | 5 |
(interlock-type) |
9 – 20 | 32 – 92 | 360-420 |
| 14 | ¢630 | 3 | 4 | 5 |
(interlock-type) |
9 - 22 | 32 - 102 | 400-500 |
dvantage & Features of our kelly bar :
a). high quality material and rich manufacturing experience in welding process.
b). reasonable price and advanced processing facilities.
c). professional experienced engineers group from R&D department.
d). Raw materials of seamless steel tube with alloy from Chinese top manufacturer.
e). Higher hardness, higher flexibility, excellent welding properties.
f). Thinner tube, smaller inter-tube distance, good abrasion resistance.
g). Advanced technology of 6-key design, standard modular design
FAQ:
1.What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar , most are for Bauer, IMT , MAIT, SOILMEC, SANY , TEG, SUNWARD ,XCMG ,Etc. For ten years experience, supply all the world clients with good satisfaction.
2.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 6 months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7days,after receipt of your down payment.
5.What payment terms do we accept?
Ans.: We accept TT in advance and LC at sight .
