Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator

1 SET
MOQ
USD8400
Price
Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Pile Breaker
Maximum Storke Of Hydraulic Cylinder:: 150mm
Range Of Pile Diameter:: 300-400mm
Height For Cut Pile Each Time:: No More Than 300mm
Maximum Pressure Hydraulic Cylinder:: 34.3Mpa
Work Status Dimension:: 1600*1600*2000mm
Highlight:

Round Hydraulic Pile Breaker Machine

,

150mm hydraulic pile breaker

,

Excavator concrete pile crusher

Basic Infomation
Place of Origin: China
Brand Name: JTHL
Certification: ISO
Model Number: 600-800
Payment & Shipping Terms
Packaging Details: Pakcaged with steel pallet
Delivery Time: 10-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 sets /month
Product Description

Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator

                                    Hydraulic Pile Machine Breaker

Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 0

A. Square Type
Model
Unit
SP400
SP500
SP600
Range of pile breaker
mm
300-400
400-500
300-550
Max force for single rod
KN
320
320
790
Max stroke of hydraulic cylinder
mm
150
150
205
Pressure of hydraulic cylinder
Mpa
34.3
34.3
34.3
Max flow for single cylinder
L/min
25
25
25
Max height for each crush
mm
≤300
≤300
≤300
Suitable carrier
T
≥8
≥15
≥20
Single moulde weight
kg
110
220
400
Single module size
mm
604*594*286
595*980*275
910*780*400
Dimensions at working
mm
1600*1600*2000
1710*1710*2500
2050*2050*2000
Total pile breaker weight
kg
650
960
2000

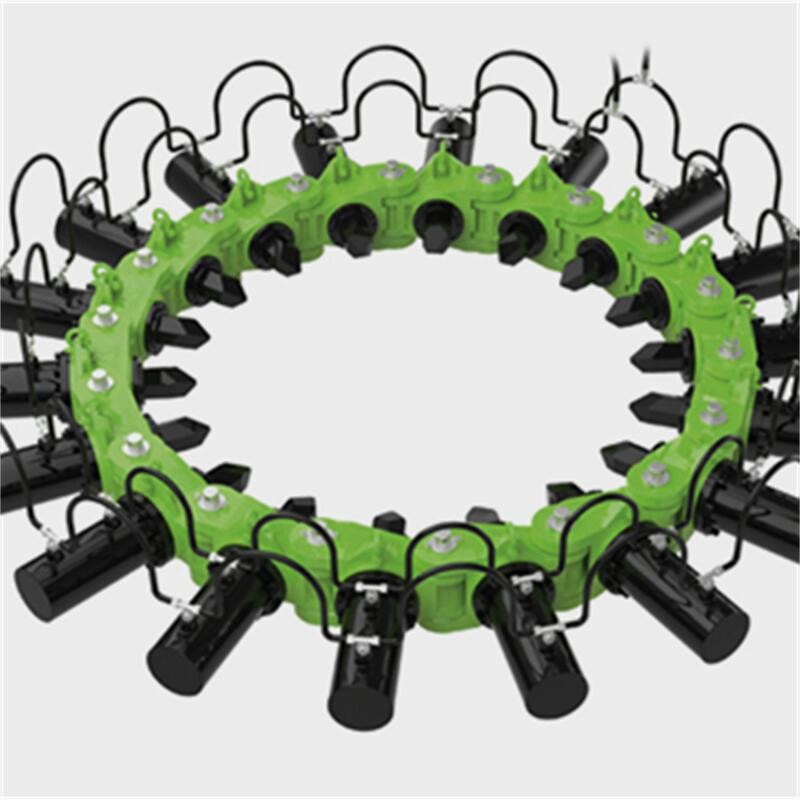

B. Round Type

Model
Unit
SP380
Moduld number
Modules
7
8
9
10
11
12
Range of pile breaker
mm
300-400
450-500
550-625
650-750
800-900
900-1050
Max force for single rod
KN
350
Max stroke of hydraulic cylinder
mm
150
Pressure of hydraulic cylinder
Mpa
32-35
Max flow for single cylinder
L/min
25
Max height for each crush
mm
≤300
Suitable carrier
T
12
13
15
18
21
26
Single moulde weight
kg
200
Total pile breaker weight
kg
920
1030
1140
1250
1360
1470
Model
Unit
SP800
Moduld number
Modules
6
7
8
9
10
11
12
13
Range of pile breaker
mm
500-600
650-800
850-1000
1050-1200
1250-1400
1450-1600
1650-1800
1650-1800
Max force for single rod
KN
650
Max stroke of hydraulic cylinder
mm
215
Pressure of hydraulic cylinder
Mpa
32-35
Max flow for single cylinder
L/min
25
Max height for each crush
mm
≤300
Suitable carrier
T
20
22
26
27
0
32
35
36
Single moulde weight
kg
380
Total pile breaker weight
kg
2335
2720
3100
3480
3860
4240
4620
5000
If you are interested in our hydraulic pile breaker, please tell us pile diameter which you will break, the grade of concrete,
round pile or square pile, the concrete reinforcement arrangement. We will introduce suitable model to you.
Welcome to visit our factory, If you have any questions, please feel free to contact me.
Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 1Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 2
Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 3
Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 4Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 5Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 6Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 7Round Hydraulic Pile Breaker Machine 150mm Concrete Pile Crusher For Excavator 8

                FAQ



1. Are you manufacturer?
Yes.We are factory in Shouguang ,Shandong Province ,China.



2. Do you have warranty?
Yes. 12 months warranty.Warranty starts from the time you receive the machines, not include production and shipping time.Within warranty, all parts are offered for free. Exceed warranty, all parts are offered at cost prices.

3. Do you have after-sale service?
Yes.After order, we will start production quickly and keep updated. After shipment, we will track the shipping and keep updated.After you receive machines, we will instruct the usages and maintenance.During usage, if any problems, we will offer timely and complete solutions.We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
