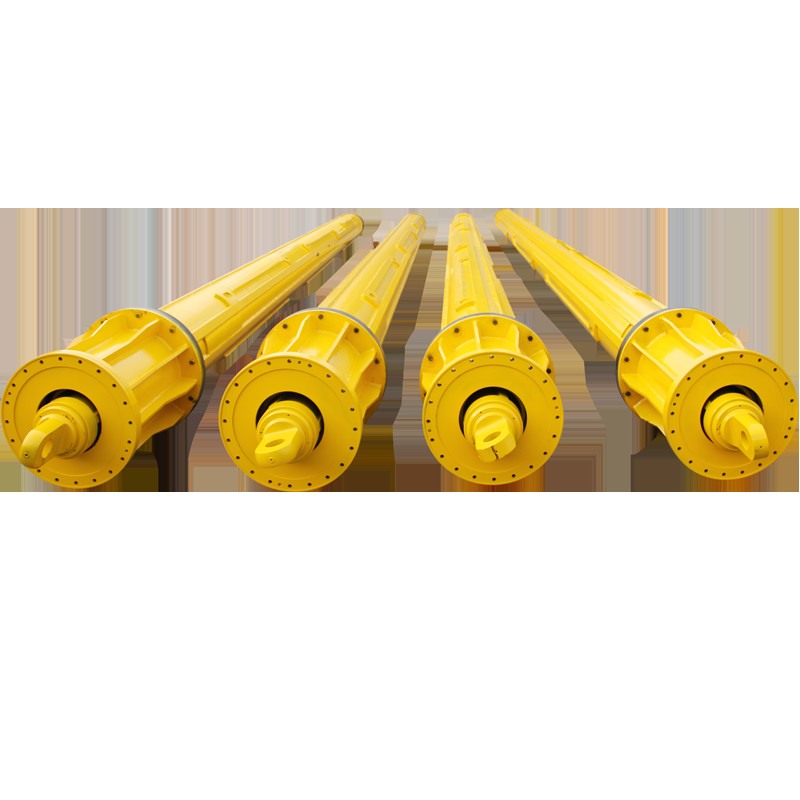

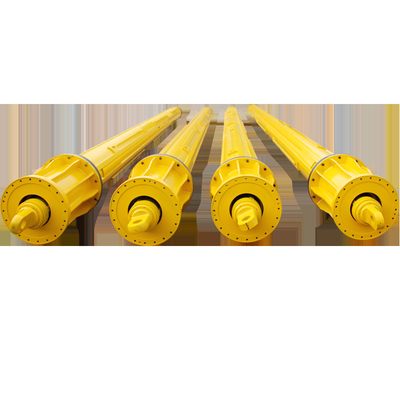

High Efficiency Bauer Drilling Kelly Bar , Sany Kelly Bar ,Soilmce ,IMT ,Mait Kelly Bar For Drilling Rig
1. Material: Q345B or 35CrMo
2.Type: Interlocking kelly bar, friction kelly bar, combined interlocking and friction kelly bar, square kelly bar etc customized as per requirement
3.Application: Suit for international CFA rigs as Bauer, Soilmec, Mait, Casagrande etc other brand piling rigs;
4.Customer Feedback: Applied on various drilling rigs and highly praised by domestic and abroad customers
.
The most professional R&D and production team.The core R&D, processing and production personnel are all from the leading enterprises of this industry, with more than ten years of experience in the design and manufacture of kelly bars. We have provided tailor-made Kelly bar and technical services for almost all the well-known brand names of rotary drilling rigs both at home and abroad.Top quality special steel materials .The steel pipe used in the Kelly bar comes from the selected materials made by the first-class steel enterprises at home and abroad. The yield strength and service life are more than doubled compared with the general-purpose products, meeting the rigorous requirements in drilling hard rock and various strata.
The cutting-edge manufacturing technology
The core parts of Kelly bar, such as square head, driving keys, and pressurizing point are made of imported steel, and go through
special heat treatment and surface strengthening treatment, which not only features high yield strength, wear resistance, impact
resistance, strain capacity, welding property and corrosion resistance, but also meets the high reliability requirements of Kelly
bar in the construction of hard rock, large diameter and super deep piles.
From the strict control of raw materials to multi-layer and multi-step precise welding, we comply with strict quality standards
and monitoring systems in all aspects of Kelly bar production to ensure 100% high standard quality. We are also the first Kelly
bar manufacturer in China to provide customers with a one-year warranty.
|
No. |
OD |
Section |
Way of crowding |
Length of per section(m) |
Drill depth |
Torque |
||
| 1 | ¢299 | 3 | 4 |
(interlock-type) |
9-12 | 24-45 | 100 -120 | |
| 2 | ¢342 | 3 | 4 |
(interlock-type) |
9 - 12 | 24-45 | 100 -120 | |
| 3 | ¢355 | 3 | 4 |
(interlock-type) |
9 - 14 | 24 - 56 | 100-120 | |
| 4 | ¢368 | 3 | 4 |
(interlock-type) |
9 - 14 | 24 - 56 | 150-180 | |
| 5 | ¢377 | 3 | 4 |
(interlock-type) |
9 - 14 | 24 - 56 | 150-180 | |
| 6 | ¢394 | 3 | 4 |
(interlock-type) |
9 - 15 | 24 - 58 | 180-200 | |
| 7 | ¢406 | 3 | 4 |
(interlock-type) |
9 - 15 | 24 - 58 | 180-200 | |
| 8 | ¢419 | 3 | 4 |
(interlock-type) |
9 - 15 | 24 - 58 | 200-230 | |
| 9 | ¢440(445) | 3 | 4 |
(interlock-type) |
9 - 15 | 24 – 58 | 220-260 | |
| 10 |
¢470 (482) |
3 | 4 |
(interlock-type) |
9 - 16 | 24 – 60 | 220-260 | |
| 11 | ¢508 | 3 | 4 |
(interlock-type) |
9 – 18 | 24 – 68 | 260-360 | |
| 12 |
¢530 (540) |
3 | 4 | 5 |
(interlock-type) |
9 – 20 | 32 – 92 | 320-400 |
| 13 | ¢580(575) | 3 | 4 | 5 |
(interlock-type) |
9 – 20 | 32 – 92 | 360-420 |
| 14 | ¢630 | 3 | 4 | 5 |
(interlock-type) |
9 - 22 | 32 - 102 | 400-500 |
Advantage & Features of our kelly bar :
a). high quality material and rich manufacturing experience in welding process.
b). reasonable price and advanced processing facilities.
c). professional experienced engineers group from R&D department.
d). Raw materials of seamless steel tube with alloy from Chinese top manufacturer.
e). Higher hardness, higher flexibility, excellent welding properties.
f). Thinner tube, smaller inter-tube distance, good abrasion resistance.
g). Advanced technology of 6-key design, standard modular design
FAQ:
1.What kind of kelly bar can we provide?
Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar , most are for Bauer, IMT , MAIT, SOILMEC, SANY , TEG, SUNWARD ,XCMG ,Etc. For ten years experience, supply all the world clients with good satisfaction.
2.What is the advantages of our kelly bar?
Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.
3. What warranty do we provide?
Ans.: We provide 6 months warranty time.
4. What is the lead time?
Ans.: Usually the lead time is 7days,after receipt of your down payment.
5.What payment terms do we accept?
Ans.: We accept TT in advance and LC at sight .
