Beijing Jietai Haoli Technology Development Co., Ltd. is one comprehensive enterprise that produces and sells rotary drilling kelly bars ,drilling tools,piling rigs spares and piling rig maintenance.

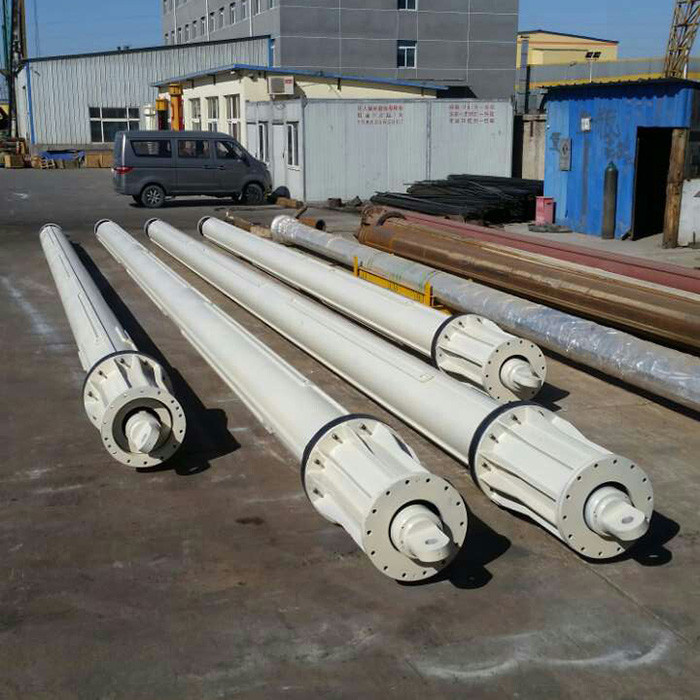

Based on the integration of Bauer, Soilmec and IMT interlocking kelly bars,we studied one big (multi) interlocking kelly bar,which have applied for patents. This kind kelly bar has the following advantages:
(1) The pressurized area is increased, which is 3-4 times the pressurized area of other type kelly bars;
Specification
| No. | Diammeter of The First | Sections | Sections | Sections | Key Pressure Type | Length of per section(m) | Drill depth | Torque(KN.M) |
| 1 | ¢299 | 3 | Interlocking | 9-16 | 24-45 | 100 -120 | ||
| 2 | ¢342 | 3 | 4 | Interlocking | 9-16 | 24-45 | 100 -120 | |
| 3 | ¢355 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 100-120 | |
| 4 | ¢368 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 5 | ¢377 | 3 | 4 | Interlocking | 9-16 | 24 - 56 | 150-180 | |
| 6 | ¢394 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 7 | ¢406 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 180-200 | |
| 8 | ¢419 | 3 | 4 | Interlocking | 9-16 | 24 - 58 | 200-230 | |
| 9 | ¢440 / ¢445 | 3 | 4 | Interlocking | 9-16 | 24 – 58 | 220-260 | |
| 10 | ¢470 | 3 | 4 | Interlocking | 9-16 | 24 – 60 | 220-260 | |
| 11 | ¢482 | 3 | 4 | Interlocking | 9-16 | 24 - 60 | 220-260 | |
| 12 | ¢508 | 3 | 4 | Interlocking | 9-16 | 24 – 68 | 260-360 | |
| 13 | ¢530 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 320-400 |
| 14 | ¢540 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 92 | 320-400 |
| 15 | ¢580 / ¢575 | 3 | 4 | 5 | Interlocking | 9-16 | 32 – 92 | 360-420 |
| 16 | ¢630 | 3 | 4 | 5 | Interlocking | 9-16 | 32 - 102 | 400-500 |
FAQ
1.Are you Factory?
Ans: Yes,we foucs on manufactuer kelly bars for more than 17years old.Our factory locted in Shandong now,own two factories .
