Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig

1
MOQ
$1500-$2500
Price
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel/35 CrMo
Type: 25T 30T 40T
Inner Bearing: SKF，FAG
Advantage: High Quality And Factory Prices
Highlight:

swivel head kelly bar tool

,

rotary drilling rig kelly bar tool
Basic Infomation
Place of Origin: China
Brand Name: JTHL
Certification: ISO9001
Model Number: 30T
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 2-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 pcs /month
Product Description

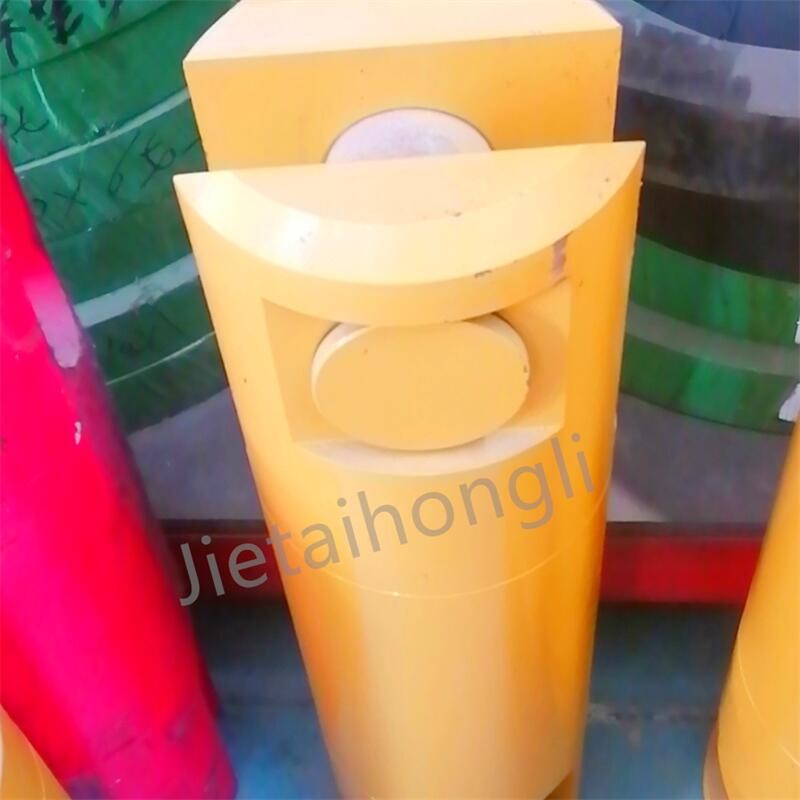

Drill Lift Joint Swivel Head For Rotary Drilling Rig Kelly Bar



Swivel Joint



  1. The inner bearing parts adopt imported bearings, SKF, FAG, excellent performance and long life.
  2. The sealing elements are completely made of imported seal, NOK, which make it integrates anticorrosion, not easy aging and good sealing property,make sure the oil in the inner cavity is not easy to leak, and the peripheral mud sundries cannot enter the inner cavity of bearing easily, so as to ensure the normal operation of the bearing .





                   Specification



Model



D1



D2



D3



A



B



L1



Bearing No.



Pull Power
JT20 ¢120 ¢40 ¢40 43 43 460 3 15-25
JT25 ¢150 ¢50 ¢50 57 57 610 4 20-30
JT30 ¢170 ¢55 ¢55 57 57 640 4 25-35
JT40 ¢200 ¢60¢80 ¢60¢80 67 67 780 5 35-45
JT50 ¢220 ¢80 ¢80 73 83 930 6 45-55





Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 0Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 1Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 2Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 3

factory photo

Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 4Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 5
Packaging and Shipping
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 6Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 7
Exhibition
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 8
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 9
patent certificate
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 10
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 11Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 12
construction site
Drill Lift Joint Swivel Head Kelly Bar Tool For Rotary Drilling Rig 13
