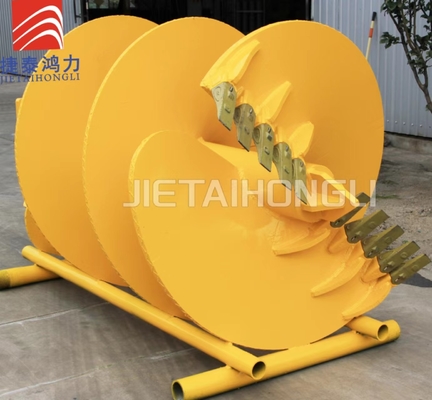

Straight Auger Soil Auger 600mm 800mm 1000mm For Bauer Soilmec IMT 200*200
FEATURE :
Jietaihongli Drilling tools
| Cutting Dia. | Spiral HIT. | Spiral Pitch | Shell THK | Spiral OD. | Center Tube OD. | Teeth NO. | Weight | |
| φ600 | 1000 | 400 | 20+30 | 550 | 219 | 6 | 535 | |
| φ800 | 1500 | 600 | 20+30 | 750 | 219 | 6 | 750 | |
| φ900 | 1500 | 600 | 20+30 | 850 | 219 | 8 | 820 | |
| φ1000 | 1500 | 600 | 20+30 | 950 | 219 | 8 | 950 | |
| φ1200 | 1500 | 600 | 30+30 | 1150 | 219 | 11 | 1050 | |
| φ1500 | 1500 | 600 | 30+30 | 1450 | 273 | 12 | 1450 | |
| φ1600 | 1500 | 600 | 30+30 | 1550 | 273 | 14 | 1650 | |
| φ1800 | 1500 | 600 | 30+30 | 1750 | 273 | 18 | 1950 | |
| φ2000 | 1500 | 600 | 40+40 | 1950 | 273 | 18 | 2300 | |
| φ2200 | 1500 | 600 | 40+40 | 2150 | 273 | 20 | 2500 | |
| φ2500 | 1500 | 600 | 40+40 | 2450 | 325 | 22 | 3100 | |
| φ2800 | 1500 | 600 | 40+40 | 2750 | 325 | 22 | 3400 | |
| φ3000 | 1500 | 600 | 40+40 | 2950 | 325 | 25 | 4550 | |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | ||||||||
We have focus on pile drilling tools for more than 20 years old.
Every type of buckets ,augers all can be tailored according to clients request.
Our products sales to Singapore ,Malaysia,Russia,Dubai,Austrail ,Middle East countries,South Africa ,etc.
If any need ,pls contact with us anytime.
