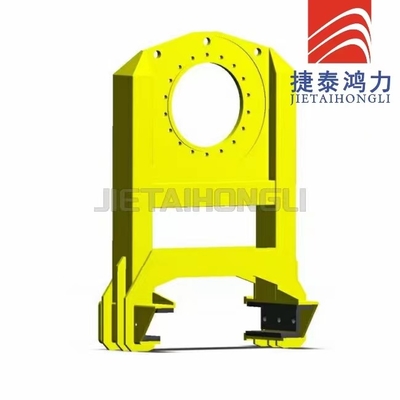

Customized kelly guide
1. Material: manganese steel.
2. Features: Follow Frame
3. appliable to different drilling rig
Price: best market price and negotiable
Follow Frame, Kelly bar pallet, Kelly bar’s upper damping rubber, Kelly bar’s under damping rubber, Slewing bearing of Kelly bar, Damping spring of Kelly bar, Kelly bar drive head and upper fitting, Lift Unit
What is the function of the guide frame
Seismic support manufacturer: www.sdchengzhen Com guide frame is a support that enables the pipe to move only in the axial direction and prevents rotation caused by bending moment or torque. The design and form selection of the pipe support structure of the pipe rack support and hanger is an important part of the pipe system design. In addition to supporting the weight of the pipe, the special pipe support can balance the force of the pipe system, limit the displacement of the pipe and absorb the vibration.
There is no air pollution, noise pollution, light pollution, etc. from on-site feeding, cutting, welding, drilling, etc. in the pipe rack support installation process. Because of the structure, the lateral linear displacement is often limited.
The guide frame is to increase the directional restraint of the pipeline on the basis of the sliding frame to prevent the lateral displacement of the pipeline. The guide frame is generally set on the stress pipeline and is given by the stress discipline after calculation of the stress piping system. However, the following places in the conventional piping should be set as guide frames by ourselves.
