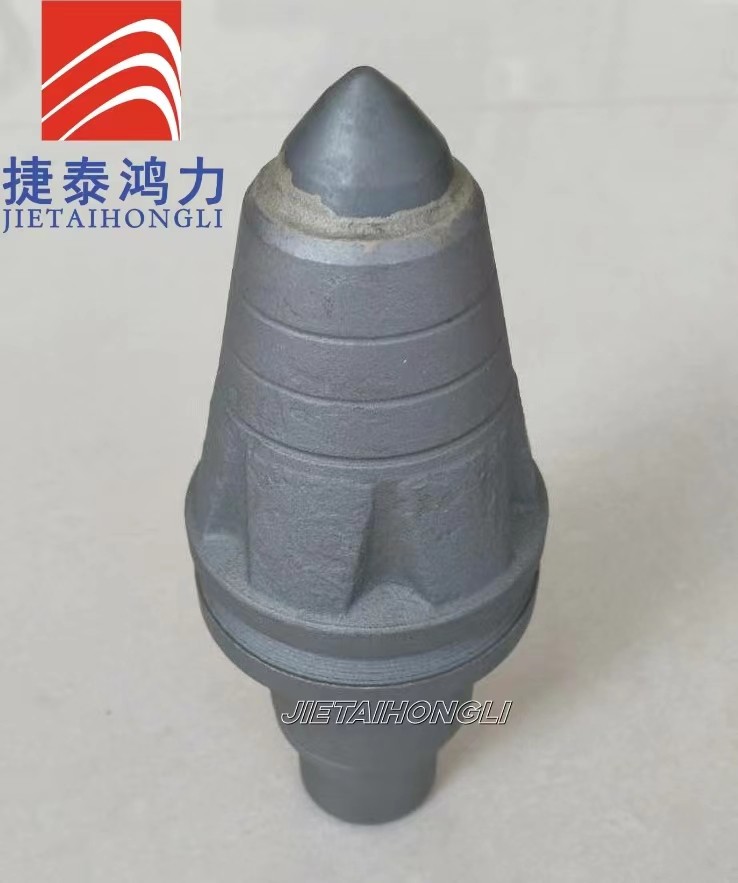

42Crmo Drilling Rock teeth
1.Picks are applicable to different industries. According to the industry classification, they can be roughly divided into two categories: mining picks and engineering picks. Mining picks are mainly used for mining coal in coal mines, and engineering picks are mainly used for highway maintenance and construction.
2. Classification according to rock stratum
The fundamental role of the pick is to cut coal and rock. The type of pick required varies with the hardness of coal seam or rock stratum. Generally speaking, we can divide the picks into coal picks, half rock picks, whole rock picks (reinforcing picks), hard rock picks, etc. Each type of pick corresponds to one geological condition.
Hardness: 50-54 or higher HRC
Product Advantages
| Material | Tungsten carbide alloy |
| Various hardness available | The most cost-effective teeth can be recommended according to various hardness and formations as per customer needs ； |
| Many choices of teeth shape | Wear-resistant weld, bar, point, dot, thread, smooth and other appearances; diversified appearances to meet different customer needs; |
| Inventory | Large inventory and spot supply; |
| Production workshop | Videos and pictures of the manufacturing process provide visible details and quality; |
| Working Performance | Comparison of working photos of domestic, international and Unicorn teeth under same construction, Unicorn teeth have better performance after use; |
| Package | Plastic boxes, unified wooden box with reinforced with sealing strips etc; |
ROLLER BITS IADC CODE SELECTION
| IADC | WOB | RPM |
| (KN/mm) | (r/min) | |
| 111/114/115 | 0.3-0.75 | 200-80 |
| 116/117 | 0.35-0.8 | 150-80 |
| 121 | 0.3-0.85 | 200-80 |
| 124/125 | 180-60 | |
| 131 | 0.3-0.95 | 180-80 |
| 136/137 | 0.35-1.0 | 120-60 |
| 211/241 | 0.3-0.95 | 180-80 |
| 216/217 | 0.4-1.0 | 100-60 |
| 246/247 | 0.4-1.0 | 80-50 |
| 321 | 0.4-1.0 | 150-70 |
| 324 | 0.4-1.0 | 120-50 |
| 437/447/435 | 0.35-0.9 | 240-70 |
| 517/527/515 | 0.35-1.0 | 220-60 |
| 537/547/535 | 0.45-1.0 | 220-50 |
| 617/615 | 0.45-1.1 | 200-50 |
| 637/635 | 0.5-1.1 | 180-40 |
| Note: Above limitts of WOB and RRPM should not be used simultaneously | ||
ROLLER PIN SIZE
| Bit Diameter | API PIN | |
| (Inch) | (mm) | |
| 3 7/8''~5 1/4'' | 98~134 | 2 3/8''. 2 7/8'' |
| 5 5/8''~6 3/4'' | 143!171 | 3 1/2'' |
| 7 1/2''~9 1/2'' | 190.5~241 | 4 1/2'' |
| 9 5/8''~13 3/4'' | 245~350 | 6 5/8'' |
| 14 5/8''~26'' | 371~660.4 | 7 5/8'' |
