Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482

1 SET
MOQ
$1500
Price
Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482
Features Gallery Product Description Request A Quote
Features
Specifications
Materials: Q345B, 35CrMo, 27SiMn, 16Mn For Drilling Bit; 16Mn/35CrMo For Kelly Bar; Q235 For Tremie Pipe, Alloy Steel
Warranty: 1 Year
Color: Customized, Yellow Or Customized, Gray, Yellow Kelly Bar, Yellow Or Other
Application: Bauer Sany XCMG Rotary Drilling Rig, Rock Drilling, Post Hole Digging Machine, Underground Mining Teeth, Large Caliber Pile Foundation Pilling
Condition: 100%new, New, 100% New Kelly Bar
Processing Type: Forging, Hot Treatment And Forging
Use: Ore Mining, Deep Foudation, Road, Bridges, Drilling Tool
Pressure Form: Interlocking, Friction, Combined, Friction And Combined
Machine Type: For Foundation Construction Rotary Drilling Rig, Piling
Advantage: High Quality And Factory Prices, Six-key Design And Parts With Imported Material
Weight: 125Kg, Within 10t, 45, Low, 000kg
Highlight:

interlocking telescopic kelly bar

,

rotary rig 406 telescopic kelly bar

,

soilmec kelly bar drilling equipment

Basic Infomation
Place of Origin: Shandong China
Brand Name: jthl
Certification: ISO9001
Model Number: 406/419/559/482
Payment & Shipping Terms
Packaging Details: plastic foam film packing
Payment Terms: T/T, L/C
Supply Ability: 150SETS/MONTH
Product Description
Product Description

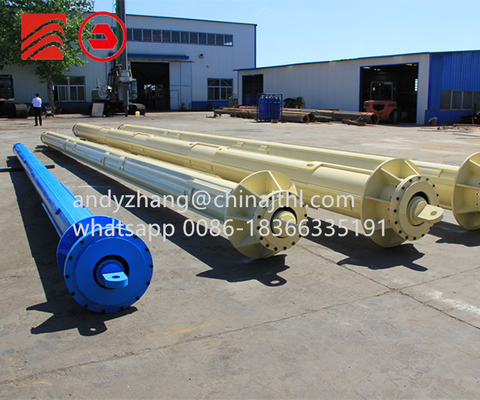

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 0

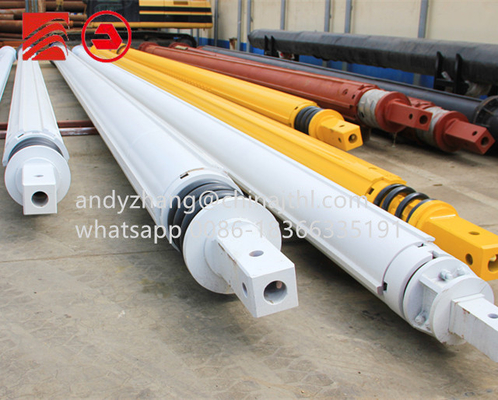

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 1







Combined full-interlocking kelly bar is one type of kelly bar combining of machine-locking form and full-interlocking form. This kelly bar use high-strength alloy steel pipe and wear-resistant alloy strip. It has advantage of passing down pressure with small pressure loss and the rapid transmission. Combined full-interlocking kelly bar is widely used in hard layer, frozen layer, goossse gravel layer.

Specification


Combined Full Interlocking Kelly Bar

Type

O.Dia.(mm)

Section

Drilling Depth(m)

Torque
(kn.m)

JT12 φ340-3x13

φ340

3

36

120

JT12 φ356-3x13

φ356

3

36

120

JT15 φ377-4x14

φ377

4

52

150

JT20 φ406-4x14

φ406

4

52

200

JT22 φ406-4x14

φ406

4

52

220

JT25φ 445-4x15

φ445

4

56

250

JT25φ 470-4x15

φ470

4

56

250

JT28φ 508-4x15

φ508

4

56

280

JT28 φ508-5x15

φ508

5

70

280

JT30 φ530-4x17

φ530

4

63

300

JT40 φ580-4x17

φ580

4

63

400


This date is only for reference, part of date can adjust according to clients' requirement.

Product Processing

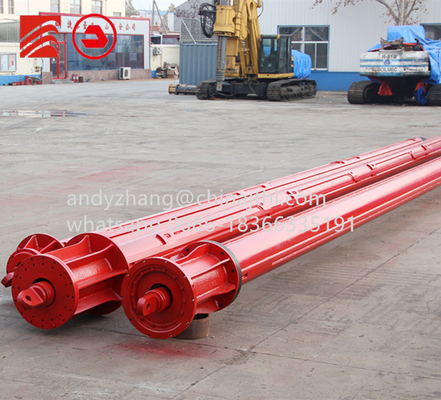

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 2

Detailed Picture

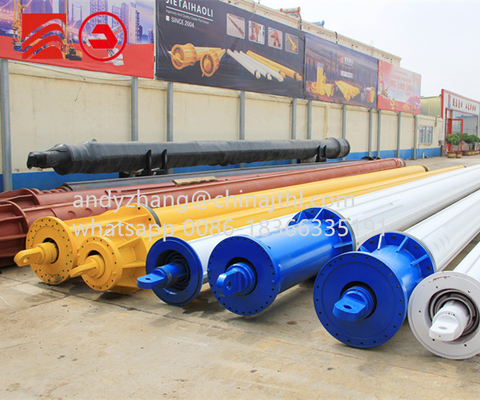

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 3

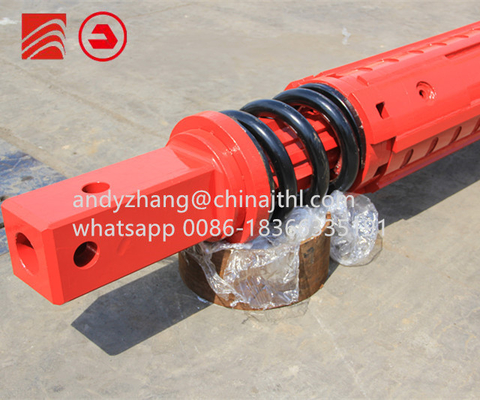

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 4

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 5

Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 6

Packing & Delivery


Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 7
Packing
Standard PE bubble film packing or as requirement of buyer.

Company Profile


Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 8



Shandong Jietaihaoli Machinery Equipment Co., Ltd is specialized in producing kelly bar, drilling tools, casing, refurbished used drilling rig, drilling rig spare parts like gearbox, motor, swivel joint etc. Our kelly bar match with IMT, Bauer, Soilmec, Mait, Sany, CSR, Lovol, Yutong etc. we have export to Indian , cannada, Malaysia,Turkey, USA, Singapore, Russia etc. We have won good praise and trust of the home and abroad customers.


Certifications


Interlocking Telescopic Kelly Bar For Soilmec Rotary Drilling Rig 406 /419/559/482 9

FAQ

1. What kind of kelly bar can you provide?
Ans: we can provide kelly bars for almost all the brand rotary drilling rig, the interlocking kelly bar and friction kelly bar, most are for Bauer, IMT, MAIT, SOILMEC, SANY, TEG, SUNWARD, ECMG, etc. For 18 years experience supply clients all over the world with good quality.
2. what is the advantage of your kelly bar?
Ans: we use super quality seamless steel pipe material, which make the kelly bar more durable and our kelly bar with competitive and reasonable price. we have got IS9001 certification, no matter you are dealers or end user, you will get biggest profit.
3. What warranty do you provide?
Ans: we provide 6 months warranty time.
4. what is the lead time?
Ans: Usually the lead time is 7 days after receiption of your deposite.
5. what payment terms can you accept?
Ans: we can accept TT in advance , TT in advance and L/C at sight.
