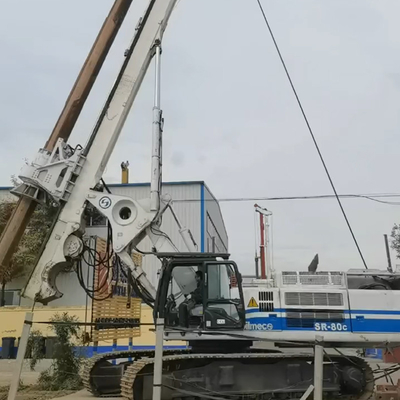

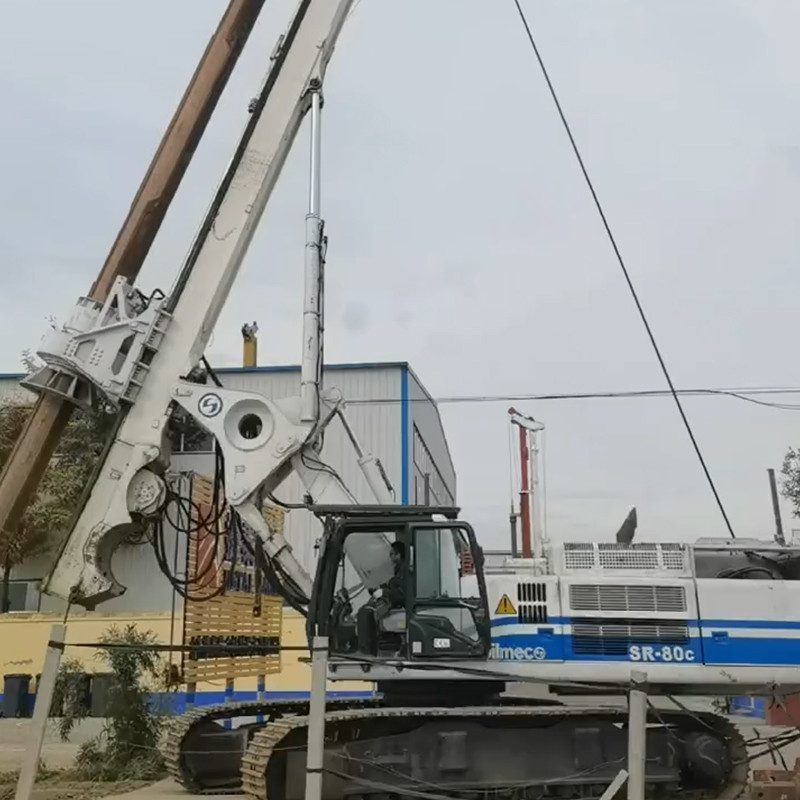

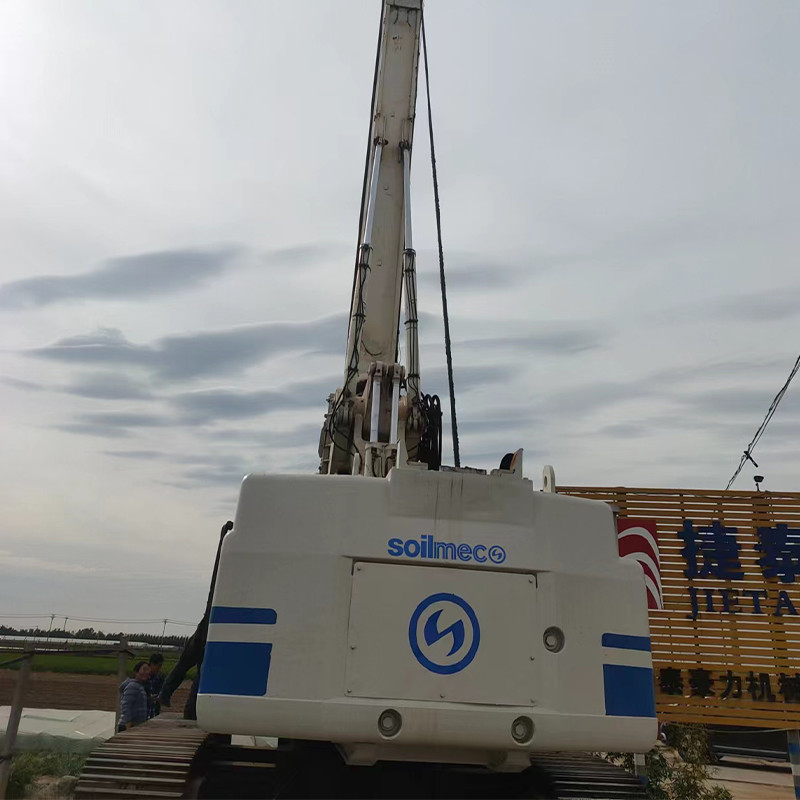

Soilmec SR80C.
Soilmec SR80C equipped with Cat c13 diesel engine, rated power 328kw/439hp, max drilling diametr 2500mm, user had make some changes to make it work more efficiency. Improve changes as below:
1.The Kelly bar 406 is changed to 508. 2. The front main winch is changed to the back and increase the size of main winch, main winch with 2 motors and 2 resucers( original one with 1 motor) ,wire rope diameter changed from 30mm to 36mm. Compared with the original, this change has the advantage that the lifting force is increased.
3. Changing the rotary drive from two motors to three motors and three reducers is to increase the output torque of rotary drive.
Product Paramenters
Main Technical Specifications
Transportation Length
15866mm
Width of transportation
2980
Height of transportation
3530mm
Total Weight( without kelly bar)
71.5tons
Borehole
Max. Drilling Diameter
2500mm
Max. Drilling Depth
77m
Engine
Engine Model
CAT C-13
Engine Power
328kw/439hp
Engine Speed
1800rpm
Rotary Drive
MAX. Output Torque
325KN.M
Rotational Speed
27-150rpm
Crowed Cylinder
Max. Pushing Force
220kn
Max. Pulling Force
300kn
Max. Stroke
6500mm
Main Winch
Max. Pulling Force
260KN
Wire Rope Diameter
36mm
Max lifting speed
75m/min
Auxiliary Winch
Max. Pulling Force
50KN
Wire Rope Diameter
16mm
Chassis
Chassis Model
CAT345
Chassis overall Length
6000mm
Track Shoe With
800mm
Average ground pressure
0.105MPA
Details Images

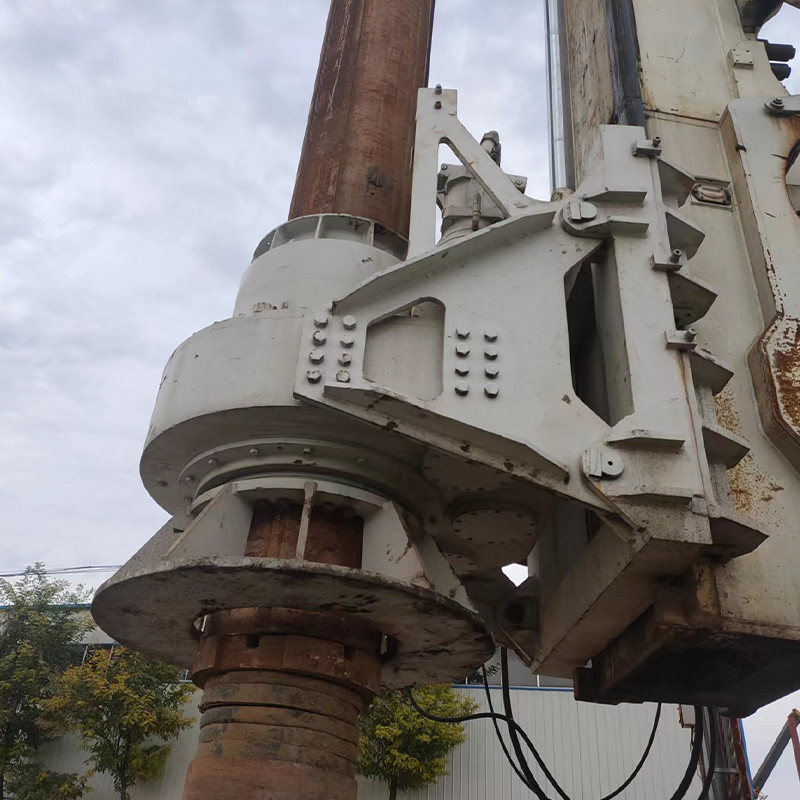

Rotary drive
Changing the rotary drive from two motors to three motors and three reducers is to increase the output torque of rotary drive.

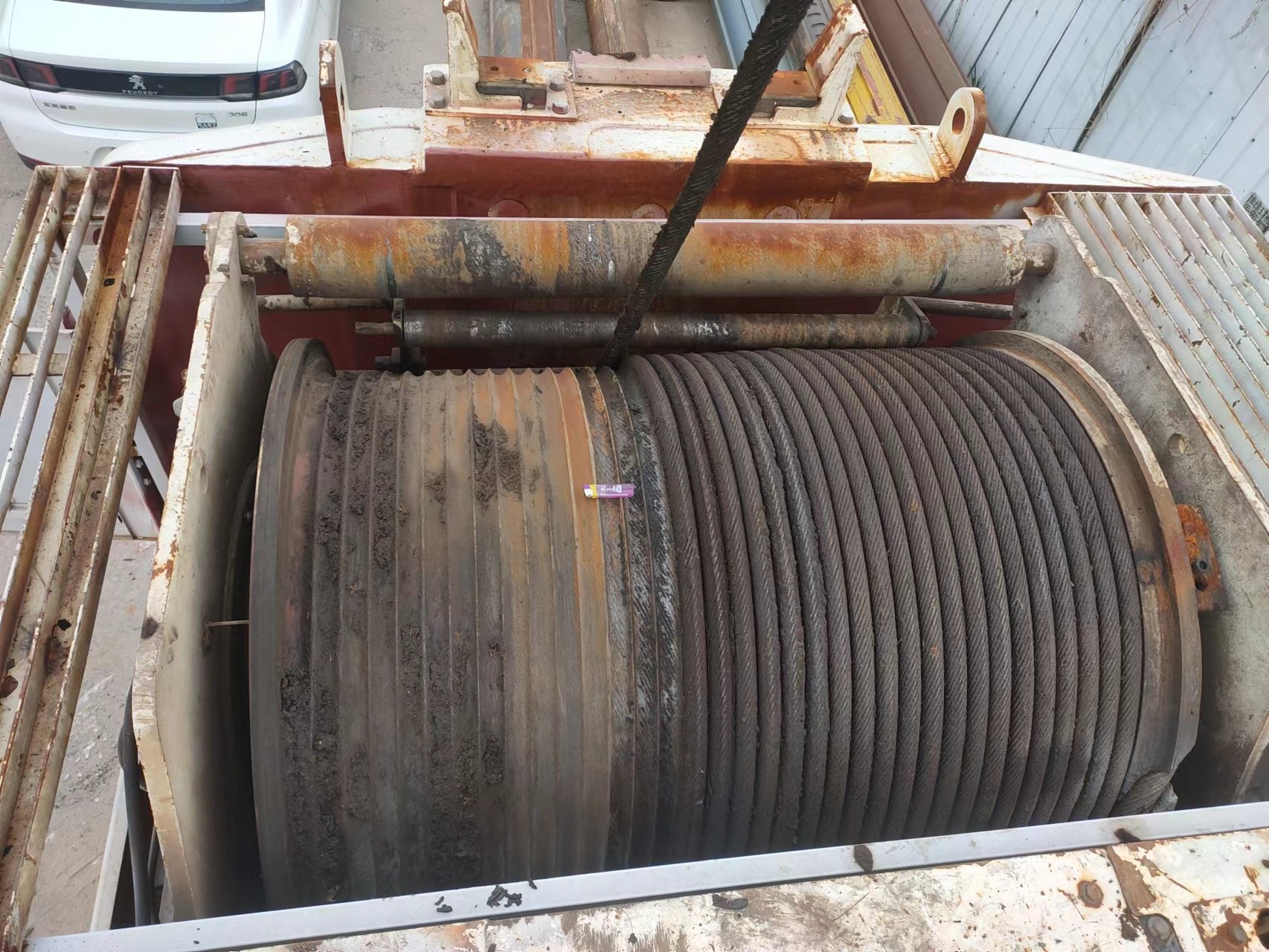

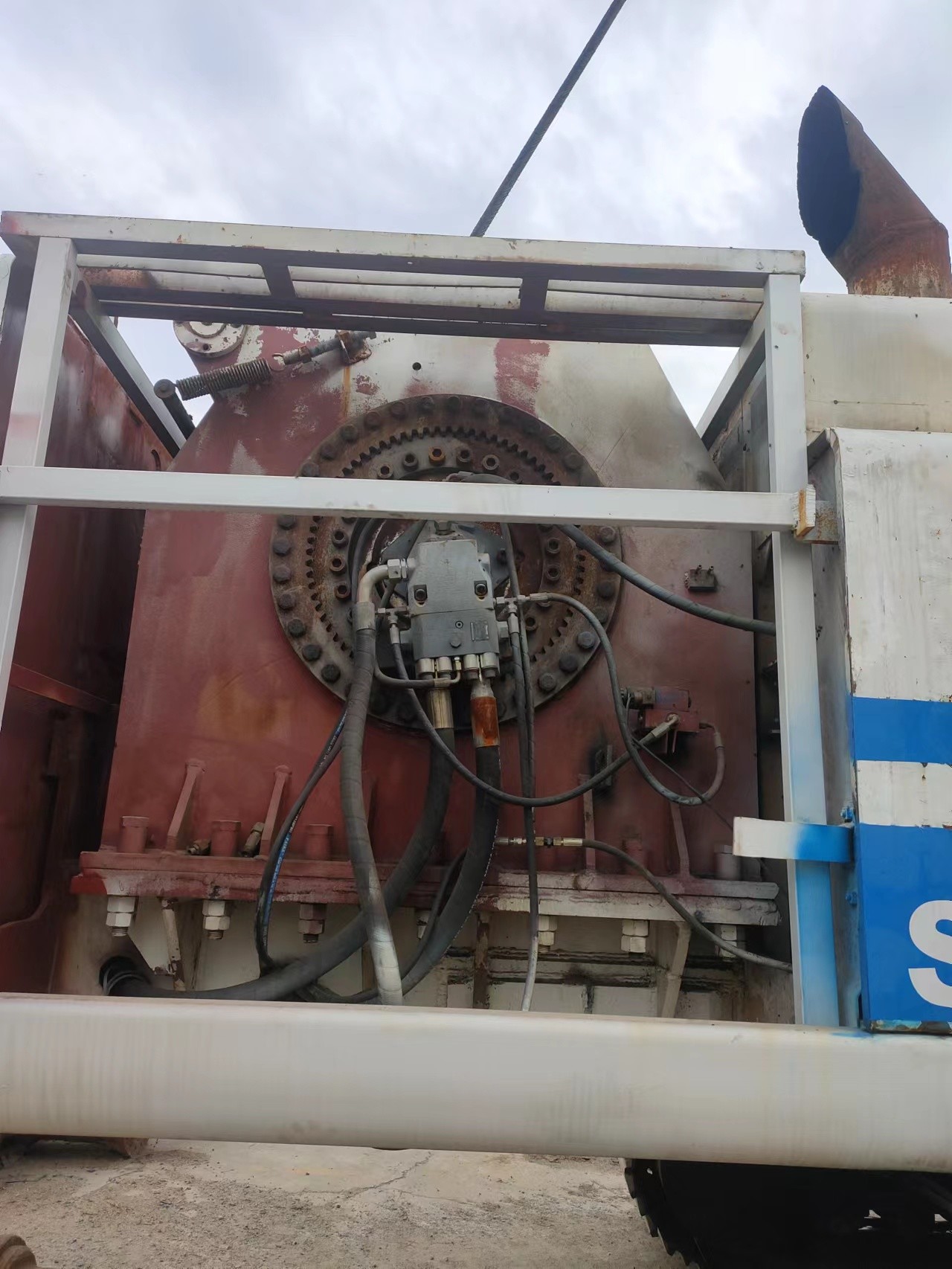

Main Winch
The front main winch is changed to the back and increase the size of main winch, main winch with 2 motors and 2 resucers(
original one with 1 motor) ,wire rope diameter changed from 30mm to 36mm. Compared with the original, this change has the
advantage that the lifting force is increased.
cab
Change air conditioner

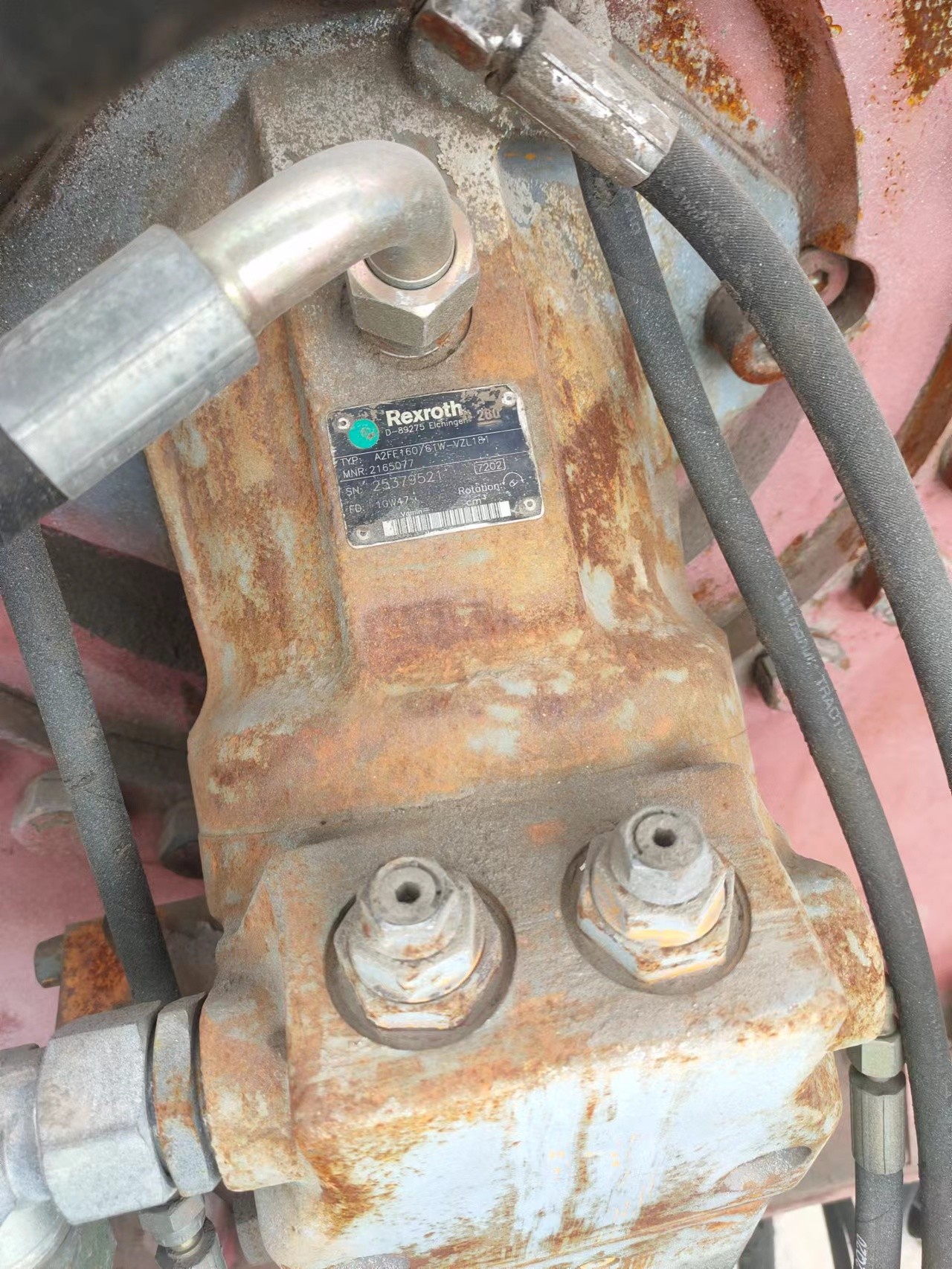

pump
