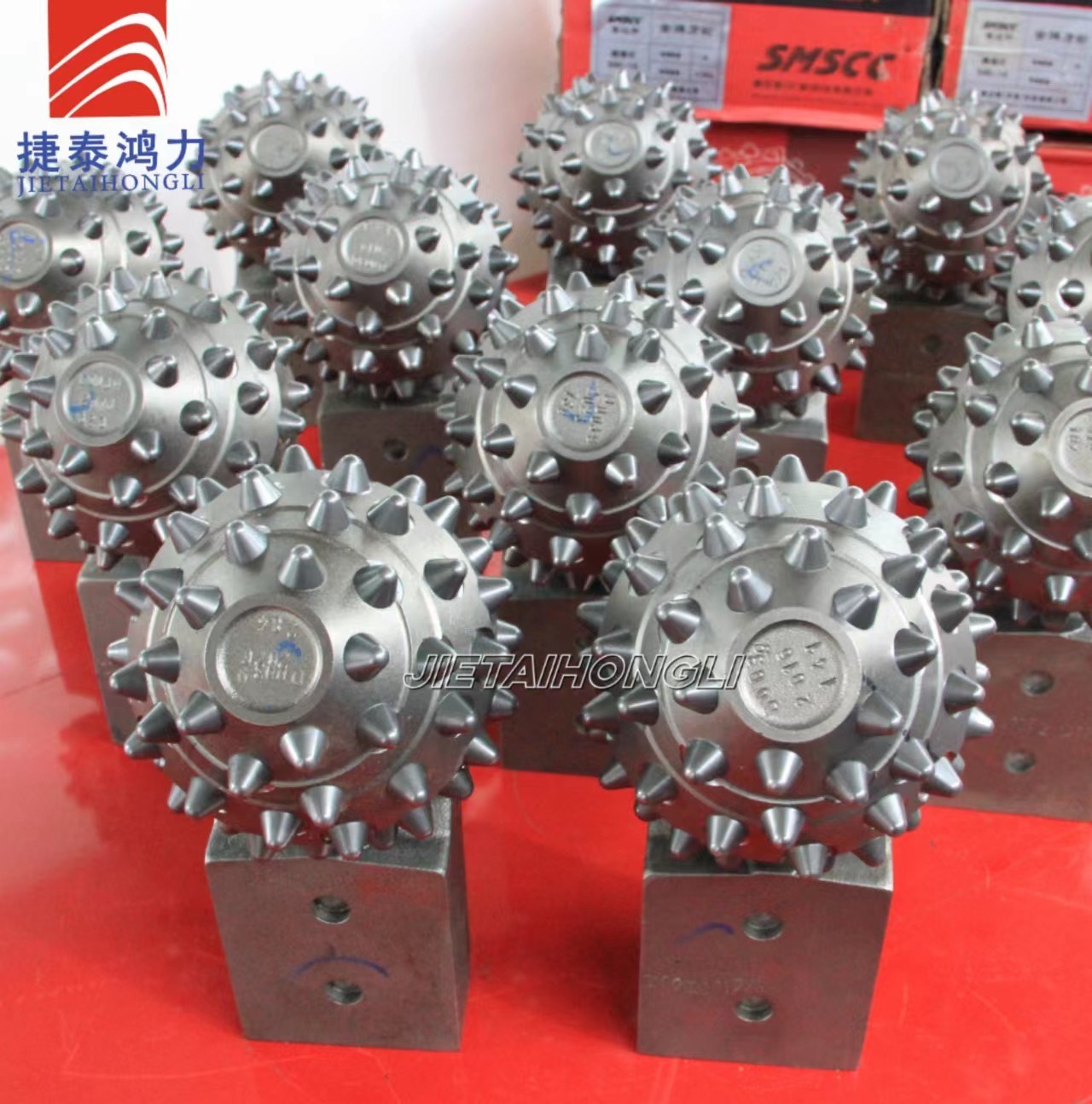

42Crmo Drilling Rock Roller Bits With Tungsten Carbide
Product Advantages
| Material | Tungsten carbide alloy |
| Various hardness available | The most cost-effective teeth can be recommended according to various hardness and formations as per customer needs ； |
| Many choices of teeth shape | Wear-resistant weld, bar, point, dot, thread, smooth and other appearances; diversified appearances to meet different customer needs; |
| Inventory | Large inventory and spot supply; |
| Production workshop | Videos and pictures of the manufacturing process provide visible details and quality; |
| Working Performance | Comparison of working photos of domestic, international and Unicorn teeth under same construction, Unicorn teeth have better performance after use; |
| Package | Plastic boxes, unified wooden box with reinforced with sealing strips etc; |
Applicable layers: dense sand, gravel, hard rocks and very hard formation, etc..
Sizes: From 2 7/8 to 26"larger sizes for hole opener bit ,reamer bit.
Type: 437,517,537,617,637
Hardness: 50-54 or higher HRC
ROLLER BITS IADC CODE SELECTION
| IADC | WOB | RPM |
| (KN/mm) | (r/min) | |
| 111/114/115 | 0.3-0.75 | 200-80 |
| 116/117 | 0.35-0.8 | 150-80 |
| 121 | 0.3-0.85 | 200-80 |
| 124/125 | 180-60 | |
| 131 | 0.3-0.95 | 180-80 |
| 136/137 | 0.35-1.0 | 120-60 |
| 211/241 | 0.3-0.95 | 180-80 |
| 216/217 | 0.4-1.0 | 100-60 |
| 246/247 | 0.4-1.0 | 80-50 |
| 321 | 0.4-1.0 | 150-70 |
| 324 | 0.4-1.0 | 120-50 |
| 437/447/435 | 0.35-0.9 | 240-70 |
| 517/527/515 | 0.35-1.0 | 220-60 |
| 537/547/535 | 0.45-1.0 | 220-50 |
| 617/615 | 0.45-1.1 | 200-50 |
| 637/635 | 0.5-1.1 | 180-40 |
| Note: Above limitts of WOB and RRPM should not be used simultaneously | ||
ROLLER PIN SIZE
| Bit Diameter | API PIN | |
| (Inch) | (mm) | |
| 3 7/8''~5 1/4'' | 98~134 | 2 3/8''. 2 7/8'' |
| 5 5/8''~6 3/4'' | 143!171 | 3 1/2'' |
| 7 1/2''~9 1/2'' | 190.5~241 | 4 1/2'' |
| 9 5/8''~13 3/4'' | 245~350 | 6 5/8'' |
| 14 5/8''~26'' | 371~660.4 | 7 5/8'' |
