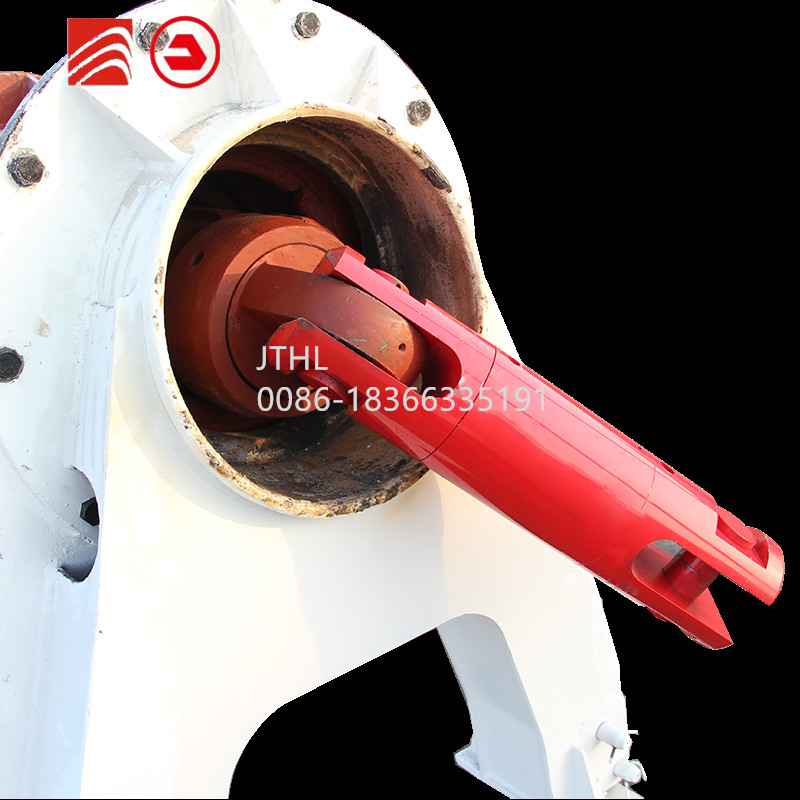

Lifting Swivel Joint used for Piling Rigs for SR360 / BG 28/ SR90
Swivel is made of metal junction structure, the upper and lower joint part, intermediates and other parts are completely made of high quality forged alloy steel. Going through strict heat treatment after roughing process, then adopts refined processing, which make the swivel with perfect comprehensive mechanical property, strong wear-resistant and long life.
| Standard Dimension | ||||||||
|
Model |
D1 | D2 | D3 | A | B | L1 |
Bearing No. |
KN Pull Power |
| JT20 | ¢120 | ¢40 | ¢40 | 43 | 43 | 460 | 3 | 15-25T |
| JT25 | ¢150 | ¢50 | ¢50 | 57 | 57 | 610 | 4 | 20-30T |
| JT30 | ¢170 | ¢55 | ¢55 | 57 | 57 | 640 | 4 | 25-35T |
| JT40 | ¢200 | ¢60¢80 | ¢60¢80 | 67 | 67 | 780 | 5 | 35-45T |
| JT50 | ¢220 | ¢80 | ¢80 | 73 | 83 | 930 | 6 | 45-55T |
