Drill buckets are mainly used for sandy soil, sludge, clay , muddy sandy gravel and weathered soft formation . The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions . the welding angle of bucket teeth can be designed according to formation conditions so that the drilling buckets can keep high efficiency of soil cutting amount in any formation conditions .

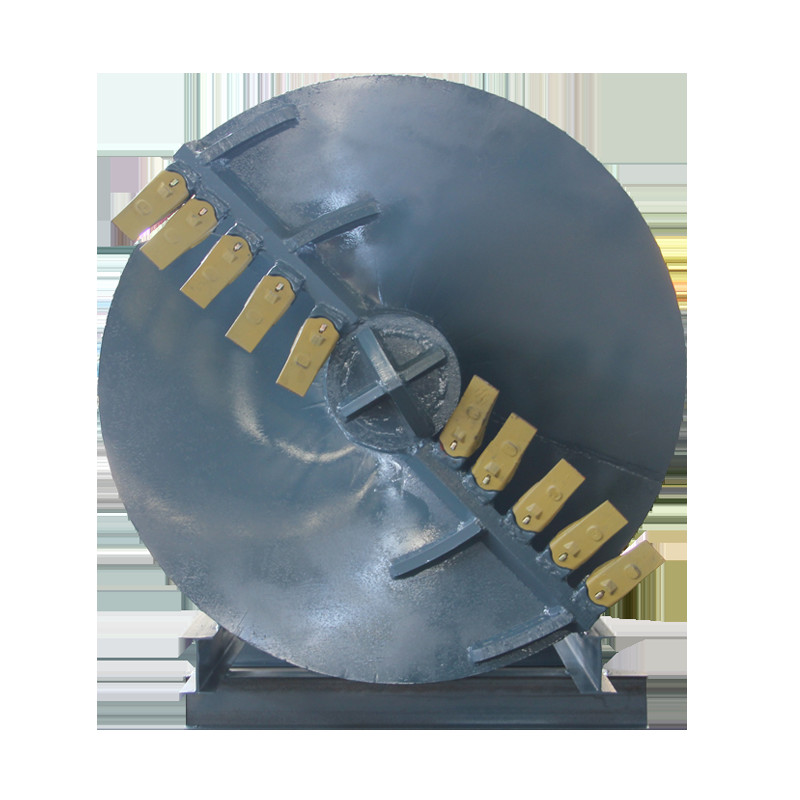

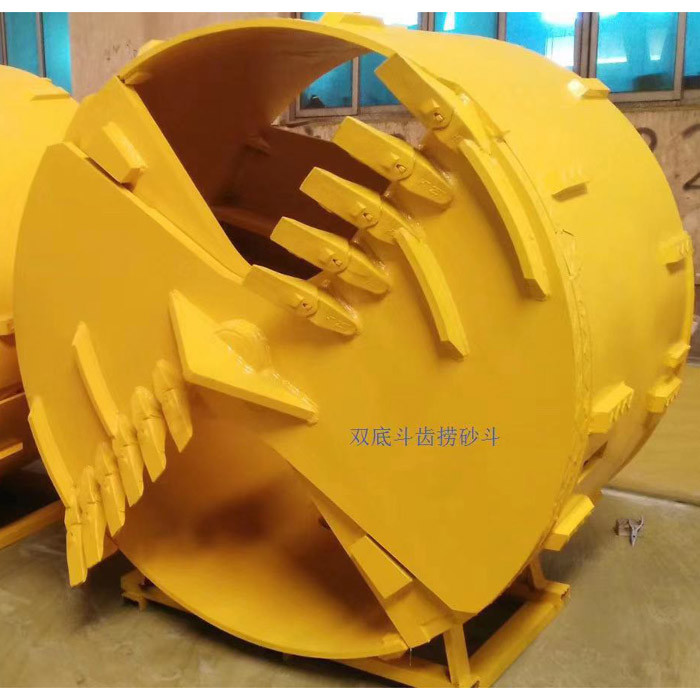

The bottom cove if made of high-strength Mn plate, and the cutting dege includes single-layer type and double-layer type; the soul inlet also includes single-bottom type and double-bottom type .

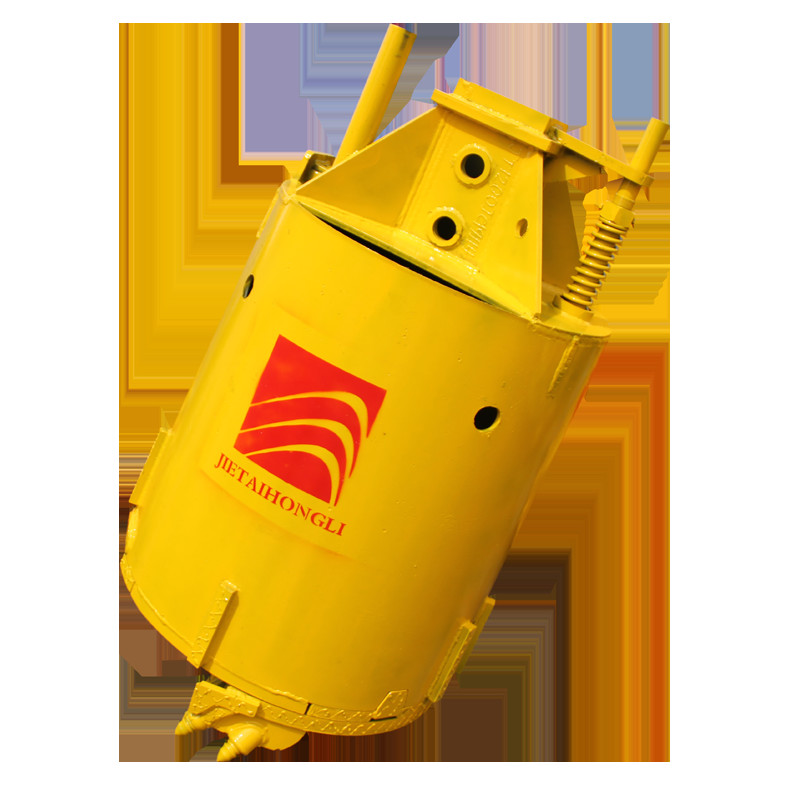

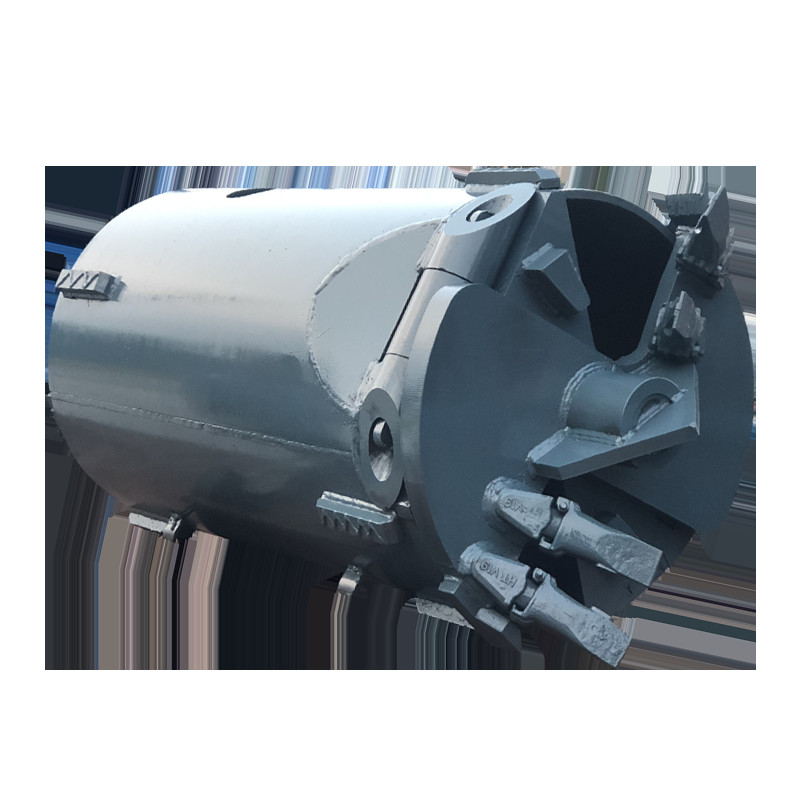

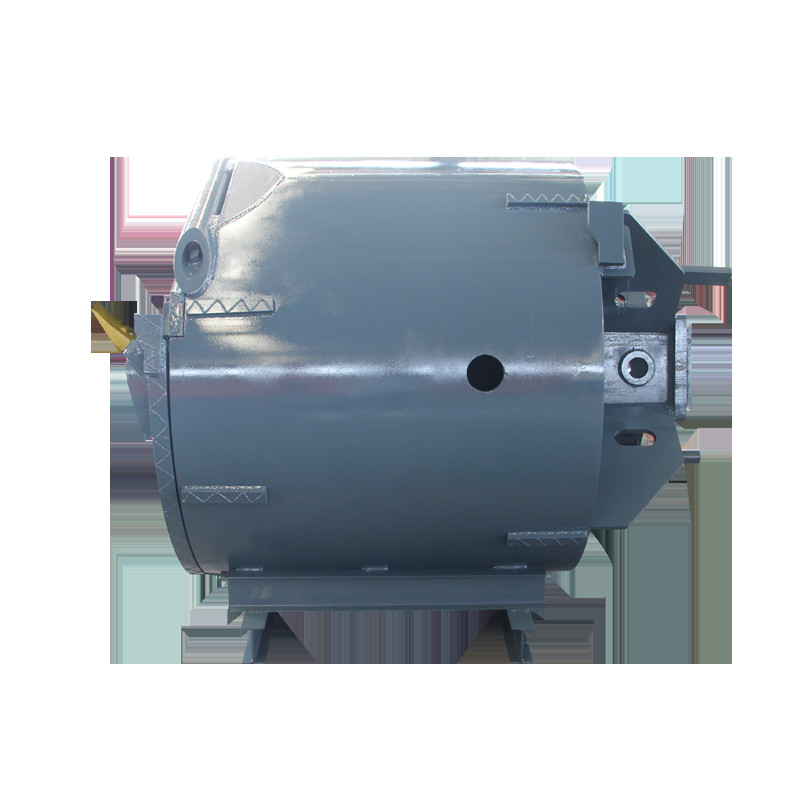

1. DRILL BUCKET WITH FLAT TEETH #Drilling Bucket with soil Drilling Tooth
FEATURE:
| Drilling Tool Model | |||||||
| Model | Size | Height | Bucket Thickness | Upper Bottom Thickness | Lower Bottom Thickness | No of teeth | Weight |
| Drilling Bucket with soil Drilling Tooth | φ600 | 1200 | 16 | 40 | 40 | 4 | 680 |
| φ700 | 1200 | 16 | 40 | 40 | 4 | 800 | |
| φ800 | 1200 | 16 | 40 | 50 | 4 | 900 | |
| φ900 | 1200 | 16 | 40 | 50 | 5 | 1050 | |
| φ1000 | 1200 | 16 | 40 | 50 | 5 | 1100 | |
| φ1100 | 1200 | 16 | 40 | 50 | 7 | 1280 | |
| φ1200 | 1200 | 16 | 40 | 50 | 7 | 1350 | |
| φ1250 | 1200 | 16 | 40 | 50 | 8 | 1400 | |
| φ1300 | 1200 | 16 | 40 | 50 | 8 | 1500 | |
| φ1400 | 1200 | 16 | 40 | 50 | 9 | 1650 | |
| φ1500 | 1200 | 16 | 40 | 50 | 9 | 2050 | |
| φ1600 | 1200 | 16 | 40 | 50 | 9 | 2250 | |
| φ1700 | 1000 | 20 | 40 | 50 | 11 | 2450 | |
| φ1800 | 1000 | 20 | 50 | 50 | 12 | 2700 | |
| φ1900 | 1000 | 20 | 50 | 50 | 13 | 2900 | |
| φ2000 | 800 | 20 | 50 | 50 | 14 | 3200 | |
| φ2200 | 800 | 20 | 50 | 50 | 16 | 3800 | |
| φ2500 | 800 | 20 | 50 | 50 | 19 | 4800 | |
| φ2800 | 800 | 20 | 50 | 50 | 22 | 6000 | |
| φ3000 | 800 | 20 | 50 | 50 | 24 | 7000 | |
| Kelly Box | Sany--150 | Bauer--200 | Bauer--250 | ||||
|
Noted 1: Size refers to diameter of bore hole, all measurements in millimeters (mm); weight in kilograms(kg); Noted 2:drill bucket can be customized according to customer demand. |
|||||||
