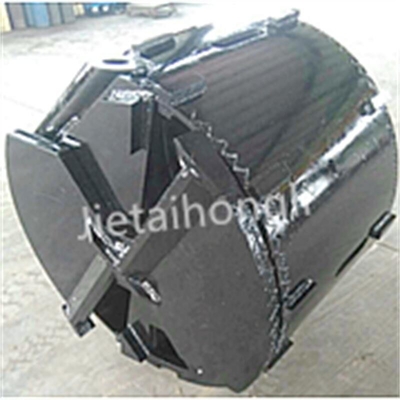

Double Bottom Sand Soil Drilling Bucket Core Barrel With Auger Teeth Rotary
CLEAN BUCKET
FEATURE :
1. Choose cone or straight bucket according to different working conditions;
2.Choose straight guide plate or no guide plate according to different working conditions;
3. Applicable scope: clean spoil at pile bottom, soft layer;
|
Drilling Tool Model
|
|||||||
| Model | Size | Height |
Bucket Thickness |
Upper Bottom Thickness |
Lower Bottom Height |
No of teeth |
Weight |
|
Cleaning Bucket |
φ600 | 800 | 16 | 40 | 200 | / | 432 |
| φ700 | 800 | 16 | 40 | 200 | / | 513 | |
| φ800 | 800 | 16 | 40 | 200 | / | 622 | |
| φ900 | 800 | 16 | 40 | 200 | / | 724 | |
| φ1000 | 800 | 16 | 40 | 200 | / | 837 | |
| φ1100 | 800 | 16 | 40 | 200 | / | 959 | |
| φ1200 | 800 | 16 | 40 | 200 | / | 1086 | |
| φ1250 | 800 | 16 | 40 | 200 | / | 1154 | |
| φ1300 | 800 | 16 | 40 | 200 | / | 1242 | |
| φ1400 | 800 | 16 | 40 | 200 | / | 1392 | |
| φ1500 | 600 | 16 | 40 | 200 | / | 1477 | |
| φ1600 | 600 | 16 | 40 | 200 | / | 1649 | |
| φ1700 | 600 | 16 | 40 | 200 | / | 1826 | |
| φ1800 | 600 | 16 | 50 | 200 | / | 2293 | |
| φ1900 | 600 | 16 | 50 | 200 | / | 2518 | |
| φ2000 | 600 | 20 | 50 | 200 | / | 3046 | |
| φ2200 | 600 | 20 | 50 | 200 | / | 3481 | |
| φ2500 | 600 | 20 | 50 | 200 | / | 4392 | |
| φ2800 | 600 | 20 | 50 | 200 | / | 5607 | |
| φ3000 | 600 | 20 | 50 | 200 | / | 6377 | |
| Kelly Box | Sany--150 | Bauer--200 | Bauer--250 | ||||
DRILL BUCKET WITH FLAT TEETH FEATURE:
1.Cast pilot with rock drilling bits , arc guide plate teeth arrangement, double unlocking system;
2 Staggered arrangement of rock drilling bits;
3 Applicable layers: gravel , pebble , highly or medium weathered rock
4.Kelly box size as per customer demand
Company Profile
Jietaihaoli specialized in rotary piling rig maintenance and aftersale professional maintenace team, 15 years abundant experience. We can maintain piling rig machine inculde abroad brand IMT, Soilmec, Bauer, Mait, Casagrande, and home brand SANY XCMG CRRC, Zoomlion, Sunward etc
1.Maintenance Projects Inculde
2.Rotary piling rig overhaul, repair and maintenance items Hydraulic 3.systems mainencace and troubleshooting
4.Circuit system maintance and troubleshooting
5.Engine overhaul and troubleshooting
6.Maintenance, replacement and modification of gearbox and motors
Due to space limitations, not all product details are displayed. For details, please consult Jack An,
