Hard Ground Q355d Rock Core Barrel Bucket With Bullet Teeth
FEATURE :
1. Cutting ring with rock drilling bits and releases the internal stress of rock;
2. Rock drilling bits perform stage breaking and drilling ;
3. Applicable layers: backfill layer, medium weathered rock, bedrock;
| Cutting Dia. | Shell HIT. | Shell OD. | Shell THK. | Stiffening Ring THK. | Stiffening Ring HIT. | Teeth No. | Weight | |
| φ600 | 1200 | 520 | 16 | 20 | 200 | 6 | 520 | |
| φ800 | 1200 | 720 | 16 | 20 | 200 | 9 | 672 | |
| φ900 | 1200 | 820 | 16 | 20 | 200 | 10 | 750 | |
| φ1000 | 1200 | 920 | 16 | 20 | 200 | 11 | 847 | |
| φ1200 | 1200 | 1120 | 16 | 20 | 200 | 13 | 1010 | |
| φ1500 | 1200 | 1420 | 16 | 20 | 200 | 16 | 1370 | |
| φ1600 | 1200 | 1520 | 16 | 20 | 200 | 17 | 1493 | |
| φ1800 | 1000 | 1720 | 20 | 20 | 200 | 19 | 1841 | |
| φ2000 | 800 | 1920 | 20 | 20 | 200 | 21 | 1852 | |
| φ2200 | 800 | 2120 | 20 | 20 | 200 | 23 | 2329 | |
| φ2500 | 800 | 2420 | 20 | 20 | 200 | 27 | 2705 | |
| φ2800 | 800 | 2720 | 20 | 20 | 200 | 30 | 3200 | |
| φ3000 | 800 | 2920 | 20 | 20 | 200 | 32 | 3800 | |
| Remark:all measurements in millimeters (mm); weight in kilograms(kg); | ||||||||

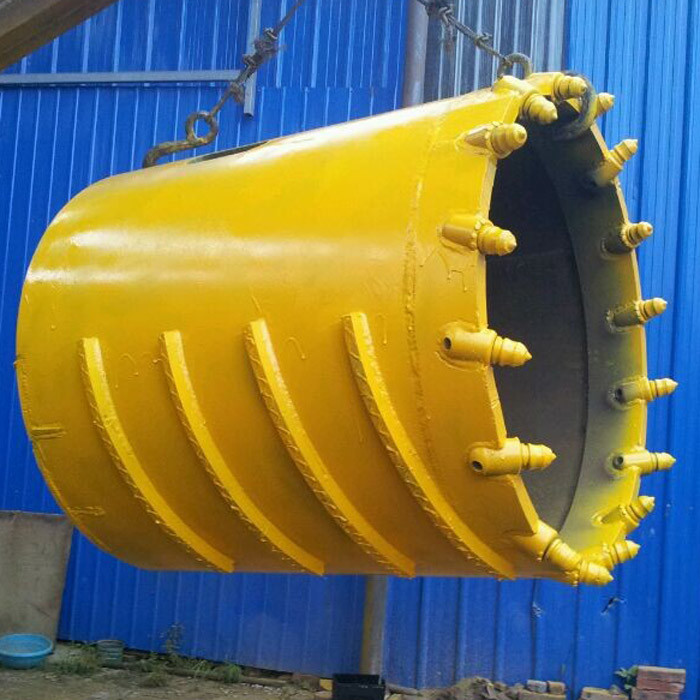

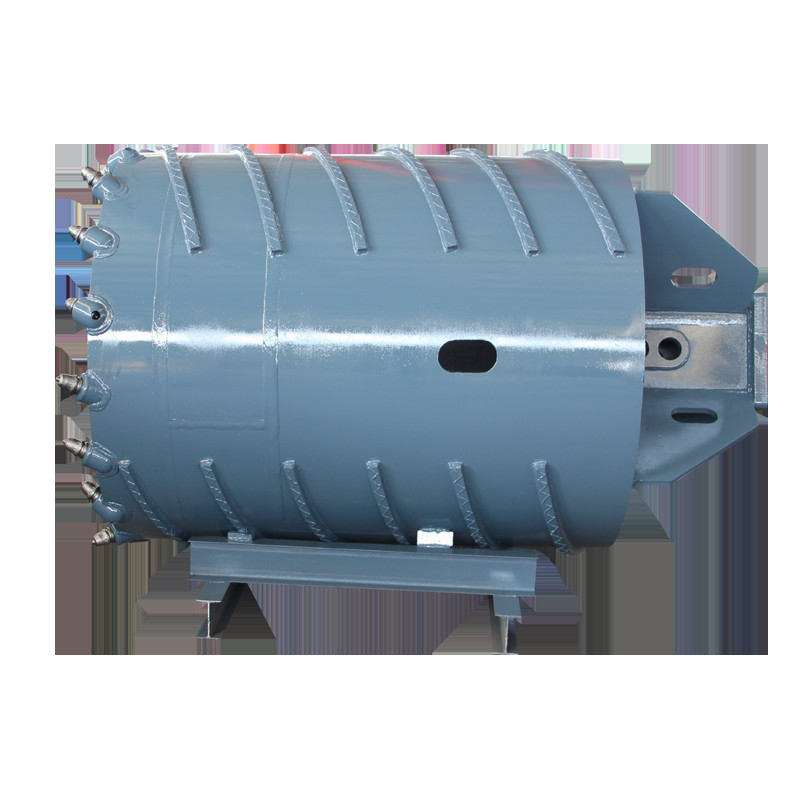

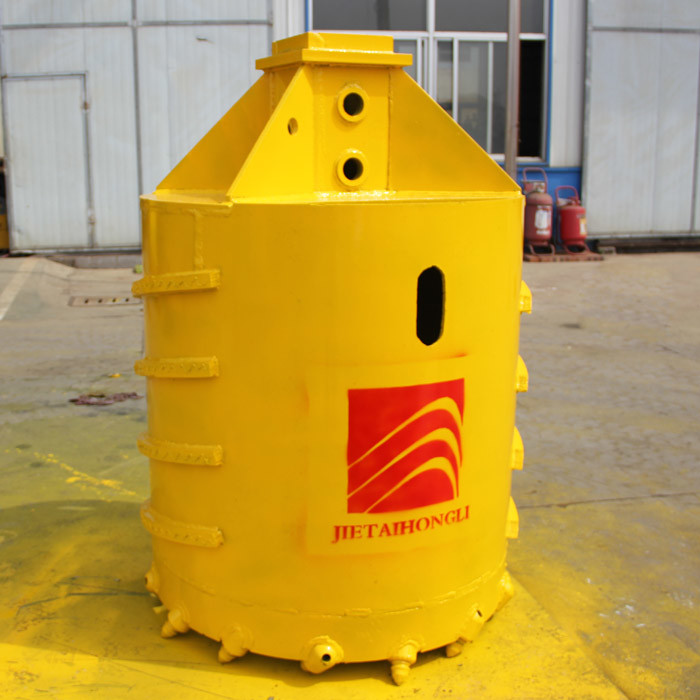

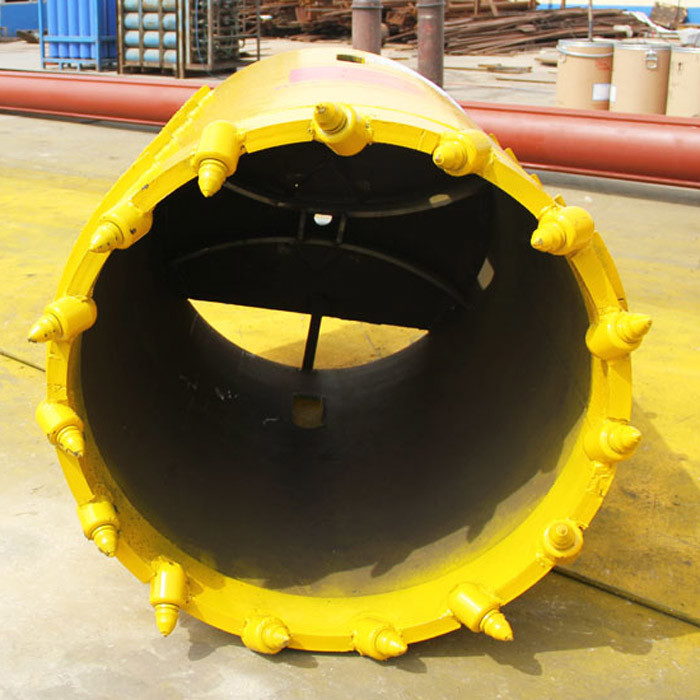

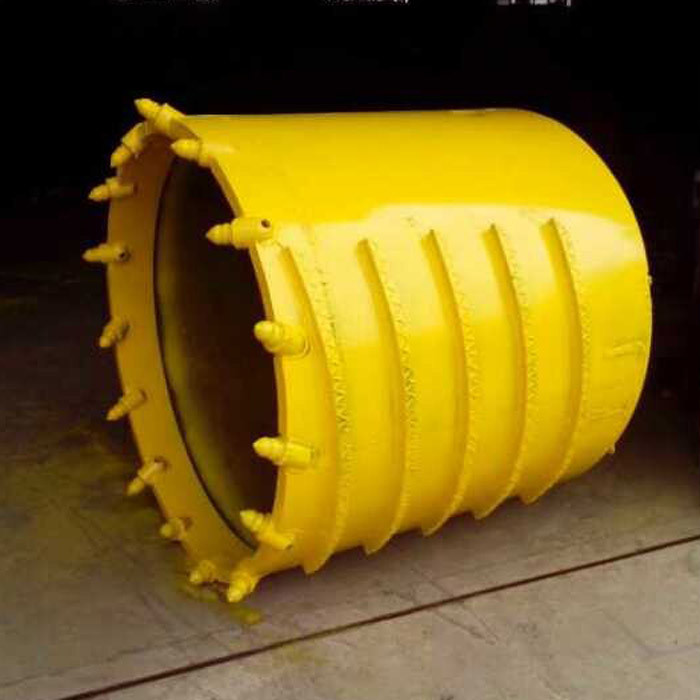

EXHIBITION :
