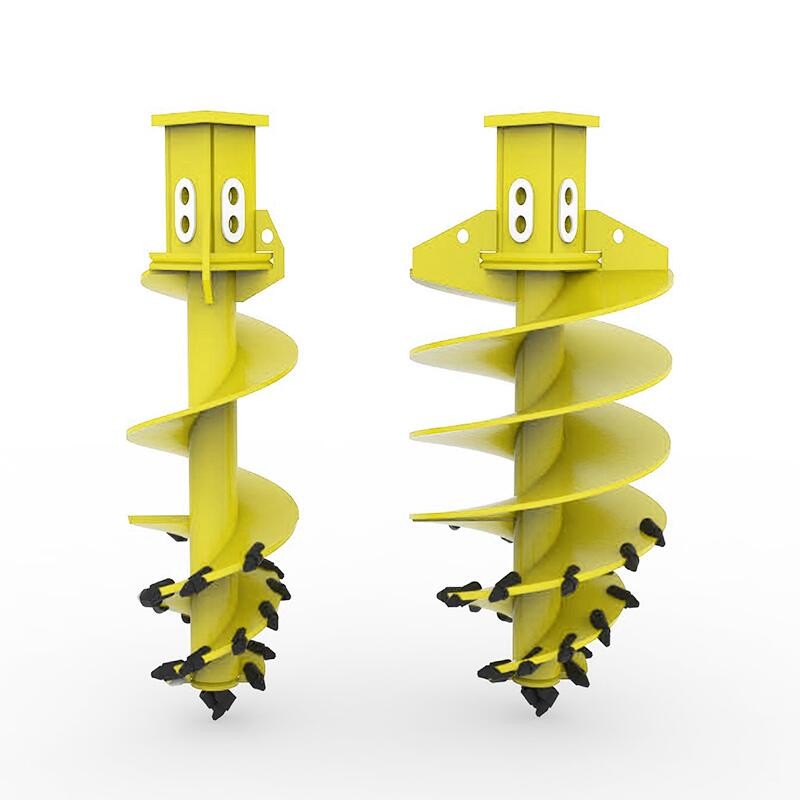

IMT Mait Rock Drilling Auger For Drilling Hole Piling Rig Tools
JTHL Drilling Augers
Parameter
| Product Name | Drilling Auger | |||
| Material | Q345B | |||
| Technique | Welding | |||
| Kelly Box | Bauer Type 200mm*200mm as usual | |||
| Teeth | B47K-17 or V19 | |||
| Diameter (mm) | Flight Length (mm) | Shell Thickness (mm) | Center Pipe (mm) | Flight Pitch (mm) |
| 600 | 1200 | 30 | 180*30 | 600 |
| 800 | 1200 | 30 | 220*30 | 600 |
| 1000 | 1200 | 30 | 220*30 | 600 |
| 1200 | 1200 | 30 | 220*30 | 600 |
| 1500 | 1200 | 30 | 220*30 | 600 |
| 1800 | 1200 | 30 | 220*30 or 273*30 | 600 |
| 2000 | 1200 | 30 | 220*30 or 273*30 | 600 |
|
Customize: 1. Diameter: 500~3000mm 2. Flight length: 1200~4000mm 3. Flight thickness: 16~40mm 4. Center pipe: 133mm*18mm, 152mm*30mm, 180mm*30mm, 220mm*30mm, 273mm*30mm 5. Kelly box: Bauer type(200*200mm, etc.), Sany type(200*200mm, 150*150mm, etc.), Soilmec type(75*75mm, 100*100mm, 130*130mm, etc.), etc. |
||||
Brief Introducion.
An auger is a drilling device, or drill bit, that usually includes a rotating helical screw blade called a "flighting" to act as a screw conveyor to remove the drilled out material. The rotation of the blade causes the material to move out of the hole being drilled.
In construction, augers are used for special drilling rigs to dig holes for deep foundation piles. Another use is for piles forming a piling retaining wall, which can be constructed in the same way as foundation piles.
Short augers are mainly divided into the following types:
I) Conical Rock Auger
II) Flat or Butterfly Rock Auger
III) Flat or Butterfly Clay/Earth/Soil Auger
Beijing Jietai Haoli Technology Development Co., Ltd., founded in 2004, headquartered in Beijing, branch factory in Shouguang, Shandong. The company is mainly engaged in the production and sales of rotary piling kelly bars , drilling tools, rotary piling rig overhaul, rig sales and accessories supply.
Over the years we focus on research and development of the production of kelly bars, drill tools, with complete kelly bars fabriction and testing equipments, as well as we own professional research , design, sales and after-sales service team. Our company has a number of self-developed patented products, matched with domestic and abroad brands such as SANY, CRRC, XCMG, Bauer, Soilmec, IMT and other brand rigs , exported to Southeast Asia, the United States, Russia, the Middle East and other countries.
Our company is equipped with the most advanced welding technology and processing equipments, and the variety of drill tools is complete. Our company is the first manufacturer of full casing in Shandong province, our products the drilling tools are widely used in the construction of various layers,and we also can help customers make targeted research of customized drilling tools.
We own professional maintenance workshop, hydraulic and electrical system maintenance, reducer maintenance and modification, etc., we can provide customers with timely maintenance services; We own spare parts warehouse in Shandong and Beijing, which can realize timely supply service.
Our company is based on the “Conduct myself faithfully,Concentrate on work” as the principle ,based on the service attitude of "customer-oriented", we dedicated to become a good partner with all the rotary drilling rig customers !
We are manufacturer for piling rig kelly bars and spares for more than 17 years old.
