Q355d/45Cr Concrete tremie pipe in piling 219mm 273mm 325mm diameter

Q355d/45Cr Concrete Tremie Pipe In Piling 219mm 273mm 325mm Diameter

• Tremie Pipe - During the operations they are lowered inside and through the steel cage reinforcement to protect concrete from soil contamination water filtering and to avoid any possible concrete quality corruption.

  Tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.Pipes section can be connected by two kinds of coupling systems: threaded joints and wire cable joints.

  While threaded tremie pipes are equipped with male/female joints with tread, the wire cable systwm is designed for quick assembly/dismounting of the various pipe sections during the concreting operations.

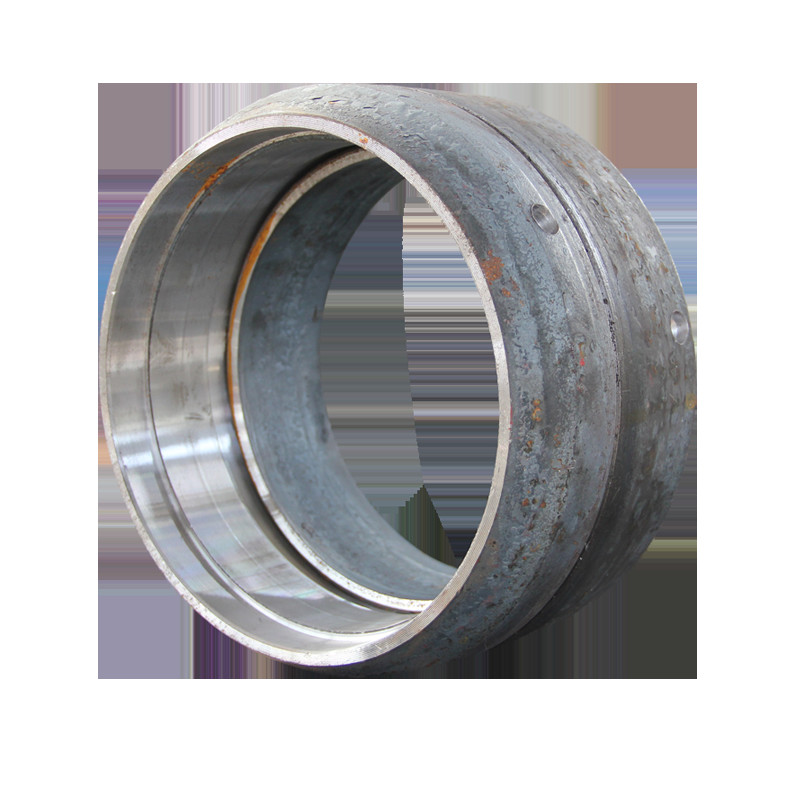

  Using wire cables joints water and mud penetrations is prevented by O-ring seals applied in between male and demale joints.

  Diameter Range: 219mm, 260mm, 300mm or as required

  Wall thickness: 3mm or as required

•

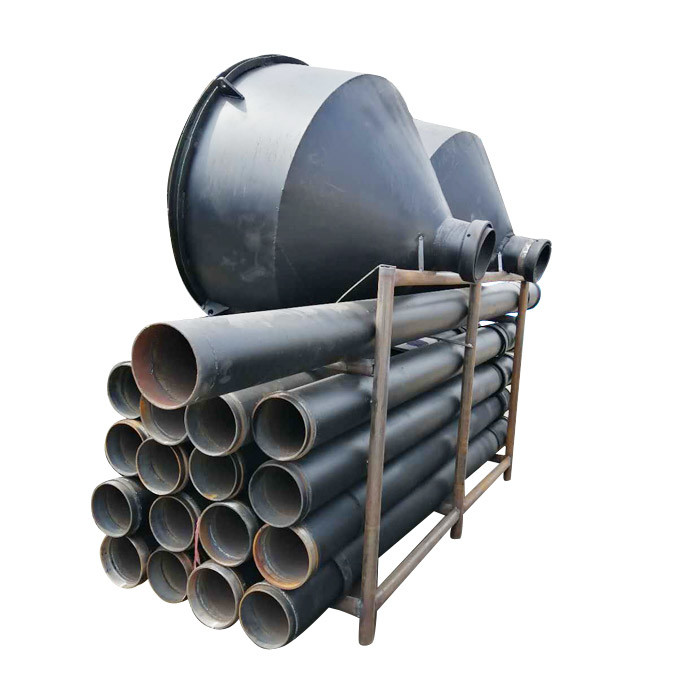

  1.Tremie Pipe with Wire Cables includes:

  Hopper, Lifting Cap, Wire Cables, O-Ring, Rack, Female Joint, Male Joint, Tremie Pipe, Tremie Rack.

  2.Tremie Pipe Threaded includes:

  Hopper, Female Joint, Male Joint, Tremie Pipe.

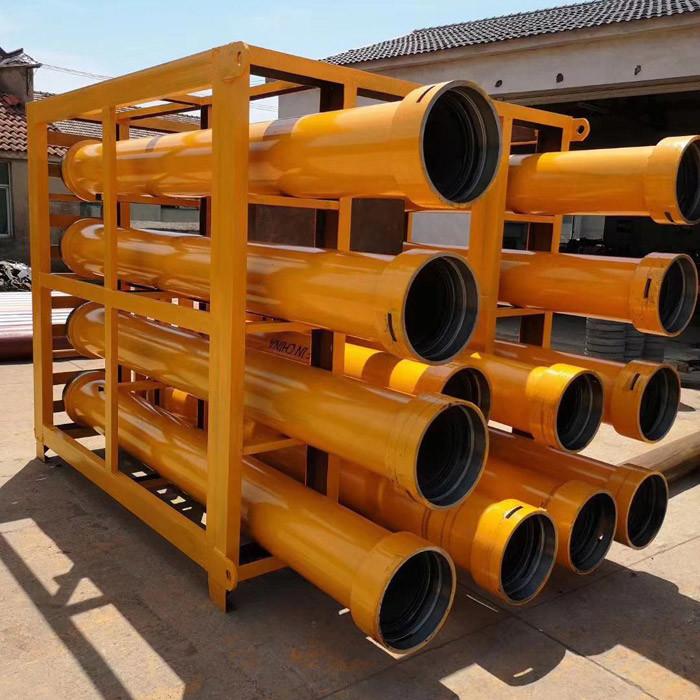

  TREMIE PIPES WITH WIRE CABLES

  Female Joint mm	Mle Joint mm	Tremie Pipe mm	Tremie Pipe Thickness mm	Weight for 1m kg
  274	248	219	3	40
  325	294	260	3	48
  374	338	300	3	65
  *Other dimensions are avaliable on request. Thickness can be customized

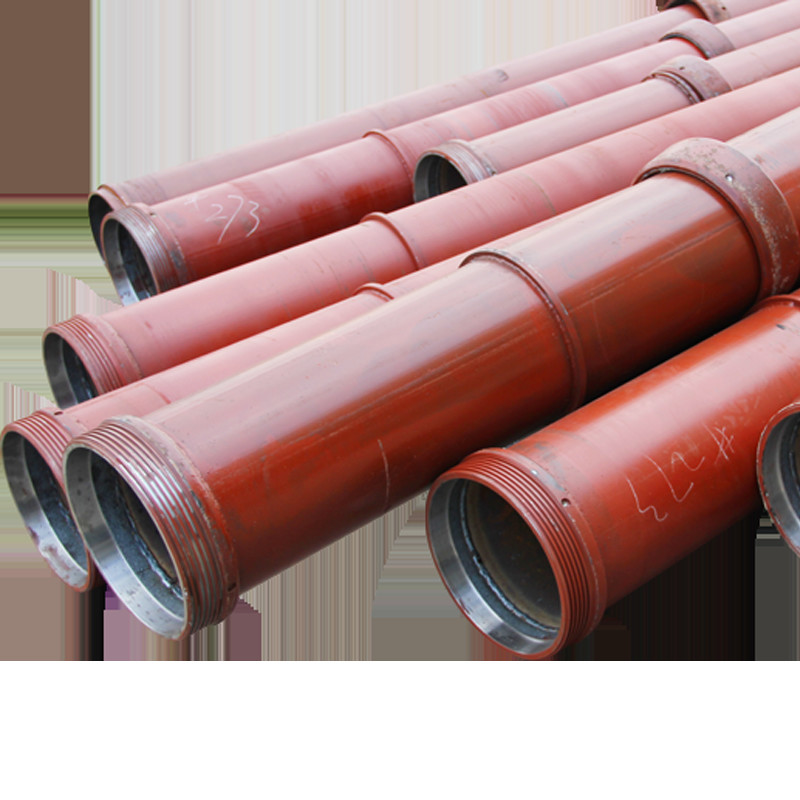

  TREADED TREMIE PIPES



  Female Joint mm	Mle Joint mm	Tremie Pipe mm	Tremie Pipe Thickness mm	Weight for 1m kg
  260	240	219	3	30
  306	286	260	3	32
  345	322	300	3	40
  *Other dimensions are available on request. Thickness can be customized
