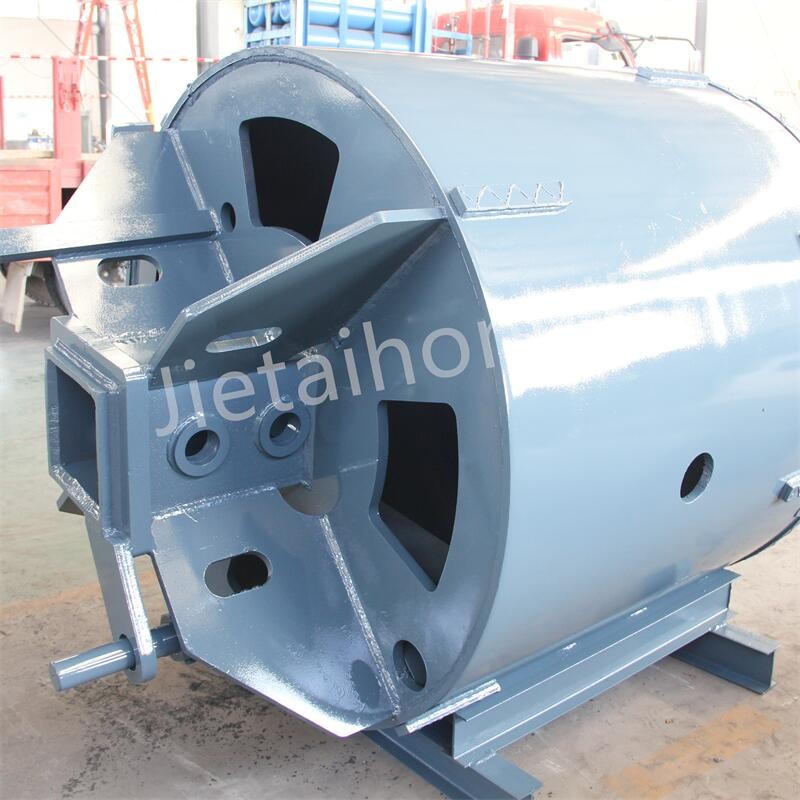

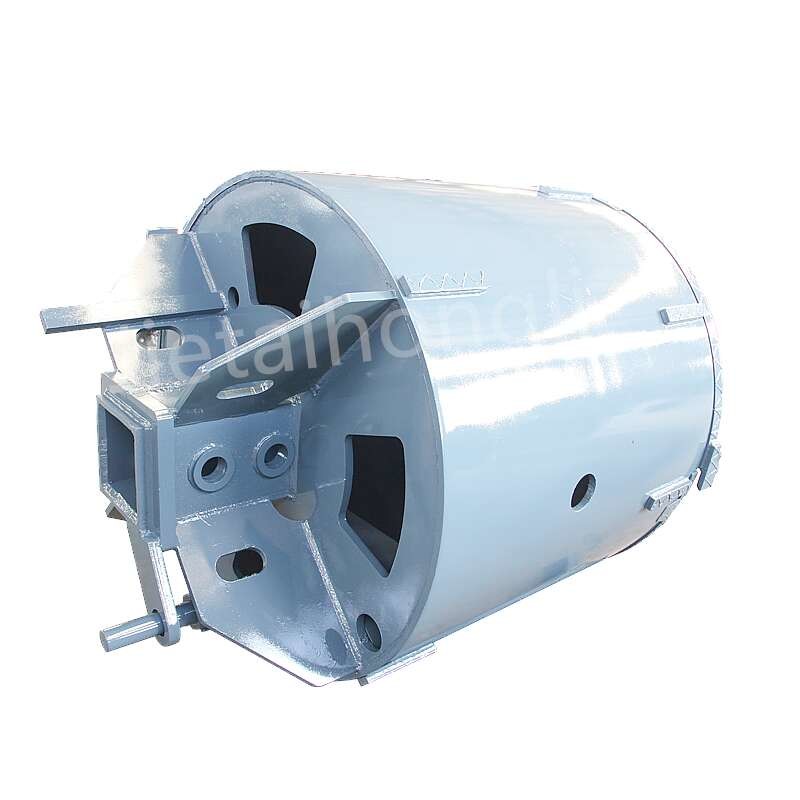

Dimensions Can Be Customized Rock Drilling Bucket Apply To Different Soil Layers
Overview
Place of Origin:Beijing, China
Brand Name:Jietaihongli
Model Number:OD600mm
Warranty:3 Month
Condition:New
Applicable Industries:Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Weight:800KGS
Suitable Excavator(ton):20-70T
Core Components:Bearing
Application:Piling Hole Construction
Name:Auger Bucket for Rock Layer and Soil Layer
Model:OD 400-OD3000mm
Material:Q355B
Suitable:Rock layer /Soil Layer
Applied equipment:Rotary Piling & drilling machine
Color:Customer Required
Keyword:Earth Hole Drilling Digger Machine
After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service
ROCK DRILLING BUCKETS TECHNICAL DATA
|
Driling Dia mm |
Shell Dia mm |
Shell Length mm |
Shell Thickness mm |
Teeth Qty pcs |
Single cut Weight kg |
Double cut Weight kg |
| 600 | 550 | 1200 | 16 | 5+2 | 712 | 682 |
| 700 | 650 | 1200 | 1620 | 6+2 | 866 | 826 |
| 800 | 700 | 1200 | 16/20 | 7+2 | 971 | 921 |
| 900 | 800 | 1200 | 16/20 | 10+1 | 1130 | 1061 |
| 1000 | 900 | 1200 | 16/20 | 8+4+2 | 1280 | 1190 |
| 1100 | 1000 | 1200 | 16/20 | 10+4+2 | 1440 | 1360 |
| 1200 | 1100 | 1200 | 16/20 | 10+4+2 | 1643 | 1513 |
| 1300 | 1200 | 1200 | 16/20 | 12+4+2 | 1938 | 1778 |
| 1400 | 1300 | 1200 | 16/20 | 13+4+2 | 2100 | 1919 |
| 1500 | 1400 | 1200 | 16/20 | 14+4+2 | 2304 | 2164 |
| 1600 | 1500 | 1200 | 16/20 | 16+4+2 | 2668 | 2428 |
| 1700 | 1600 | 1000 | 16/20 | 16+4+4 | 2535 | 2405 |
| 1800 | 1700 | 1000 | 20 | 18+4+4 | 3207 | 2957 |
| 2000 | 1900 | 800 | 20 | 20+4+4 | 3567 | 3247 |
| 2200 | 2100 | 800 | 20 | 22+4+4 | 4137 | 3787 |
| 2500 | 2400 | 800 | 20 | 24+4+4 | 4716 | 4236 |
Customized Drilling Buckets
(1). Kelly Box: design various type and size 130*130, 150*150,200*200 or as required.
(2).Shell Height: design as demand, according to the piling diameter and soil condition prolong or shorten, increase of efficiency by drilling more.
(3).Cutter: single cutter or double cutter and single bottom or double bottom design as demand;
(4).Bottom Open Mechanic : half-automatic or manul mechanic bottom open system.
(5).Model of Teeth:
Rock Bits:B47K20H, B47K19H, B47K17H, 3050, 3060, 3065,C30, C31HD, B85, B43H,etc..
Clay Teeth:18TL, 18HD, 25VIP, 18VIP, 25T, 25HD, 22T,833-18,855,etc
