Bored Drilling Tools Cleaning Rock Drilling Bucket for Piling Machine IMT AF180 AF220 AF240 AF270

Bored Drilling Tools Cleaning Rock Drilling Bucket for Piling Machine IMT AF180 AF220 AF240 AF270

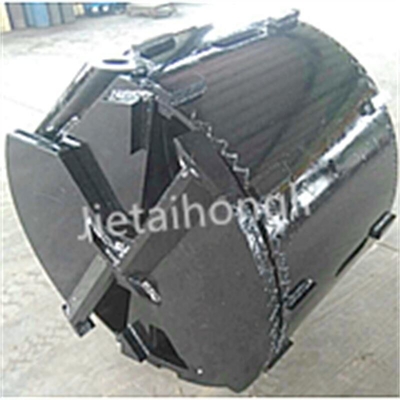

JTHL Drilling Tools Cleaning Buckets

DRILL BUCKET WITH FLAT TEETH FEATURE:

• FEATURE :

  1. Choose cone or straight bucket according to different working conditions;

  2.Choose straight guide plate or no guide plate according to different working conditions;

  3. Applicable scope: clean spoil at pile bottom, soft layer;

  Drilling Tool Model
  Model	Size	Height	Bucket Thickness	Upper Bottom Thickness	Lower Bottom Height	No of teeth	Weight
  Cleaning Bucket	φ600	800	16	40	200	/	432
  	φ700	800	16	40	200	/	513
  	φ800	800	16	40	200	/	622
  	φ900	800	16	40	200	/	724
  	φ1000	800	16	40	200	/	837
  	φ1100	800	16	40	200	/	959
  	φ1200	800	16	40	200	/	1086
  	φ1250	800	16	40	200	/	1154
  	φ1300	800	16	40	200	/	1242
  	φ1400	800	16	40	200	/	1392
  	φ1500	600	16	40	200	/	1477
  	φ1600	600	16	40	200	/	1649
  	φ1700	600	16	40	200	/	1826
  	φ1800	600	16	50	200	/	2293
  	φ1900	600	16	50	200	/	2518
  	φ2000	600	20	50	200	/	3046
  	φ2200	600	20	50	200	/	3481
  	φ2500	600	20	50	200	/	4392
  	φ2800	600	20	50	200	/	5607
  	φ3000	600	20	50	200	/	6377
  Kelly Box	Sany--150		Bauer--200			Bauer--250



Drill buckets are mainly used for sandy soil, sludge, clay , muddy sandy gravel and weathered soft formation . The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions . the welding angle of bucket teeth can be designed according to formation conditions so that the drilling buckets can keep high efficiency of soil cutting amount in any formation conditions .

The bottom cove if made of high-strength Mn plate, and the cutting dege includes single-layer type and double-layer type; the soul inlet also includes single-bottom type and double-bottom type .

Beijing Jietai Haoli Technology Development Co., Ltd., founded in 2004, headquartered in Beijing, branch factory in Shouguang, Shandong. The company is mainly engaged in the production and sales of rotary piling kelly bars , drilling tools, rotary piling rig overhaul, rig sales and accessories supply.

Over the years we focus on research and development of the production of kelly bars, drill tools, with complete kelly bars fabriction and testing equipments, as well as we own professional research , design, sales and after-sales service team. Our company has a number of self-developed patented products, matched with domestic and abroad brands such as SANY, CRRC, XCMG, Bauer, Soilmec, IMT and other brand rigs , exported to Southeast Asia, the United States, Russia, the Middle East and other countries.

Our company is equipped with the most advanced welding technology and processing equipments, and the variety of drill tools is complete. Our company is the first manufacturer of full casing in Shandong province, our products the drilling tools are widely used in the construction of various layers,and we also can help customers make targeted research of customized drilling tools.

We own professional maintenance workshop, hydraulic and electrical system maintenance, reducer maintenance and modification, etc., we can provide customers with timely maintenance services; We own spare parts warehouse in Shandong and Beijing, which can realize timely supply service.

Our company is based on the “Conduct myself faithfully,Concentrate on work” as the principle ,based on the service attitude of "customer-oriented", we dedicated to become a good partner with all the rotary drilling rig customers !

We are manufacturer for piling rig kelly bars and spares for more than 17 years old.
