Rock Drilling Auger adopts the high-carbon steel and special drilling bits angle to keep the drilling strength and efficiency.
There are three types of drilling auger:
1) Continuous Flight Auger and auger head

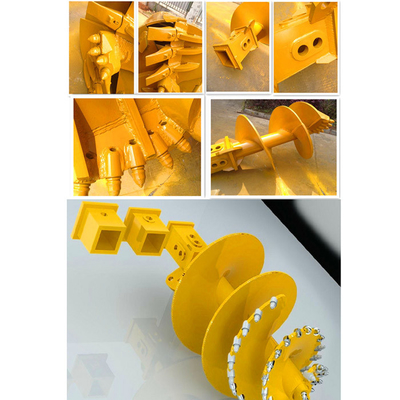

Different types of couplings being used as per the torque, drilling diameter and depth;
Quadrangle, hexagonal and octagonal coupling available;
Coupling with high-quality material proceeded by CNC machine and heat teratment;

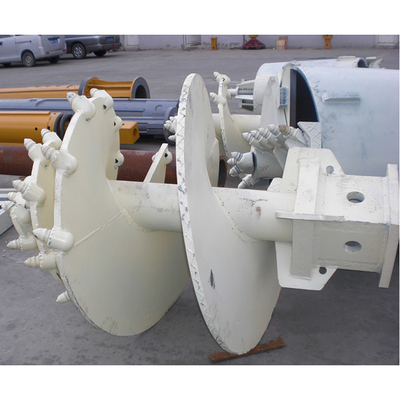

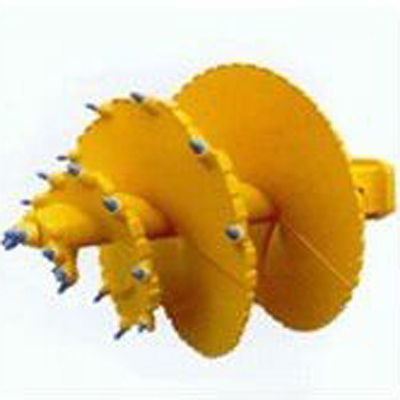

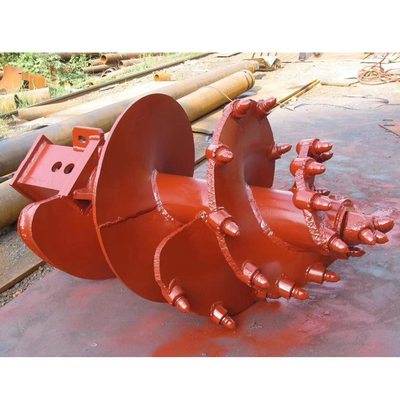

2) Conical Auger (Single Cut Auger and Double Cut Auger )
Drilling Diameter Range: 600~2500mm
Main Applications:
Single Cut Augers and Double Cut Augers are suitable for drilling in medium to strong rock (15~60MPa)
Double Cut Augers are recommended for bigger diameters uncased boreholes.
FEATURE :
1 Single Cut Augers and Double Cut Augers are suitable for drilling in medium to strong rock (15~60MPa)
2 Sturdy and wearable rock pilot for accurate positioning
3 Hard facing strips for wear protection and service life extending
4 Kelly box size as per customer demand
| Single-cut | Double-cut | ||||

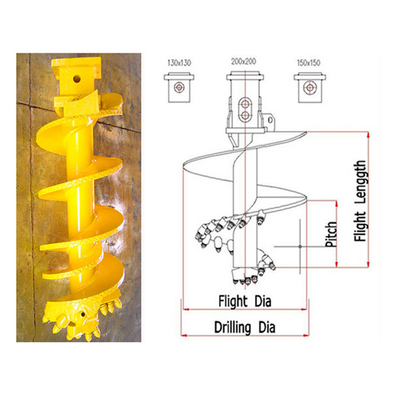

| Drilling Dia.(mm) | Flight Dia. (mm) | Pitch(mm) | Flight Length(mm) | Weight(kg) | Weight(kg) |
| 600 | 550 | 600 | 1200 | 438 | 537 |
| 700 | 650 | 600 | 1200 | 467 | 596 |
| 800 | 750 | 600 | 1200 | 512 | 708 |
| 900 | 850 | 600 | 1200 | 586 | 775 |
| 1000 | 950 | 600 | 1200 | 633 | 871 |
| 1100 | 1050 | 600 | 1200 | 674 | 958 |
| 1200 | 1150 | 600 | 1200 | 718 | 1047 |
| 1300 | 1250 | 600 | 1200 | 767 | 1145 |
| 1400 | 1350 | 600 | 1200 | 821 | 1253 |
| 1500 | 1450 | 600 | 1200 | 875 | 1367 |
| 1800 | 1750 | 600 | 1200 | 1081 | 1766 |
* Other sizes can be manufactured as per customer demand
