Concrete Tremie Pipe Tremie Hopper
|
item
|
value
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Place of Origin
|
China
|
|
Brand Name
|
JTHL |
|
Warranty
|
Unavailable
|
|
Applicable Industries
|
Construction works
|
|
Weight
|
58
|
|
Core Components
|
Gear
|
|
Application
|
Cast concrete,isolate it from water
|
|
Name
|
Tremie pipe
|
|
Material
|
Steel plate
|
|
Color
|
customized
|
|
length
|
0.5m/1m/1.5m/2m/3m/4m
|
|
Diameter
|
up to 300mm
|
|
Suitable for
|
drill rig
|
|
Thickness
|
2mm to 10mm or more
|
|
MOQ
|
10
|
|
OEM
|
Avaliable
|

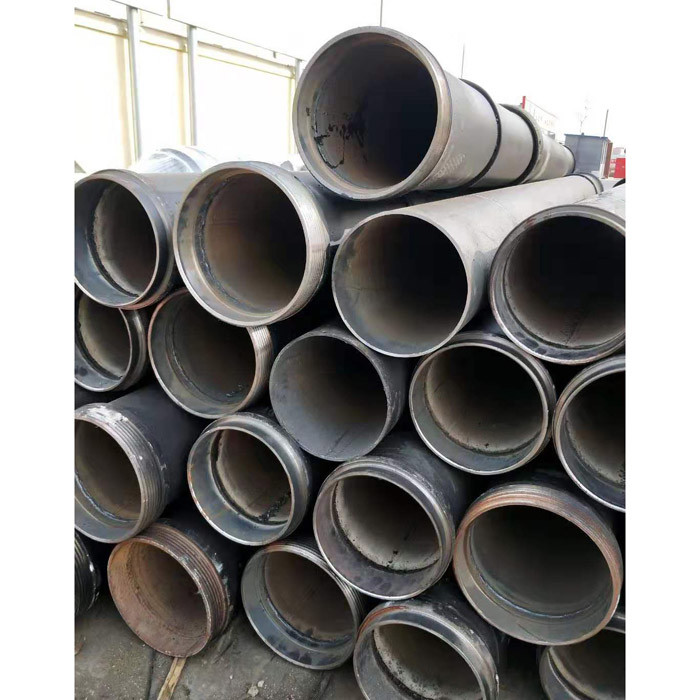

Applications: The tremie Pipes are used to cast concrete and isolate it from the water.
Sections of tremie pipes are connected with steel cable to reach certain depth underground. Concrete is casted from ground through the tremie pipes, and the tremie pipes will be lifted up and removed one section after another in the process until concrete is fully casted.
Tremie Pipe with Wire Cables includes:
Hopper, Lifting Cap, Wire Cables, O-Ring, Rack, Female Joint, Male Joint, Tremie Pipe, Tremie Rack.
Tremie Pipe Threaded includes:
Hopper, Female Joint, Male Joint, Tremie Pipe.
1. Material : 35CrMo
2. OD size as your requirment
3. High efficiency
4. Low price and best service
the whole set is 61M , adjustable pipe 0.5M/pcs,1M/pcs,1.5M/pcs , bottom pipe is 4M/pcs and the standard pipe is 18pcs *3M/pcs .
The accessories compatible with rotary drilling rig includes:
mud mixer, tremie pipe, wellhead jacket, funnel,wrench,lifting lug,clean-out auger and so on
