OD600 /800 /1200/1500/2000/2500 mm CLEANING Bucket Q345B

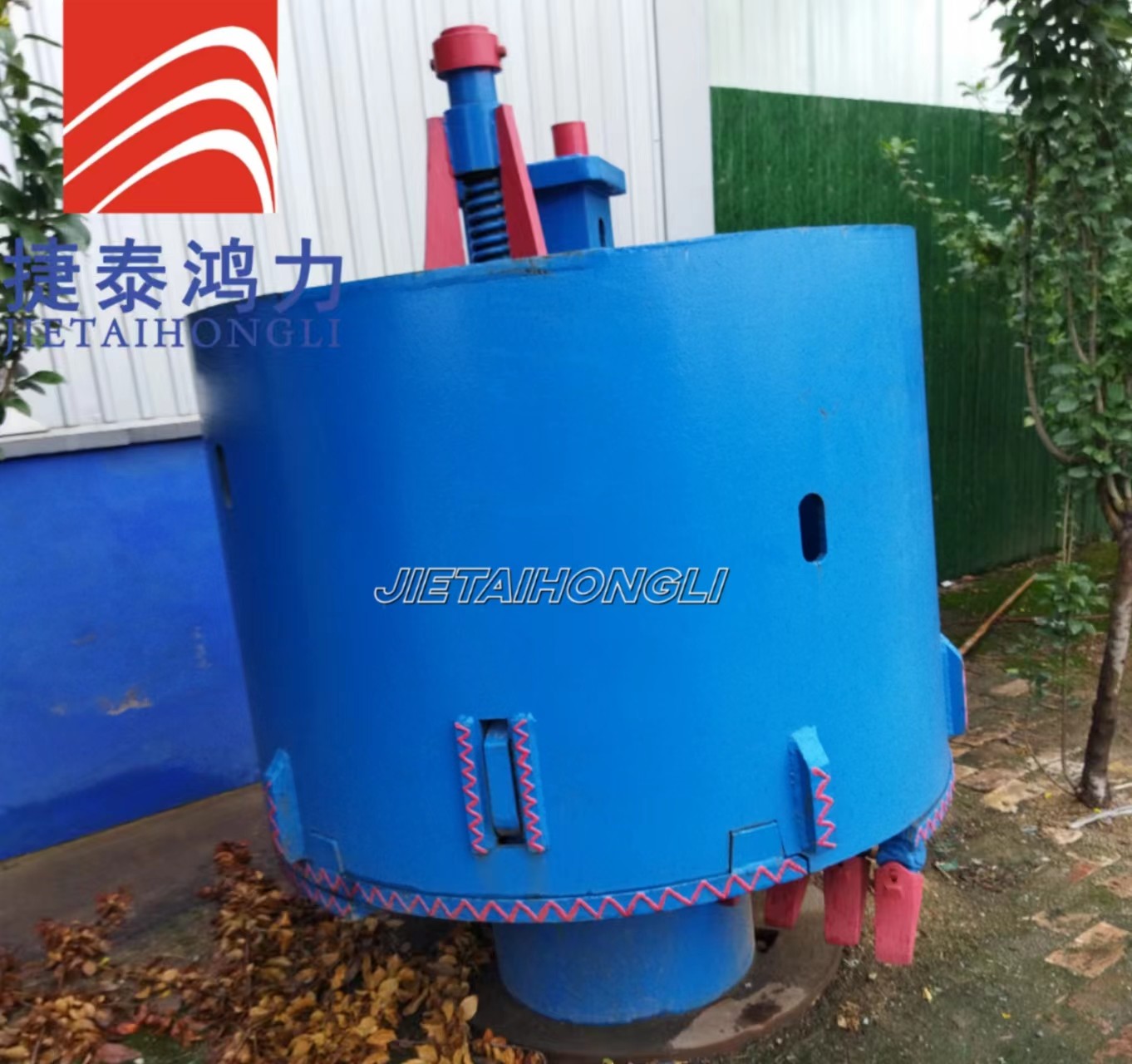

CLEANING BUCKET WITH ROCK TEETH
The beneficial effects of the utility model are:
The rotary drilling barrel hole cleaning bit is simple, efficient and environmental friendly, which can greatly save the time of hole cleaning in the drilling process of rotary drilling, and has good economic benefits. In addition, there is no need to manually enter the bottom of the borehole for cleaning, which avoids the occurrence of safety accidents and greatly improves the construction safety.
|
Drilling Tool Model
|
|||||||
| Model | Cleaning Diameter | Shell Height |
Shell Outside Diameter |
Shell Bottom Thickness |
Fixed Bottom Thickness |
Rotate Bottom Thickness |
Weight |
|
Cleaning Bucket with Rock Drilling Bits |
φ600 | 800 | 500 | 16 | 40 | 40 | 500 |
| φ800 | 800 | 700 | 16 | 40 | 40 | 780 | |
| φ900 | 800 | 800 | 16 | 40 | 40 | 860 | |
| φ1000 | 800 | 900 | 16 | 40 | 50 | 980 | |
| φ1200 | 800 | 1100 | 16 | 40 | 50 | 1270 | |
| φ1500 | 600 | 1400 | 16 | 40 | 50 | 1570 | |
| φ1600 | 600 | 1500 | 16 | 40 | 50 | 1900 | |
| φ1800 | 600 | 1700 | 16 | 50 | 50 | 2480 | |
| φ2000 | 600 | 1900 | 20 | 50 | 50 | 3000 | |
| φ2200 | 600 | 2100 | 20 | 50 | 50 | 3570 | |
| φ2500 | 600 | 2400 | 20 | 50 | 50 | 4680 | |
| φ2800 | 600 | 2700 | 20 | 50 | 50 | 5330 | |
| φ3000 | 600 | 2900 | 20 | 50 | 50 | 6125 | |
| Kelly Box | Sany--150 | Bauer--200 | Bauer--250 | ||||
