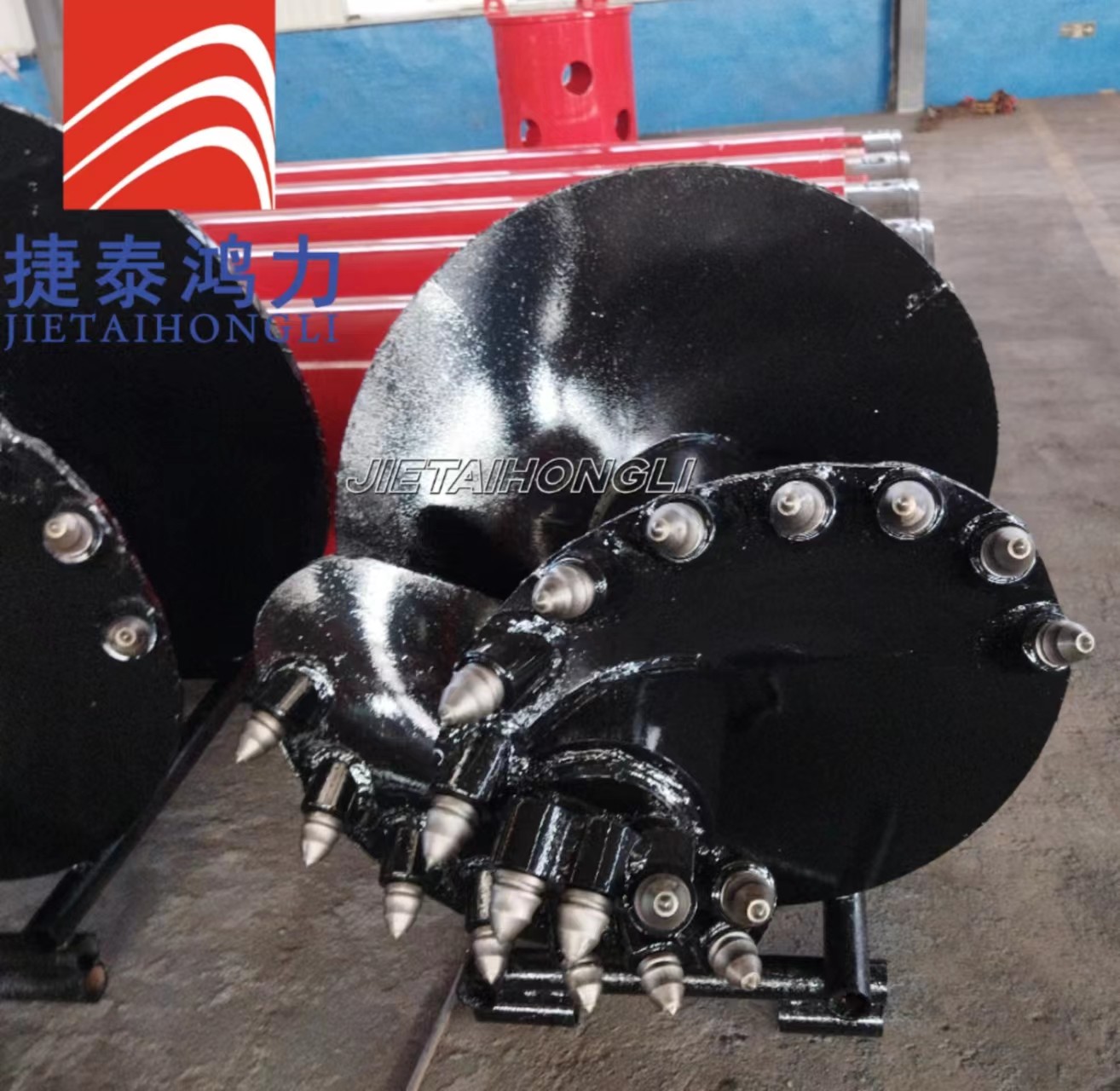

Conical Auger For Rotory Drilling Rigs OD600-1500
Application:Foundation Drilling Hole
Type:Conical Auger
Max Diameter :600-1500
Teeth Number:10-31
(1)Cutting DIA, Custom: design various cutting diameter based on demand, like φ950 φ1050 etc.
(2)Key Component Reinforce Custom: strengthen the key component to extend life cycle.
(3)Kelly Box Custom: custom kelly box size based on the kelly bar, like150*150 200*200 250*250 etc.
(4)Teeth No. Custom: Encrypt the drilling teeth based on demand etc.
(5)Spiral HIT. Custom: design as demand,prolong or shortten , increase of efficiency by drilling more.
(6)Spiral Pitch Custom: adjust the spiral pitch according to different to extend life cycle.
| OEM/ODM | Both |
| Material | Q345B /Q460D / 35CrMo With Special Heat Treatment /27SiMn |
| Manufacture Process | Robot Welding ,Gas Shielded welding , Manual DC Welding |
| Tailored | Round /Square |
Specification
| Tools Type |
Diammeter
|
Spiral HIT | BLADE THICKNESS | Center Tube OD(m) | Teeth Number | Weight |
| 1 | 600 | 1200 | 20+30 | 219 | 10 | 475 |
| 2 | 700 | 1250 | 20+30 | 219 | 10 | 520 |
| 3 | 800 | 1250 | 20+30 | 219 | 12 | 590 |
| 4 | 900 | 1250 | 20+30 | 219 | 12 | 610 |
| 5 | 1000 | 1250 | 20+30 | 219 | 13 | 670 |
| 6 | 1200 | 1250 | 20+30 | 219 | 14 | 930 |
| 7 | 1500 | 1250 | 20+30 | 273 | 17 | 1400 |
| 8 | 600 | 1200 | 20+30 | 219 | 18 | 550 |
| 9 | 700 | 1250 | 20+30 | 219 | 22 | 590 |
| 10 |
800
|
1250 | 20+30 | 219 | 22 | 675 |
| 11 | 900 | 1250 | 20+30 | 219 | 24 | 755 |
| 12 |
1000 |
1250 | 20+30 | 219 | 26 | 850 |
| 13 | 1200 | 1250 | 20+30 | 219 | 31 | 1175 |
| 14 | 1500 | 1250 | 20+30 | 273 | 32 - 102 |
1470
|
Our company founded in 2004, headquartered in Beijing, branch factory in Shouguang, Shandong. The company is mainly engaged in the production and sales of rotary piling kelly bars , drilling tools, rotary piling rig overhaul, rig sales and accessories supply.
Over the years we focus on research and development of the production of kelly bars, drill tools, with complete kelly bars fabriction and testing equipments, as well as we own professional research , design, sales and after-sales service team. Our company has a number of self-developed patented products, matched with domestic and abroad brands such as SANY, CRRC, XCMG, Bauer, Soilmec, IMT and other brand rigs , exported to Southeast Asia, the United States, Russia, the Middle East and other countries.
Why choose our company ?
Ans.:
1. With more than 17 years experience of manufcaturer kelly bars and piling tools.Own the advanced manufacturer facilities,robot welding and mature working team whcih can make our products more durable and high quality .
2. We use super quality seamless steel pipe material, which makes the kelly bar light weight, high vertical, high wear resistance. our kelly bar with competitive and reasonable price.
3. We own two factories ,one is focus on kelly bar manufacture a.another one is foucs on drilling tools and casing.And own two big stocks ,one stock located in Beijing near airport and Tianjin Port ,another stock located in Shandong near Qingdao port,which can supply timely and efficient delivery of goods.
4. We can supply the oversea after-sale service available . Now our professional maintenance technology ,competitive price and good service have gotten support from domistic and abroad clients' support.
