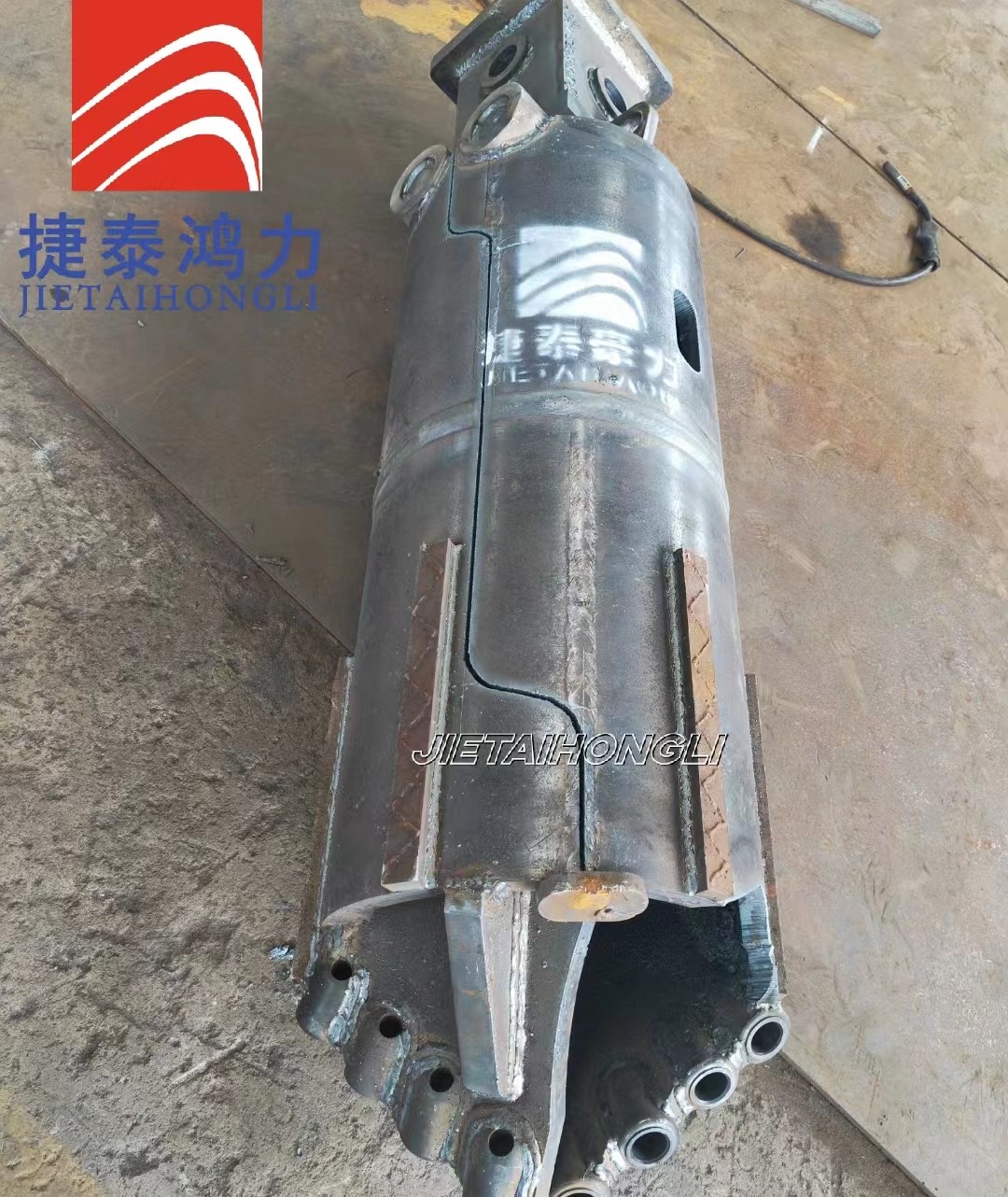

OD1200 mm Rock Drilling Bucket for rotary Drilling rig construction
ROCK BUCKET
FEATURE :
1.Drilling buckets are mainly used for drilling water-bearing sandy soil, sludge, clay, muddy sub clay, sandy gravel, cobble, and
weathered soft formation.
2.The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil
conditions.
3.The welding angle of bucket teeth can be designed according to formation conditions so that the drilling buckets can keep high
efficiency of soil cutting amount in any formation conditions.
4.The bottom cover is made of high-strength Mn plate, and the cutting edge includes single-layer type and double-layer type.
5.The soil inlet also includes single-bottom type and double-bottom type.
|
Drilling Tool Model
|
|||||||
| Model | Size | Height |
Bucket Thickness |
Upper Bottom Thickness |
Lower Bottom Thickness |
No of teeth |
Weight |
|
Drilling Bucket with Rock Drilling Bits |
φ600 | 1200 | 16 | 40 | 40 | 8 | 750 |
| φ800 | 1200 | 16 | 40 | 50 | 11 | 965 | |
| φ900 | 1200 | 16 | 40 | 50 | 11 | 1135 | |
| φ1000 | 1200 | 16 | 40 | 50 | 13 | 1190 | |
| φ1200 | 1200 | 16 | 40 | 50 | 15 | 1550 | |
| φ1500 | 1200 | 16 | 40 | 50 | 19 | 2100 | |
| φ1600 | 1200 | 16 | 40 | 50 | 19 | 2400 | |
| φ1800 | 1000 | 20 | 50 | 50 | 21 | 2900 | |
| φ2000 | 800 | 20 | 50 | 50 | 23 | 3450 | |
| φ2200 | 800 | 20 | 50 | 50 | 26 | 4100 | |
| φ2500 | 800 | 20 | 50 | 50 | 29 | 5000 | |
| φ2800 | 800 | 20 | 50 | 50 | 33 | 6100 | |
| φ3000 | 800 | 20 | 50 | 50 | 35 | 7200 | |
| Kelly Box | Sany--150 | Bauer--200 | Bauer--250 | ||||
| Bottom Type | Double bottom and double cut | Single bottom and single cut | |||||
FAQ
1. Who are we?
We are based in Beijing, China, start from 2009,sell to South Asia(30.00%),Domestic Market(20.00%),Southeast Asia(8.00%),South America(5.00%),Western Europe(5.00%),Mid East(5.00%),North America(5.00%),Central America(5.00%),Africa(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Interlock Kelly Bar,friction kelly bar,drill bucket,casing,used bored piling rig
4. Why should you buy from us not from other suppliers?
Our company mainly produce the kelly bar,drill bucket, casing,used rig ,drill spare. we have the professional engineers and team, focusing on the manufacture of kelly bar, drill tools,casing series for 16 years, can satisfy different clients requirement.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western
