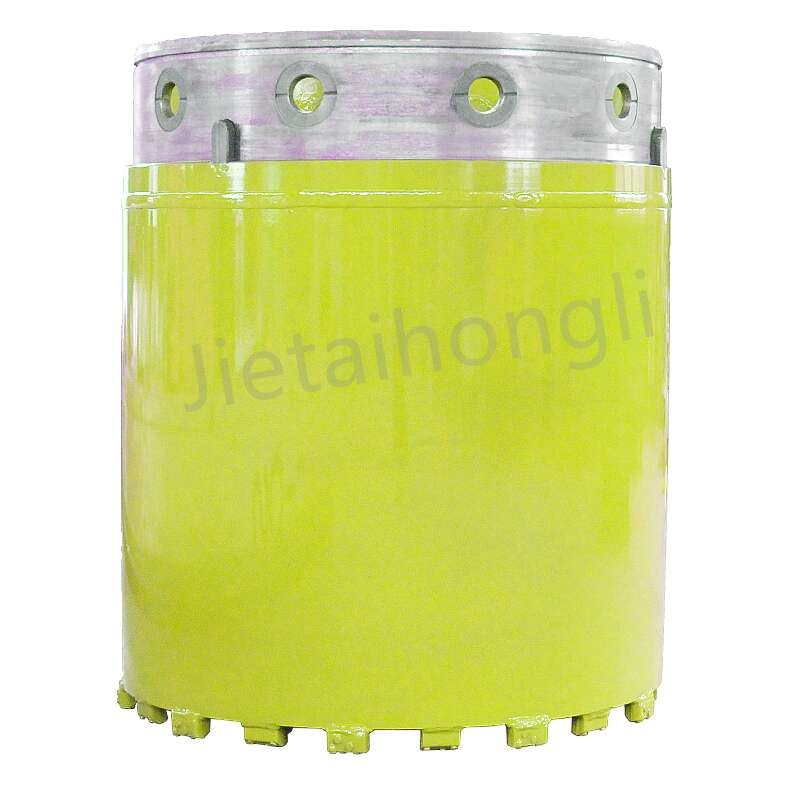

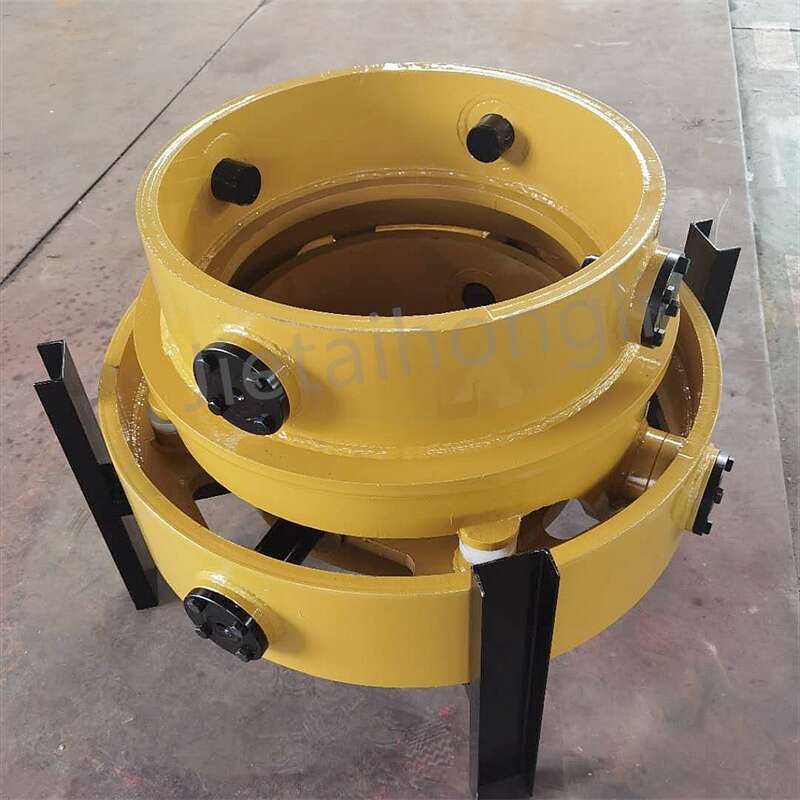

casing shoe adapter driver for piling rig construction machine borehole brand Bauer made by JTHL
Drilling Casing Items adopt the high-carbon steel (Q345B, 16Mn, Q195-Q345, etc.) and special welding method to keep the drilling strength and efficiency.
Rotary Casing Pipe is obtained by driving a steel siding into the ground in order to protect the whole drilling operation; basically, the rotary drilling tool during the working process performs inside mechanical protection made by the casing fixed into the ground.
Purchase the standard drilling casing items.
Single-walled rotary casings pipe can be used for applications where weight reduction is important.
Features: High-quality raw materials with superior strength from the leading manufacturers.
Experienced technicians and operators to assure the best quality.
Engineers are available to service machinery overseas.
SINGLE WALL USING PIPES TECHNICAL DATA
| Diameter | Length | Casing Wall Thickness | Casing Wall Thickness | Bolt QTY | |||||
| D1/D2 | 1m | 2m | 3m | 4m | 5m | 6m | T | B | Bolt |
| mm | Weight(KG) Parts No. | mm | mm | Nos | |||||
| 1300/1200 | 845 | 1475 | 2105 | 2735 | 33656 | 3995 | 20 | 40 | 12 |
| 1500/1400 | 1310 | 2220 | 3130 | 4040 | 4950 | 5860 | 25 | 50 | 12 |
| 1800/1700 | 1580 | 2675 | 3770 | 4865 | 5960 | 7055 | 25 | 50 | 16 |
| 2000/1880 | 2140 | 3355 | 4570 | 5785 | 7000 | 8215 | 25 | 60 | 12 |
| 2200/2080 | 2350 | 3690 | 5030 | 6370 | 7710 | 9050 | 25 | 60 | 12 |
| 2500/2380 | 2575 | 4100 | 5625 | 7150 | 8675 | 10200 | 25 | 60 | 16 |
Double-walled rotary casings pipe can be used universally, as they are designed especially for transmitting high rotational and vertical forces as created by the rig rotary drives or oscillations.
The use of double-walled casings ensures a flush drill string.
Features: High-quality raw materials with superior strength from the leading manufacturers.
Experienced technicians and operators to assure the best quality.
Engineers are available to service machinery overseas.
DOUBLE-WALL CASING PIPES TECHNICAL DATA
| Diameter | Length | Casing Wall Thickness-1 | Casing Wall Thickness-2 | Total Thickness | Bolt QTY | |||||
| D1/D2 | 1m | 2m | 3m | 4m | 5m | 6m | A1 | A2 | T2 | Bolt |
| mm | Weight(KG) Parts Number | mm | mm | mm | (Nos) | |||||
| 620/540 | 403 | 739 | 1074 | 1411 | 1747 | 2081 | 12 | 8 | 40 | 8 |
| 750/670 | 492 | 902 | 1311 | 1722 | 2131 | 2540 | 12 | 8 | 40 | 10 |
| 880/800 | 585 | 1069 | 1552 | 2036 | 2520 | 3005 | 12 | 8 | 40 | 10 |
| 1000/920 | 669 | 1221 | 1773 | 2328 | 2877 | 3429 | 12 | 8 | 40 | 10 |
| 1180/1100 | 844 | 1580 | 2316 | 3052 | 3787 | 4522 | 16 | 8 | 40 | 12 |
| 1200/1120 | 872 | 1620 | 2370 | 3120 | 3870 | 4620 | 16 | 8 | 40 | 12 |
| 1300/1220 | 933 | 1746 | 2558 | 3372 | 4184 | 4996 | 16 | 8 | 40 | 12 |
| 1500/1400 | 1433 | 2628 | 3817 | 5009 | 6210 | 7393 | 20 | 10 | 50 | 12 |
| 1800/1700 | 1730 | 3166 | 4602 | 6038 | 7474 | 8910 | 20 | 10 | 50 | 16 |
| 2000/1880 | 2450 | 4280 | 6110 | 7940 | 9770 | 11600 | 20 | 15 | 60 | 12 |
| 2200/2080 | 2700 | 4720 | 6740 | 8760 | 10780 | 12800 | 20 | 15 | 60 | 12 |
| 2500/2380 | 2960 | 5240 | 7520 | 9800 | 12080 | 14360 | 20 | 15 | 60 | 16 |

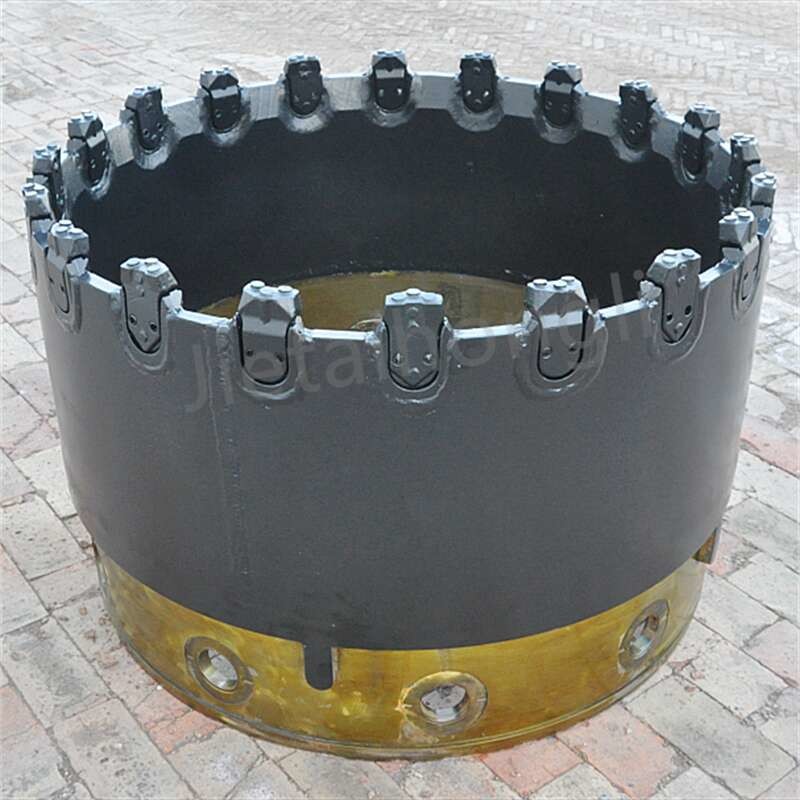

casing shoes adapter driver for piling rig construction machine bore hole brand Bauer made by JTHL
Due to space limitations, not all product details are displayed. For details, please consult Jack An,
