Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm

1
MOQ
USD+1000-3000+set
Price
Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel ,Q355d
Service: OEM ODM,Customized OEM
Product Name: Foundation Casting
Surface Treatment: Polishing,painting
Certification: ISO9001 (2000)
Lead Time: 3-7days For Sample Order
Color: Customized
Condition: 100% New
Highlight:

40Cr casing joint

,

25Crmo casing joint

Basic Infomation
Place of Origin: beijing
Brand Name: jthl
Certification: ISO9001
Model Number: 1080/1000 1280/1200
Payment & Shipping Terms
Packaging Details: exported standard package
Payment Terms: Western Union, T/T, D/P, L/C
Supply Ability: 1000+set +year
Product Description

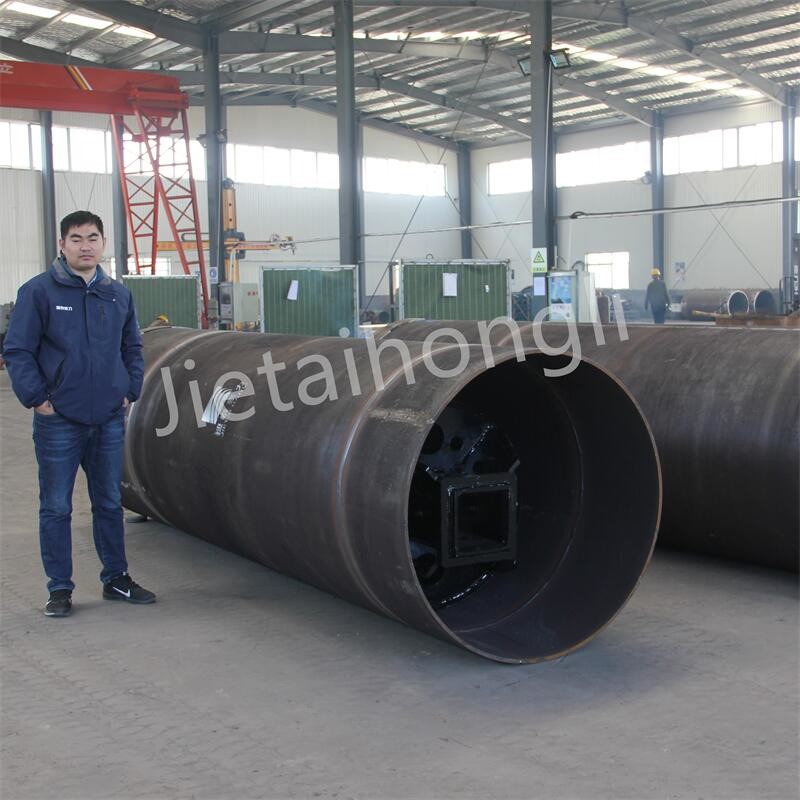

      Rotary Casing Pipe is obtained by driving a steel soding into the ground in order to protect the whole drilling operation; Basically, the rotary drilling tool during the working process, performs inside a mechanical protection made by the casing fixed into the ground.

       Double wall rotary casing pipe can be used universally, as they are designed especially for transmitting high rotational and vertical forces as created by the rig rotary drives or oscillations.The use of double wall casings ensures a flush drill string.

Single wall rotary casing pipe can be used for applications where weight reduction is important.



Drilling Diameter Range: 620~2500mm

Wall thickness: 20~60mm

Double Wall Casing Pipe 25CrMo Casing Joint Casing Shoe WS39 Teeth Bauer Drilling Rig Casings

1. Welding:Full robot welding, submerged arc welding, no seams

2. Casing Joint:Q345B with heat treatment or 25CrMo

3. Casing Pipe Material:Q345B

4. Size:Various sizes can be customized

5. Connection System:Bauer, Leffer and other connection systems can be customized

6. Matching Drilling Rig:Bauer, Soilmec, Mait, Casagrande, Liebherr, Sany and other international brand drilling rigs

7. Verticality: The casing verticality is no more than 2%;

Joint ellipticity is controlled within ±1mm.

8. Bolt:The casing bolt connection has German standard, Japanese standard, LEEFER (usually used for full rotation), Taiwan (heavy-duty machine) and other specifications according to customer requirements.





Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm 0Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm 1Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm 2

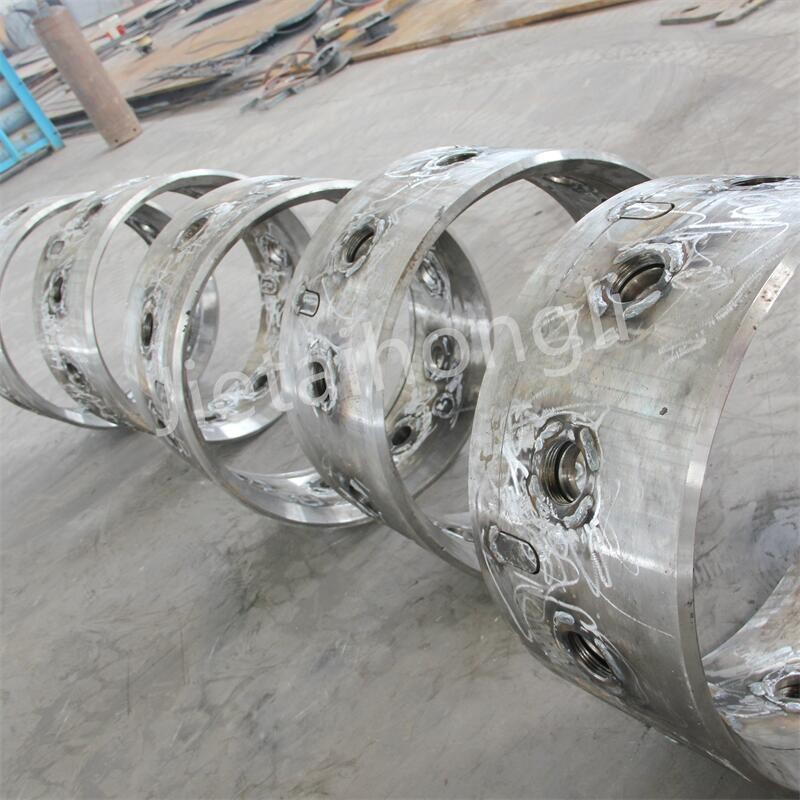

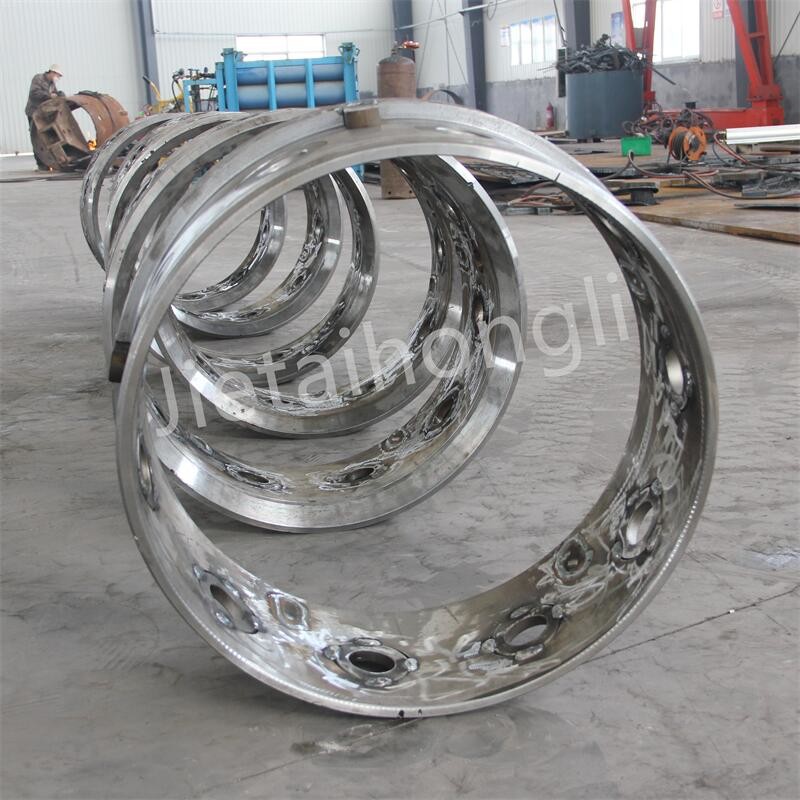

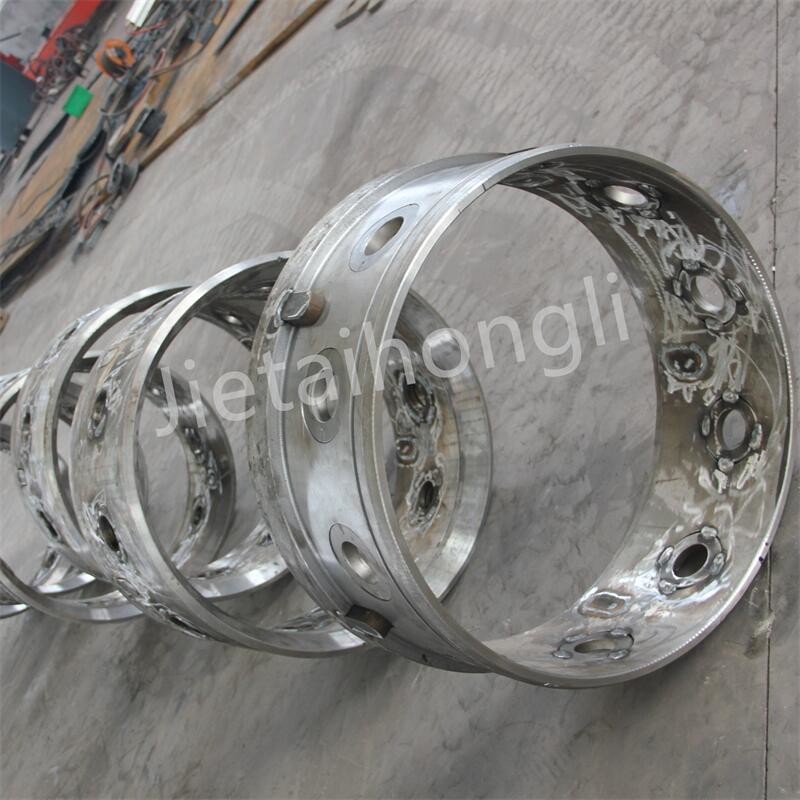

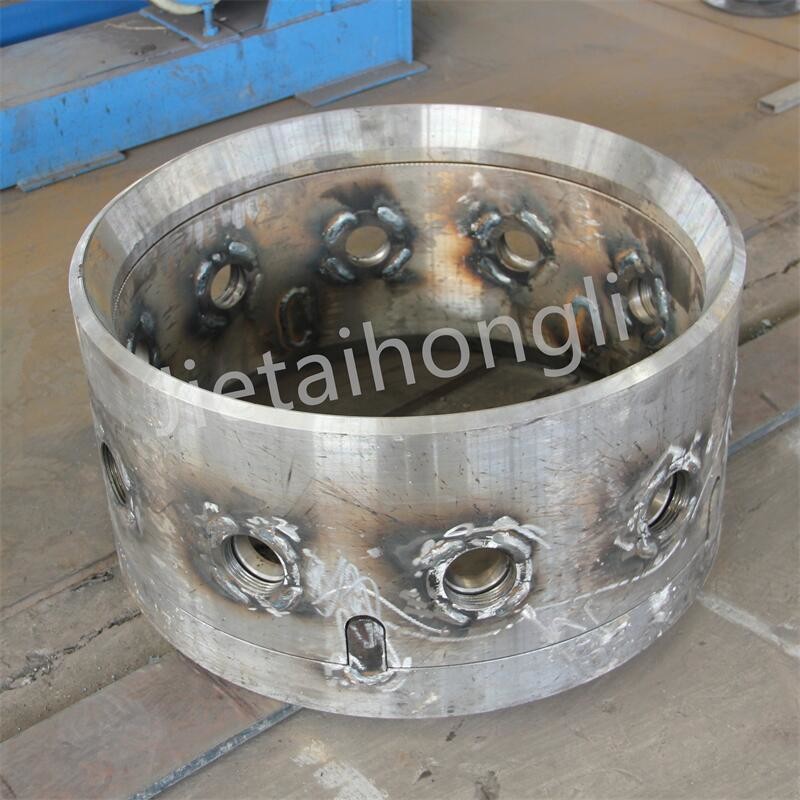

CASING JOINT

D1/D2

(mm)

H

(mm)

B

(mm)

N

(pcs)

Hole

(pcs)

Bolt type

Weight

(kg)

620/540 350 40 4 8 I 233
750/670 350 40 4 8 I 285
800/720 350 40 4 8 I 304
880/800 350 40 4 8 I 333
1000/920 350 40 4 8 I 381
1180/1100 350 40 4 8 I 438
1200/1120 350 40 4 8 I 450
1300/1220 350 40 4 8 I 483
1800/1700 480 50 4 16 I 1146
2500/2380 480 50 8 16 II 2197

Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm 3

Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm 4

Customized Double Wall 40Cr 25Crmo Casing Joint 20~60mm 5
