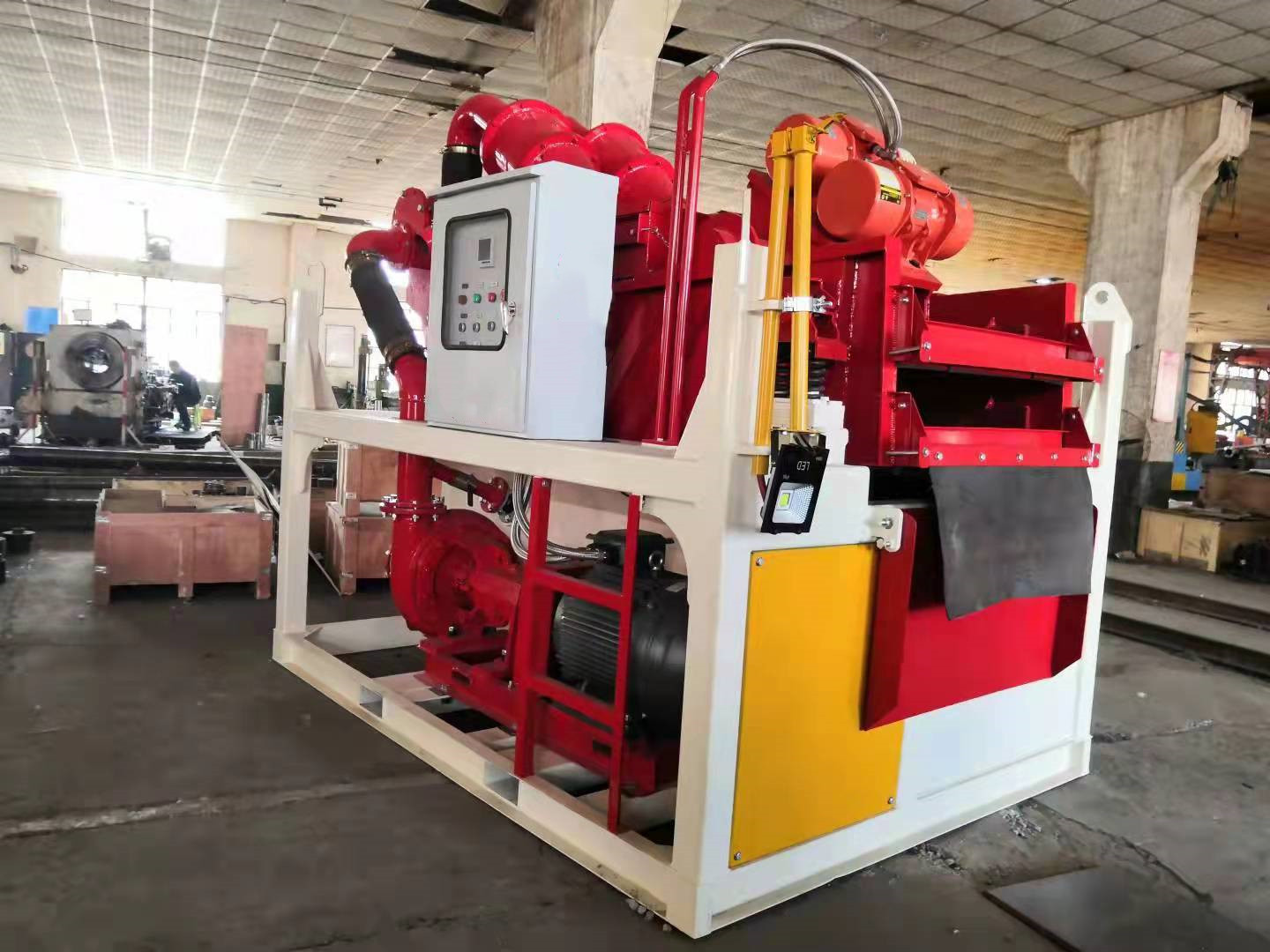

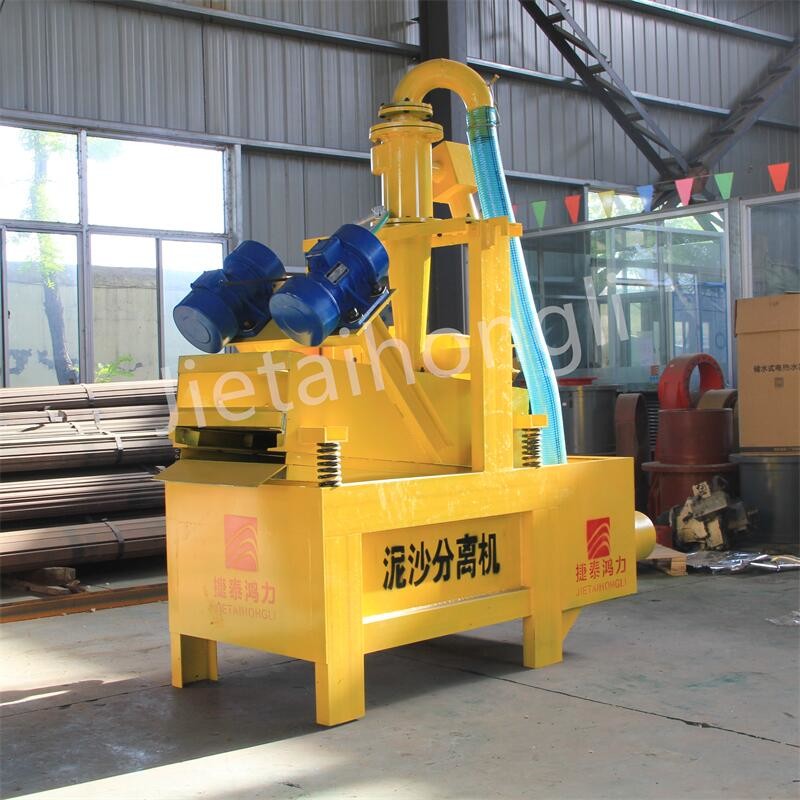

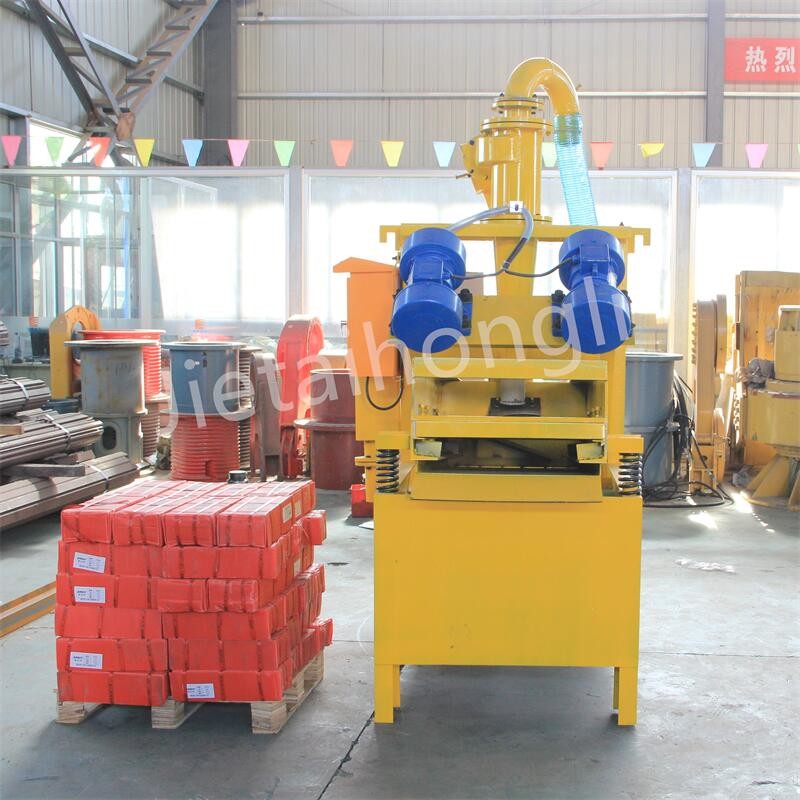

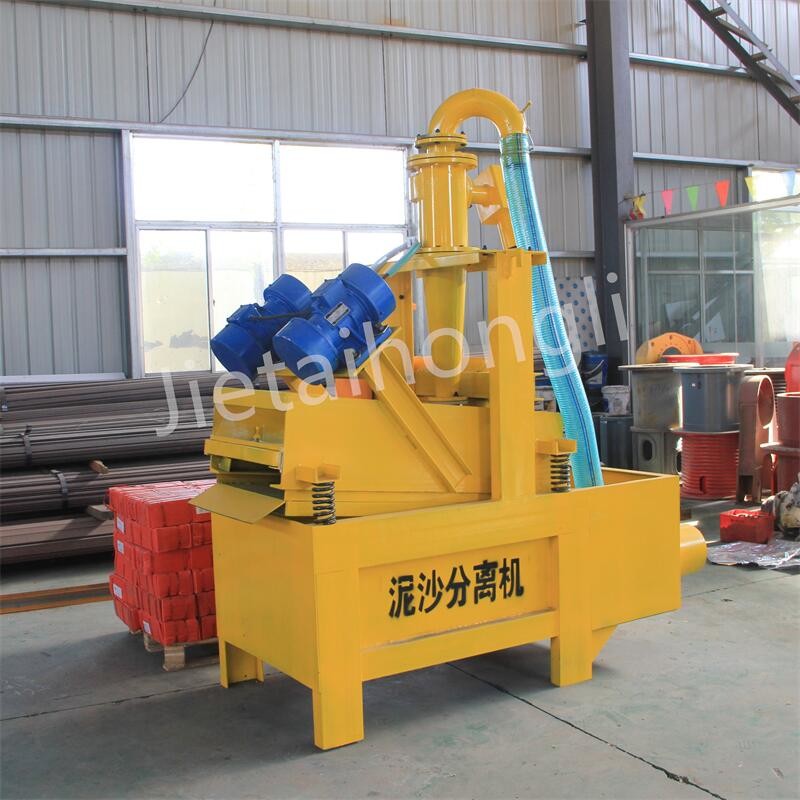

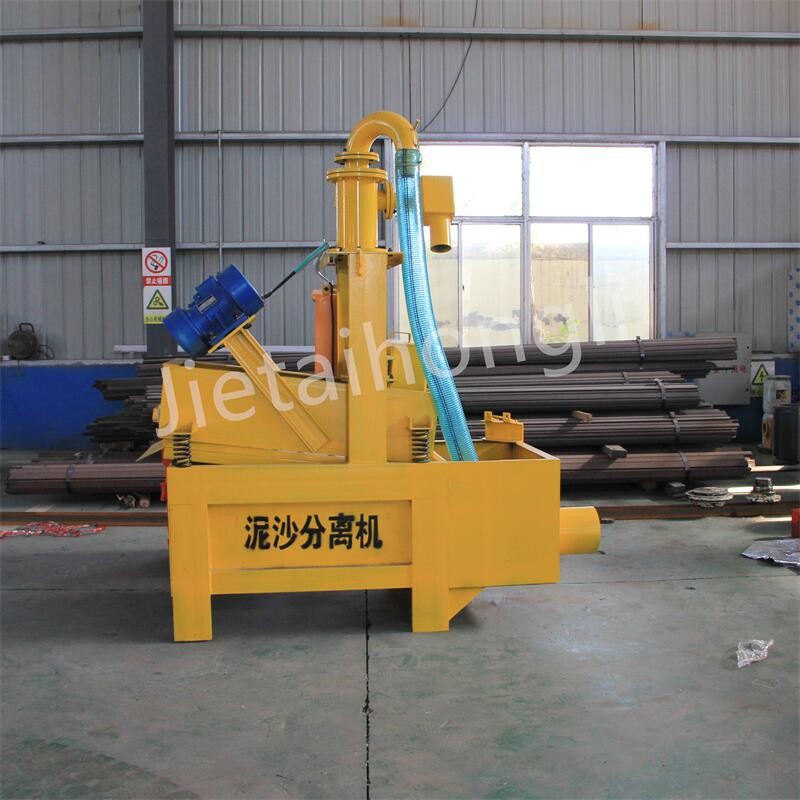

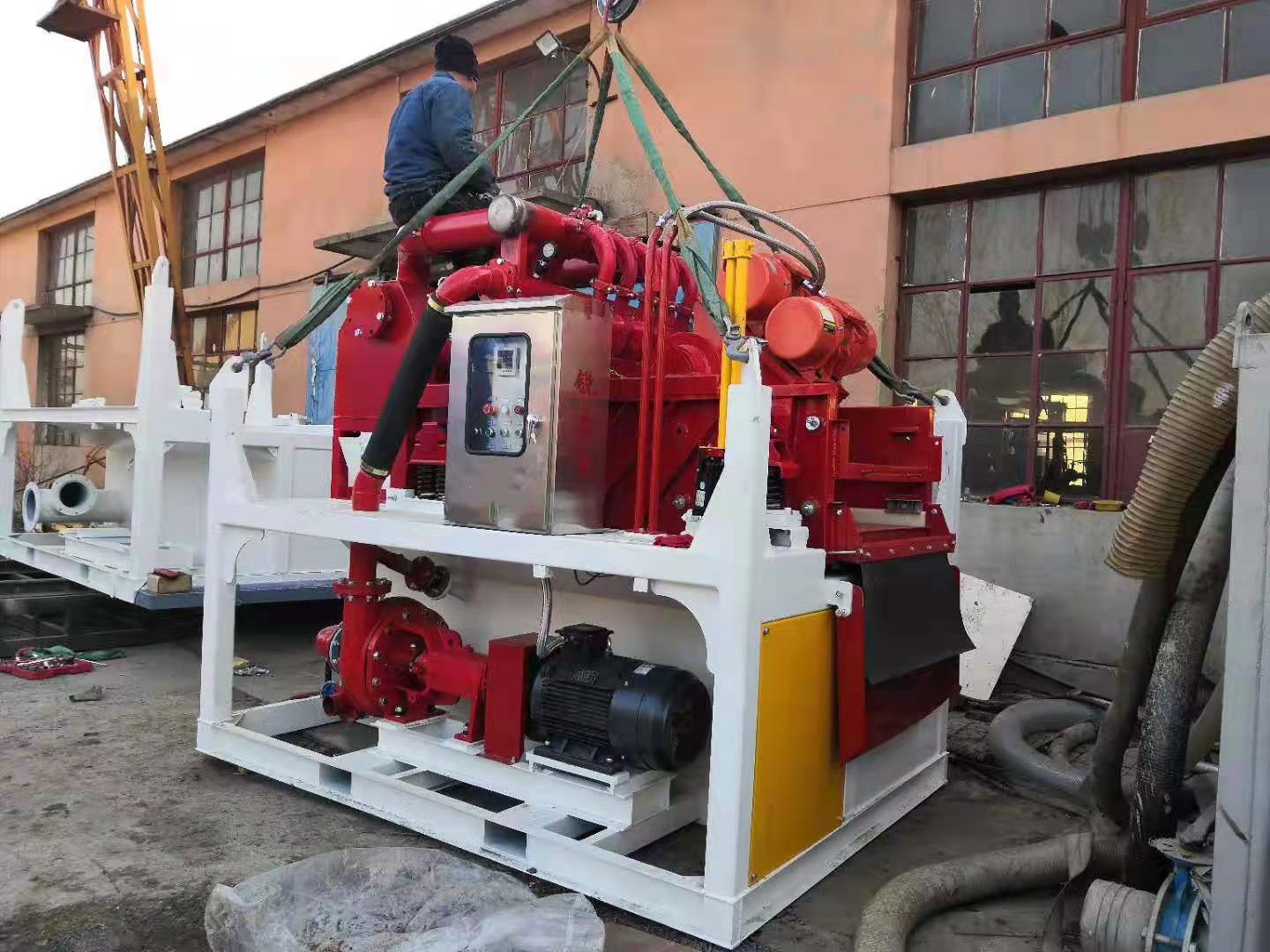

Hydrocyclone Drilling Mud Slurry Water Sand Separation Cyclone Desander
Main Applications:
* By fully purifying slurry, it is favorable to control slurry index, reduce drill sticking phenomena, and improve drilling quality.
* By thoroughly separating the slag and soil, it is favorable to enhance drilling efficiency.
* By realizing the repetition use of slurry, it can save slurry making materials and thus reduce the construction cost.
* By adopting the technique of close-cycle purification and low water content of removed slag, it is favorable to reduce environmental pollution.
DESANDER DATA
|
Model |
JT - 20/30
|
JT-50/30
|
JT- 100/30JT |
- 200/60 |
JT - 250/30 |
JT - 250/45 |
JT - 250/60 |
| Slurry feed capacity |
20m3/h
|
50m 3/h |
100m3/h |
200m3/h |
250m 3/h |
250m 3/h |
250 m 3/h |
| Cut point |
30 μm
|
50 μm |
30 μm |
60 μm |
30 μm |
45 μm |
60-20 μm |
| Soild feed capacity |
10 t/h
|
10-26t/h |
25-50t/h |
25-80t/h |
25-80 t/h |
25-80 t/h |
25-80 t/h |
| Total capacity |
9.7 kw
|
17.2kw |
24.2kw |
48 kw |
58-60.8 kw |
58-60.8 kw |
58-60.8 kw |
|
Weight |
1700kg
|
2100kg |
2700kg |
4800kg |
4900-7600kg |
4900-7600kg |
4900-7600kg |
