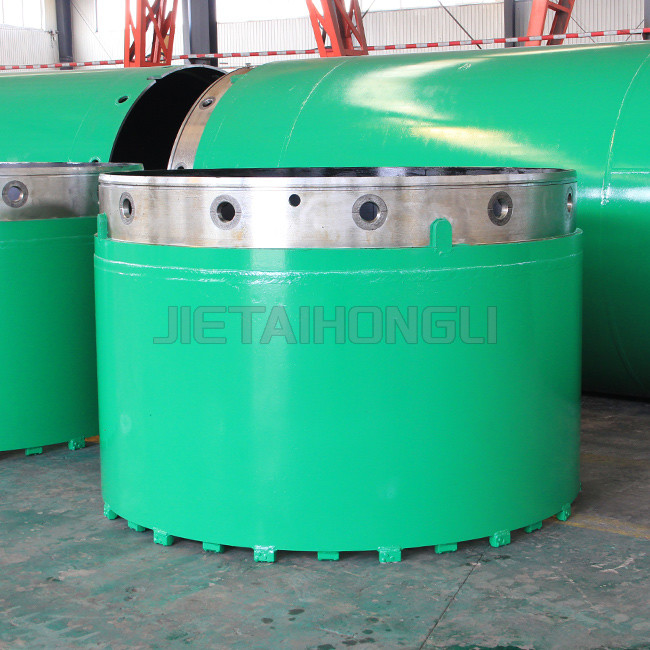

Casing Shoe Construction Equipment Parts For Piling Rig

1
MOQ
2000$~30000$/pcs
Price
Casing Shoe Construction Equipment Parts For Piling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Casing Shoes
Material: Stainless Steel
Service: OEM ODM,OEM Serivice
Name: Casing Shoe Construction Equipment Parts For Piling Rig
Highlight:

casing shoe construction equipment parts

,

piling rig construction equipment parts

,

casing shoe heavy equipment parts
Basic Infomation
Place of Origin: China
Brand Name: JTHL
Certification: ISO9001
Model Number: casing
Payment & Shipping Terms
Packaging Details: customer
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/month
Product Description

Factory Supplied Casing Shoe For Piling Rig Construction Machine



Rotary Casing Pipe is obtained by driving a steel siding into the ground in order to protect the whole drilling operation; basically, the rotary drilling tool during the working process performs inside mechanical protection made by the casing fixed into the ground.





SINGLE WALL USING PIPES TECHNICAL DATA

Diameter Length Casing Wall Thickness Casing Wall Thickness Bolt QTY
D1/D2 1m 2m 3m 4m 5m 6m T B Bolt
mm Weight(KG) Parts No. mm mm Nos
1300/1200 845 1475 2105 2735 33656 3995 20 40 12
1500/1400 1310 2220 3130 4040 4950 5860 25 50 12
1800/1700 1580 2675 3770 4865 5960 7055 25 50 16
2000/1880 2140 3355 4570 5785 7000 8215 25 60 12
2200/2080 2350 3690 5030 6370 7710 9050 25 60 12
2500/2380 2575 4100 5625 7150 8675 10200 25 60 16





DOUBLE-WALL CASING PIPES TECHNICAL DATA

Diameter Length Casing Wall Thickness-1 Casing Wall Thickness-2 Total Thickness Bolt QTY
D1/D2 1m 2m 3m 4m 5m 6m A1 A2 T2 Bolt
mm Weight(KG) Parts Number mm mm mm (Nos)
620/540 403 739 1074 1411 1747 2081 12 8 40 8
750/670 492 902 1311 1722 2131 2540 12 8 40 10
880/800 585 1069 1552 2036 2520 3005 12 8 40 10
1000/920 669 1221 1773 2328 2877 3429 12 8 40 10
1180/1100 844 1580 2316 3052 3787 4522 16 8 40 12
1200/1120 872 1620 2370 3120 3870 4620 16 8 40 12
1300/1220 933 1746 2558 3372 4184 4996 16 8 40 12
1500/1400 1433 2628 3817 5009 6210 7393 20 10 50 12
1800/1700 1730 3166 4602 6038 7474 8910 20 10 50 16
2000/1880 2450 4280 6110 7940 9770 11600 20 15 60 12
2200/2080 2700 4720 6740 8760 10780 12800 20 15 60 12
2500/2380 2960 5240 7520 9800 12080 14360 20 15 60 16


product details

Casing Shoe Construction Equipment Parts For Piling Rig 0Casing Shoe Construction Equipment Parts For Piling Rig 1

Casing Shoe Construction Equipment Parts For Piling Rig 2

about us

Casing Shoe Construction Equipment Parts For Piling Rig 3

Exhibition



Casing Shoe Construction Equipment Parts For Piling Rig 4

Casing Shoe Construction Equipment Parts For Piling Rig 5

Packaging and Shipping



Casing Shoe Construction Equipment Parts For Piling Rig 6Casing Shoe Construction Equipment Parts For Piling Rig 7

Construction Site



Casing Shoe Construction Equipment Parts For Piling Rig 8

name card
