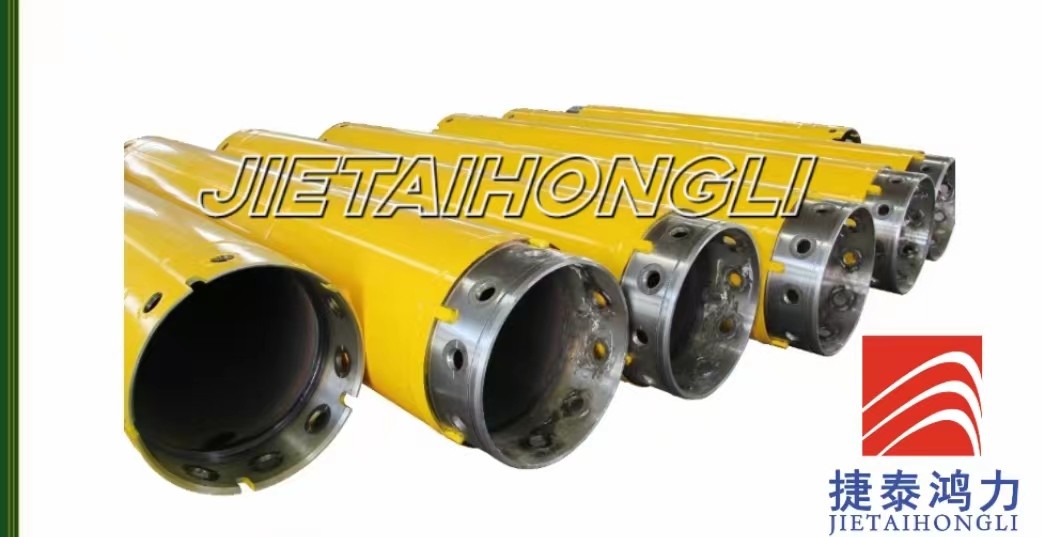

Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm

1
MOQ
2000$~30000$/pcs
Price
Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel
Service: OEM ODM,OEM Serivice
Name: Casing Series Shoe Adapter Driver Piling Rig Parts Construction Machine
Keyword: Piling Rig Machine Parts
Application: All The Construction Sites
Dimensions: 260mm-300mm
Packing Details: Nake Packaged
Highlight:

bored pile foundation casing pipe

,

260mm casing pipe
Basic Infomation
Place of Origin: China
Brand Name: JTHL
Certification: ISO9001
Model Number: casing
Payment & Shipping Terms
Packaging Details: naked packaged
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/month
Product Description



Foundation Drilling Tools Casing Series Double Wall Casing Driver Adaptor



   Drilling Casing Items adopt the high-carbon steel (Q345B, 16Mn, Q195-Q345, etc.) and special welding method to keep the drilling strength and efficiency.





Diameter Length Casing Wall Thickness Casing Wall Thickness Bolt QTY
D1/D2 1m 2m 3m 4m 5m 6m T B Bolt
mm Weight(KG) Parts No. mm mm Nos
1300/1200 845 1475 2105 2735 33656 3995 20 40 12
1500/1400 1310 2220 3130 4040 4950 5860 25 50 12
1800/1700 1580 2675 3770 4865 5960 7055 25 50 16
2000/1880 2140 3355 4570 5785 7000 8215 25 60 12
2200/2080 2350 3690 5030 6370 7710 9050 25 60 12
2500/2380 2575 4100 5625 7150 8675 10200 25 60 16





Diameter Length Casing Wall Thickness-1 Casing Wall Thickness-2 Total Thickness Bolt QTY
D1/D2 1m 2m 3m 4m 5m 6m A1 A2 T2 Bolt
mm Weight(KG) Parts Number mm mm mm (Nos)
620/540 403 739 1074 1411 1747 2081 12 8 40 8
750/670 492 902 1311 1722 2131 2540 12 8 40 10
880/800 585 1069 1552 2036 2520 3005 12 8 40 10
1000/920 669 1221 1773 2328 2877 3429 12 8 40 10
1180/1100 844 1580 2316 3052 3787 4522 16 8 40 12
1200/1120 872 1620 2370 3120 3870 4620 16 8 40 12
1300/1220 933 1746 2558 3372 4184 4996 16 8 40 12
1500/1400 1433 2628 3817 5009 6210 7393 20 10 50 12
1800/1700 1730 3166 4602 6038 7474 8910 20 10 50 16
2000/1880 2450 4280 6110 7940 9770 11600 20 15 60 12
2200/2080 2700 4720 6740 8760 10780 12800 20 15 60 12
2500/2380 2960 5240 7520 9800 12080 14360 20 15 60 16


Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 0Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 1

Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 2

Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 3Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 4Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 5Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 6Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 7Bored Pile Foundation Casing Pipe Double Wall / Single Wall Drilling Rotary 260mm 8
