600/680 1000/1080 1500/1580 1800/1900 double wall casing single wall casing Bauer BG36 Soilmec SR60 SANY SR405

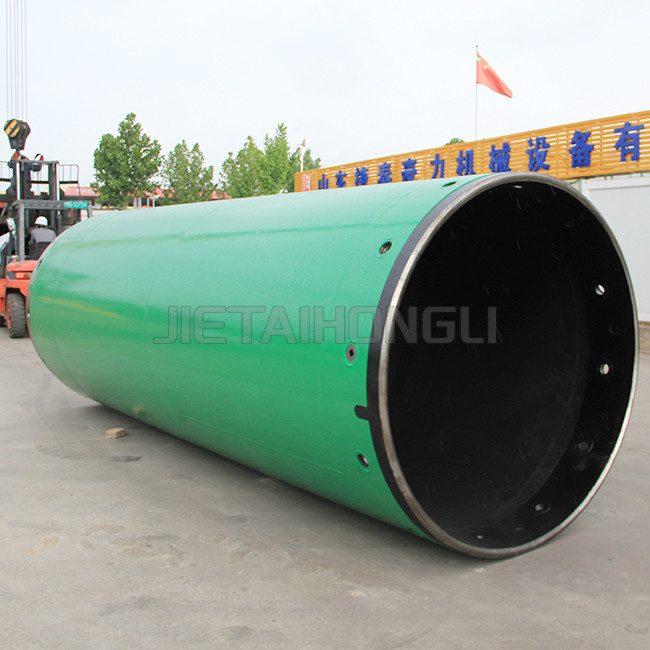

The Drilling Rotary Casing Pipe is obtained by driving a steel soding into the ground in order to protect the whole drilling operation; basically the rotary drilling tool during the working process, performs inside a mechanical protection made by the casing fixed into the ground.
Double wall rotary casings pipe can be used universally, as they are designed especially for transmitting high rotational and vertical forces as created by the rig rotary drives or oscillations .
The use of double walled casings ensures a flush drill string.
Single wall rotary casings pipe can be used for applications where weight reduction is important.
Drilling Diameter Range: 620~2500mm
Wall thickness: 20~60mm
| Length of Tube | 1-6m |
| Supplier | Factory |
| Manufacture Process | Forged |
| Material | Q355B |
| Thickness | 16mm / 20mm / 30mm |
